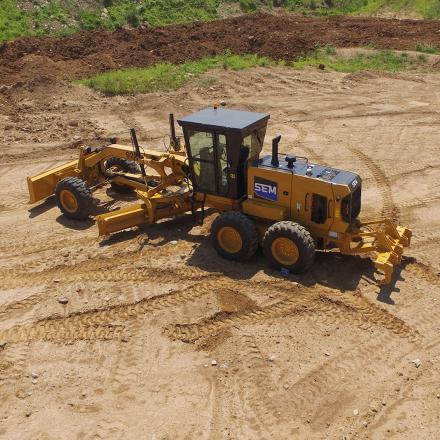

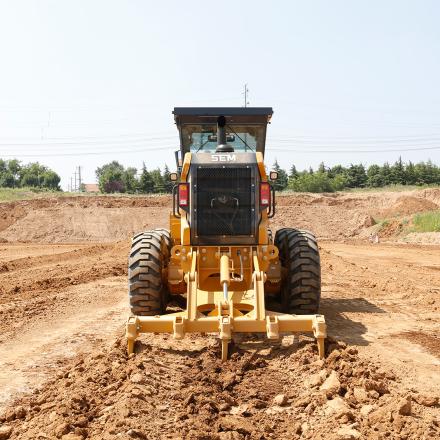

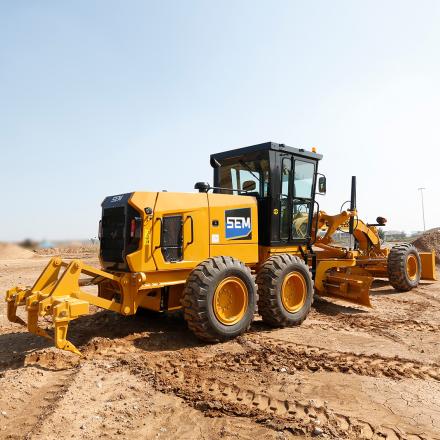

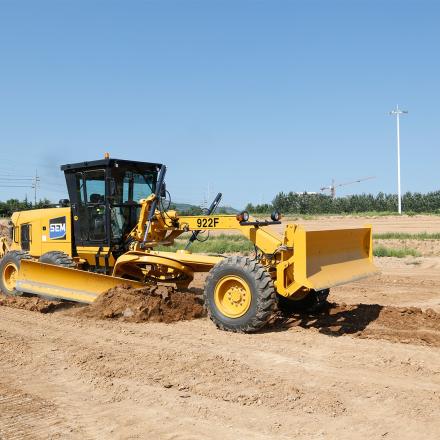

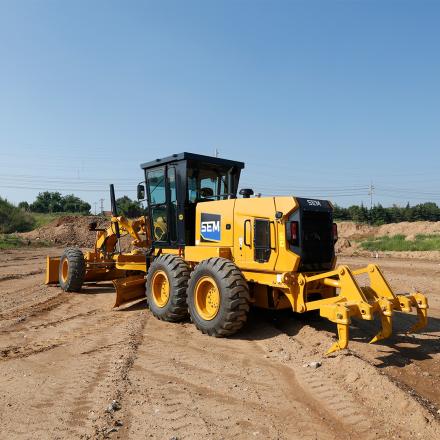

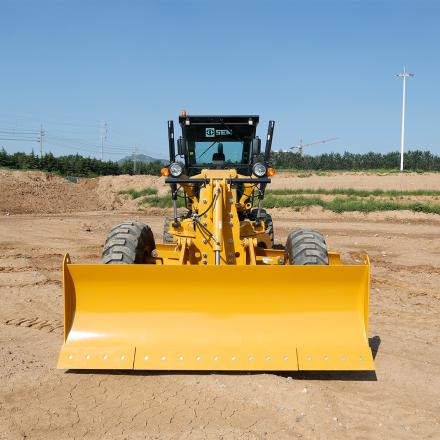

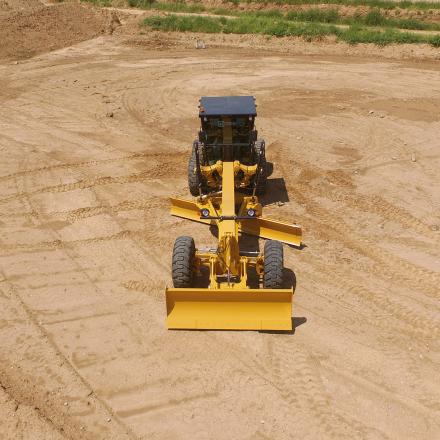

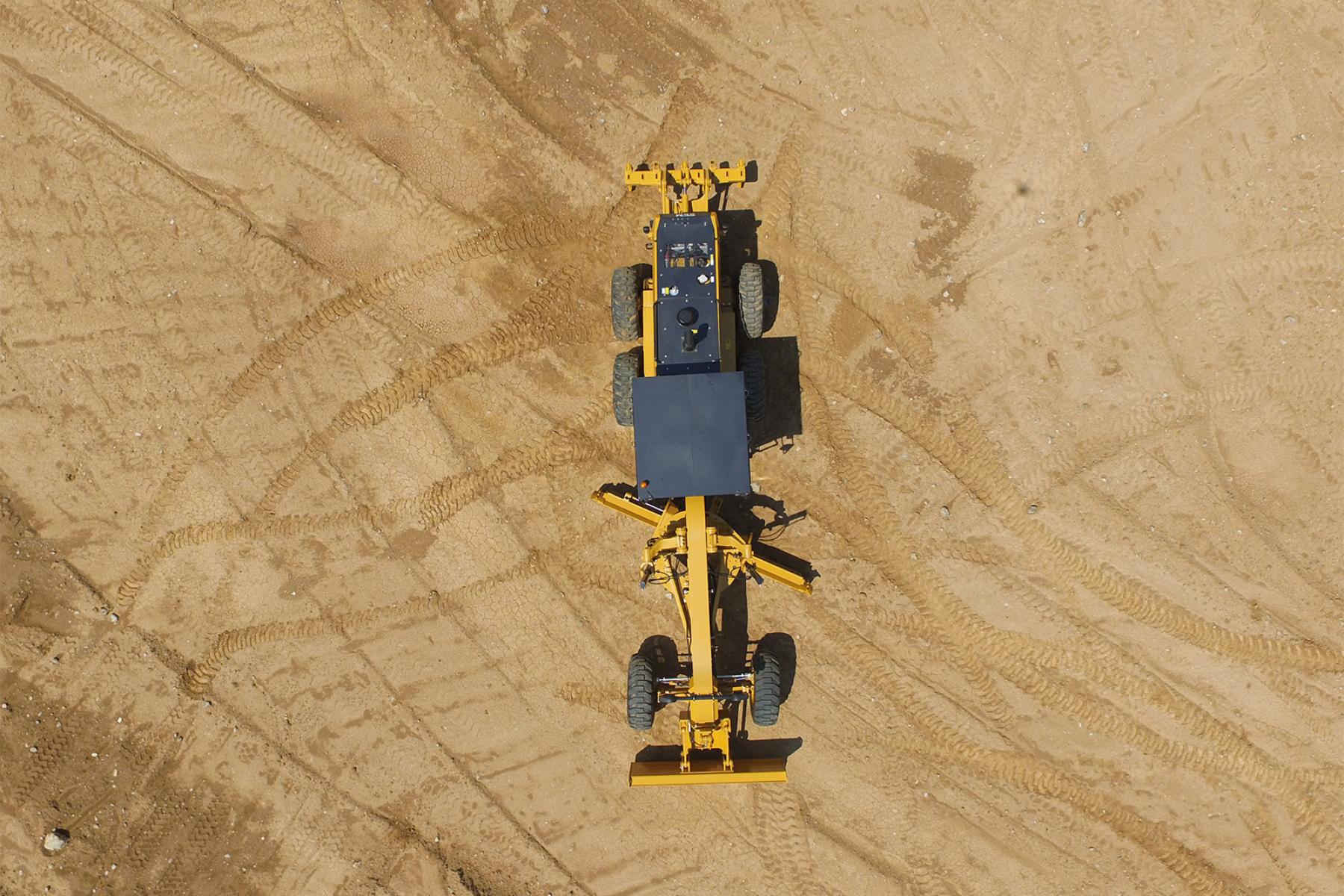

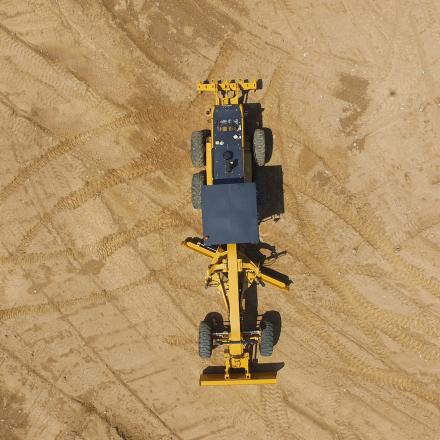

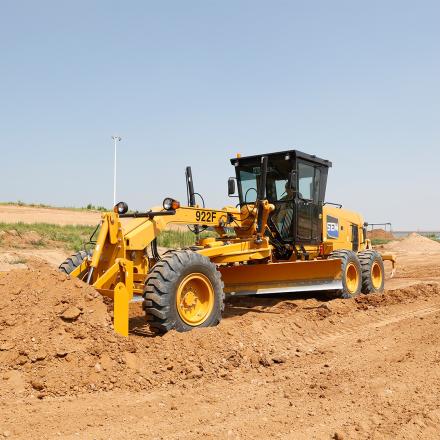

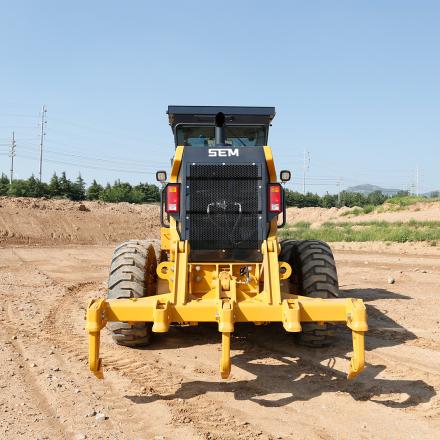

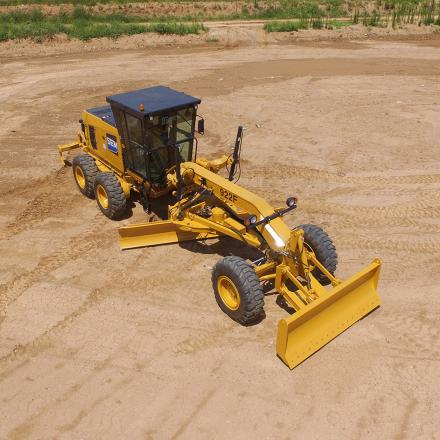

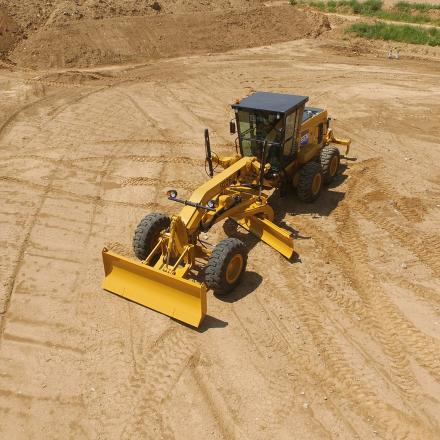

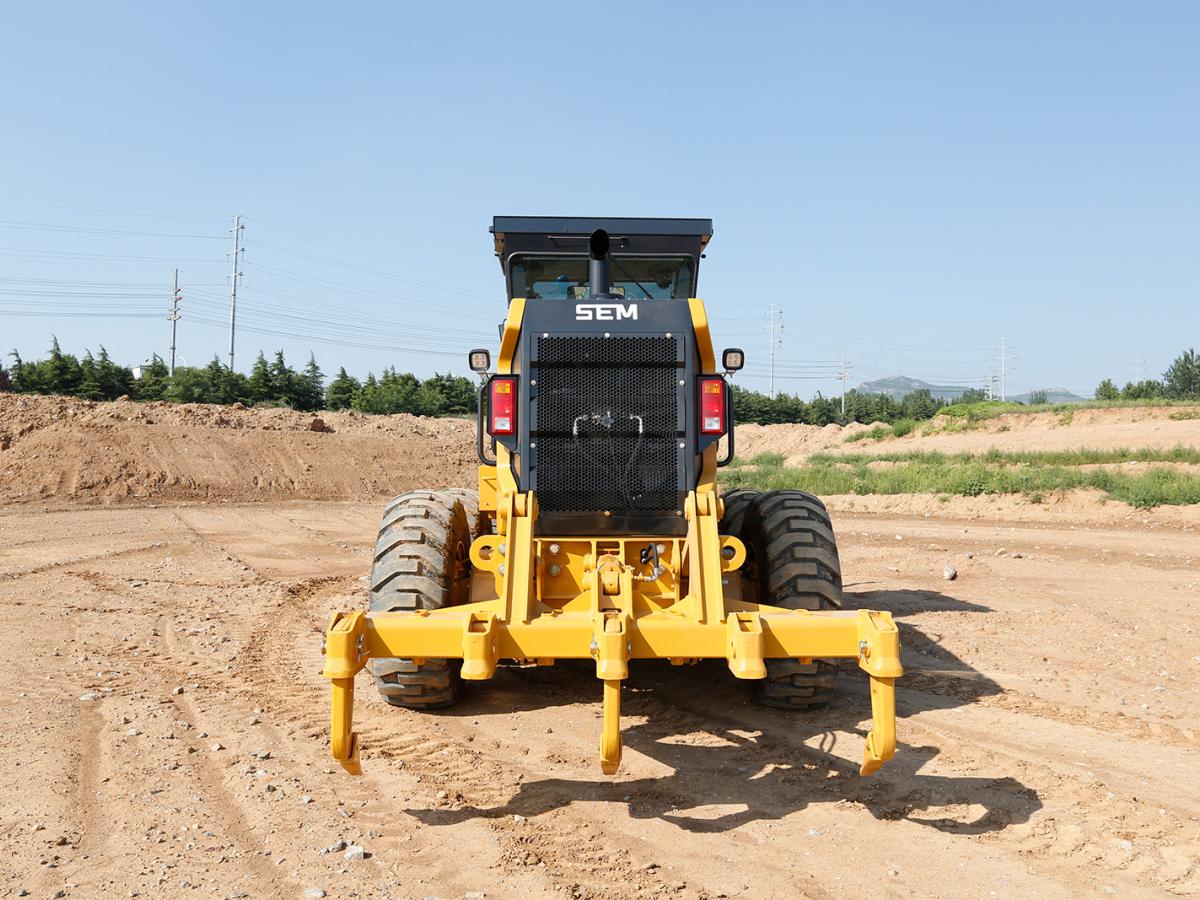

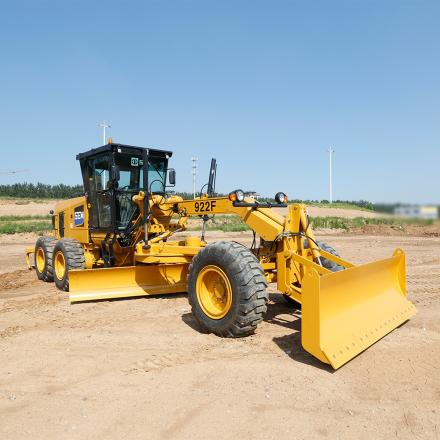

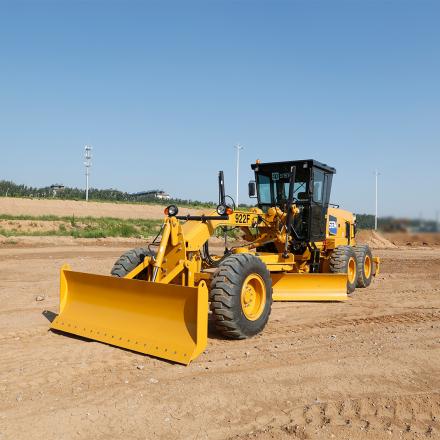

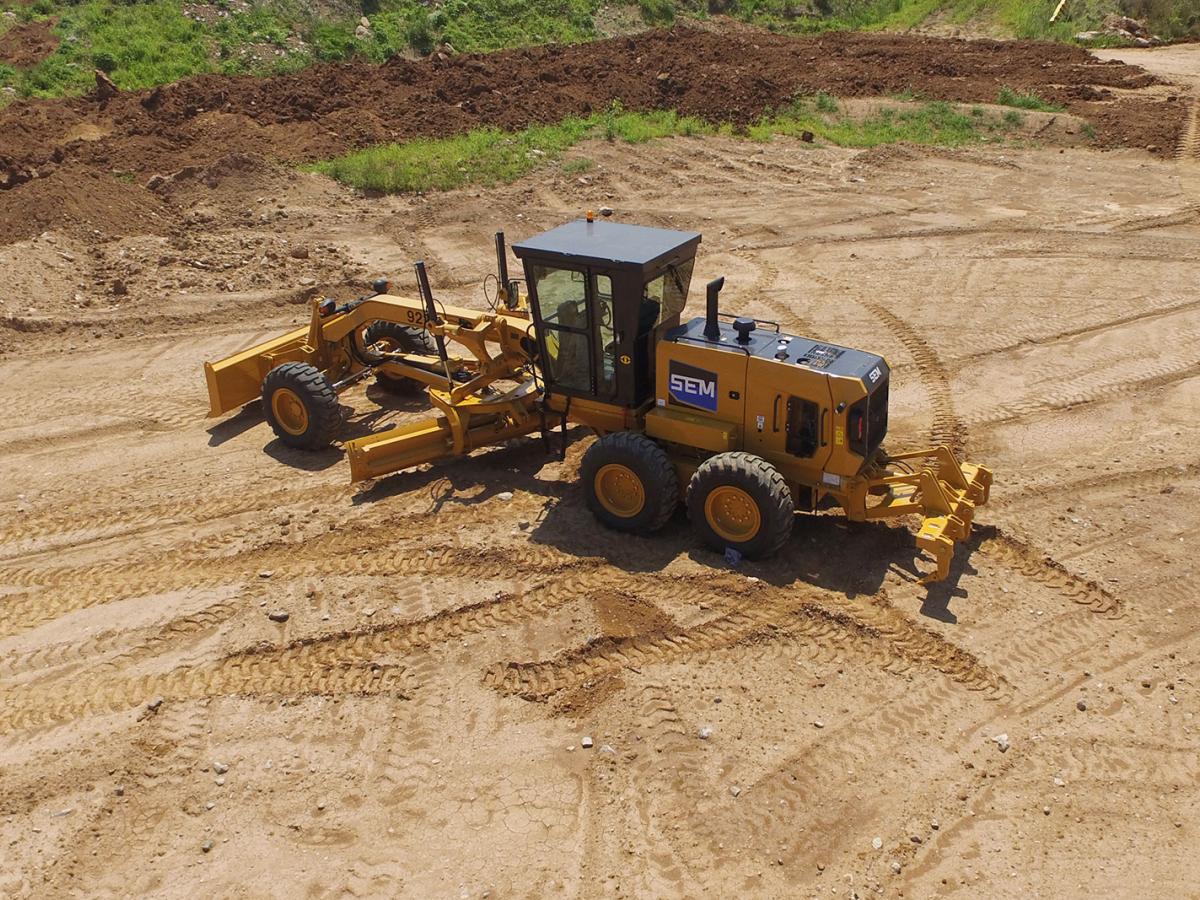

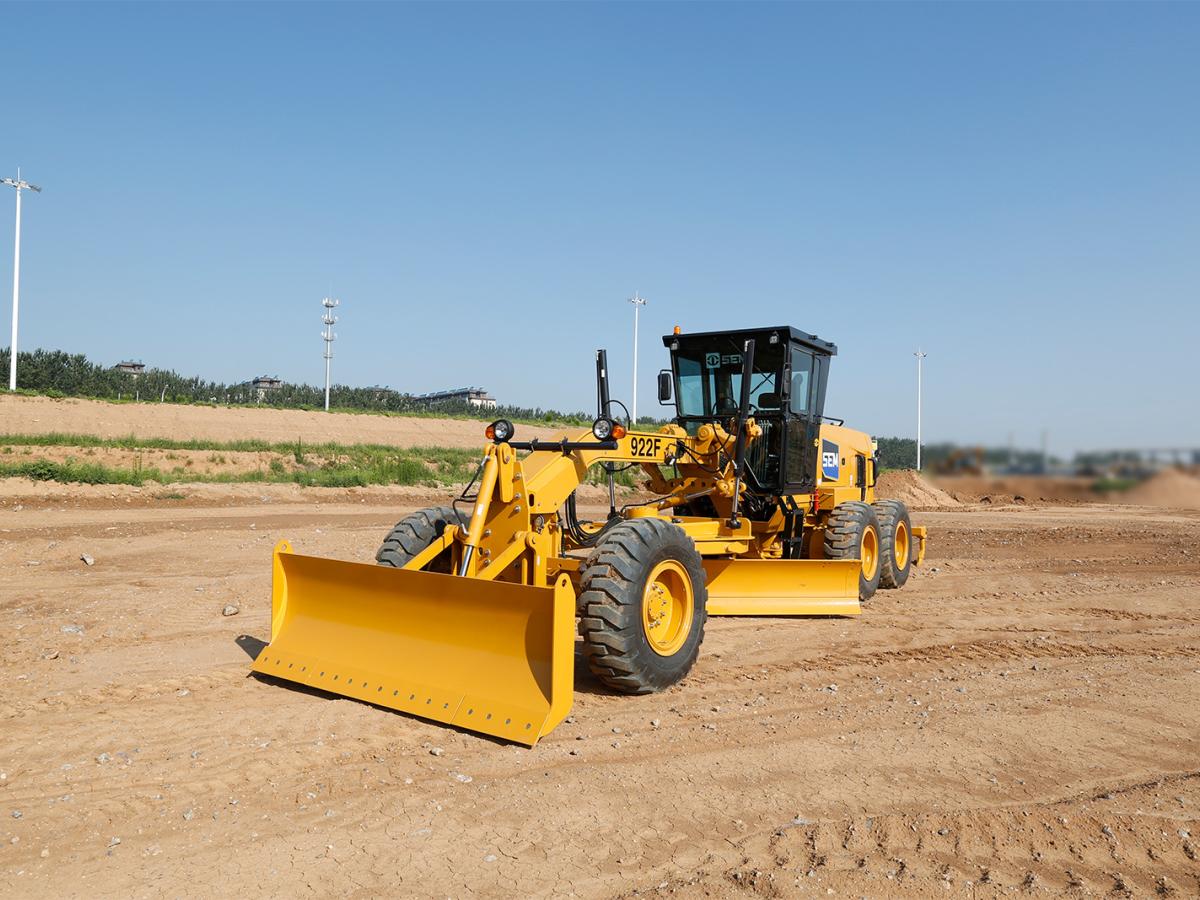

SEM^™ 922F

Key Information

Category Motor graders

Operating Weight 16,640 kg

Minimum turning radius 7,800 mm

Wheelbase 6,140 mm

Request a Quote

Overview
Specifications

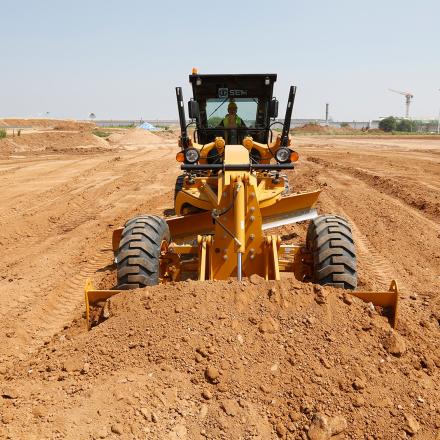

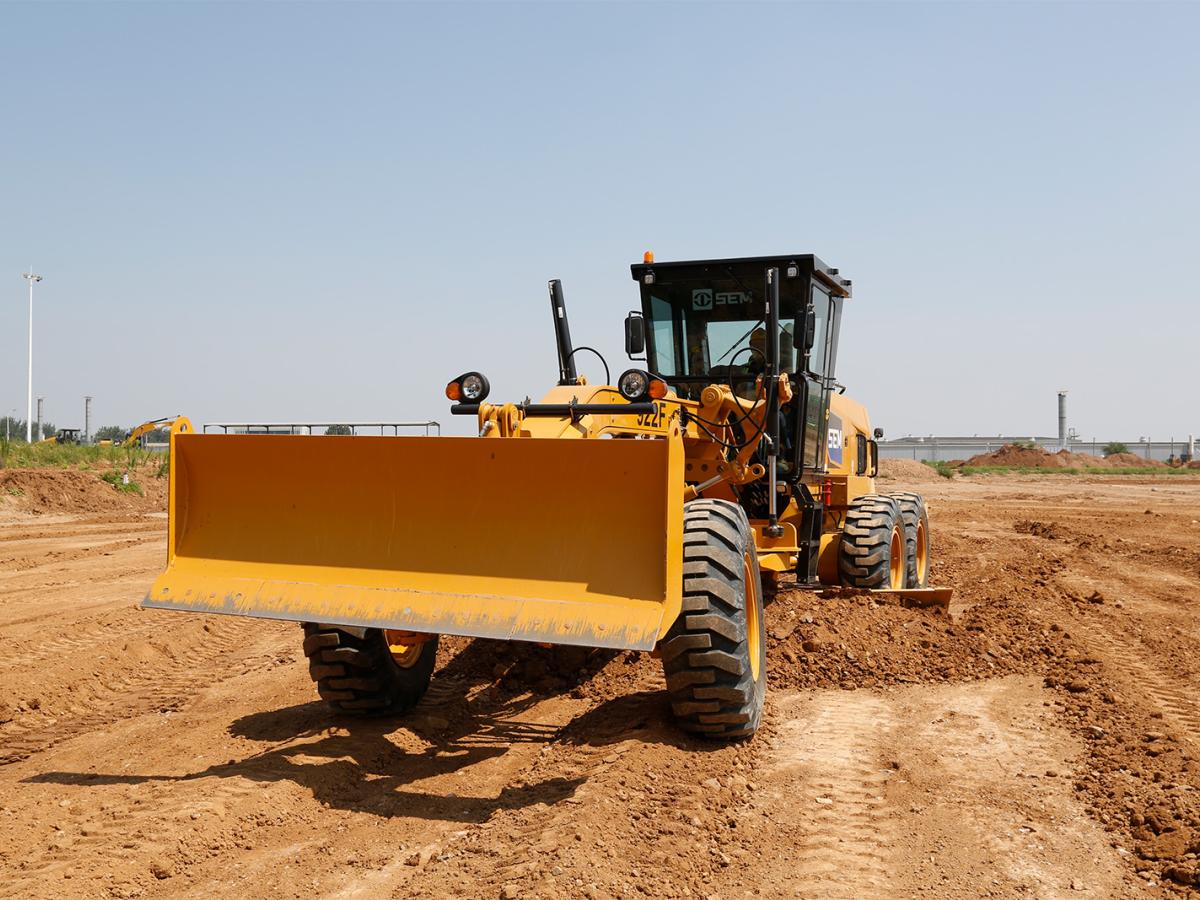

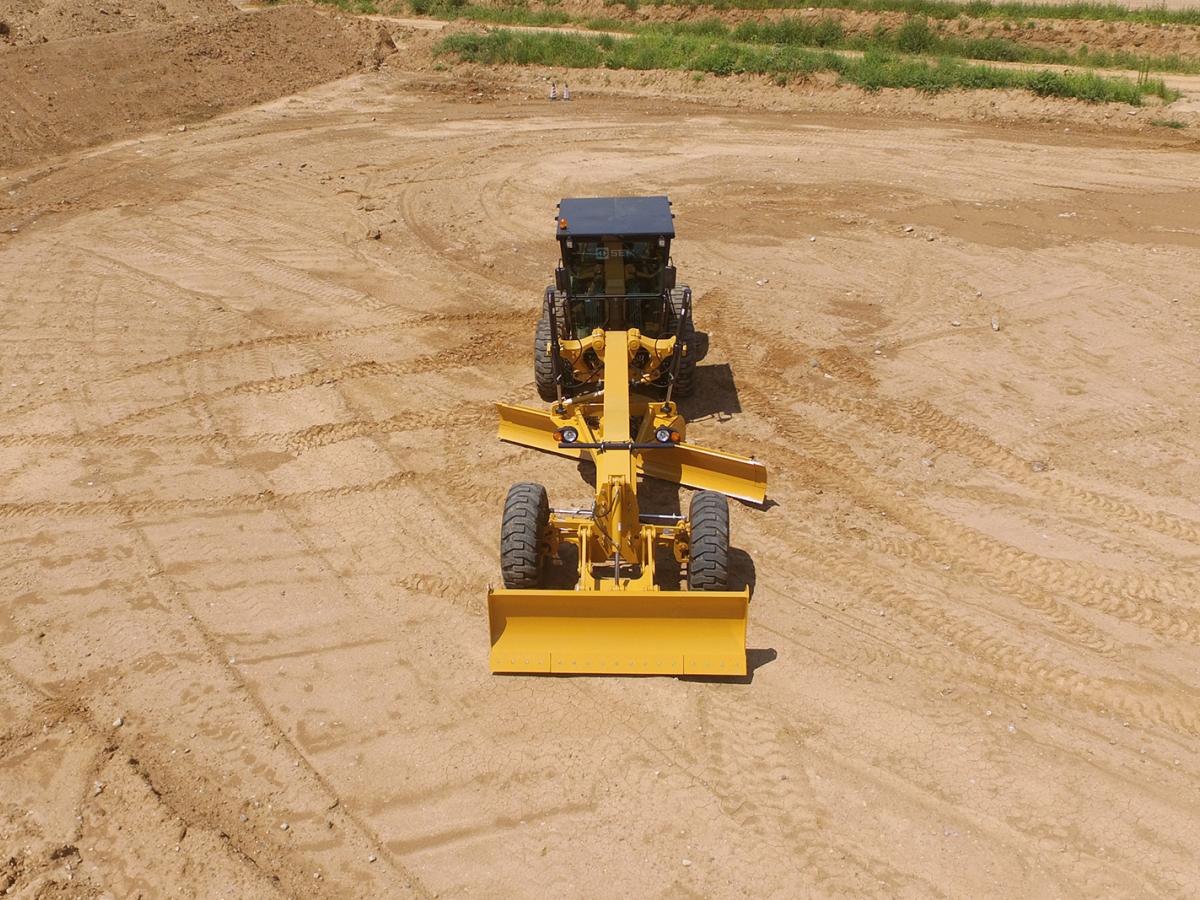

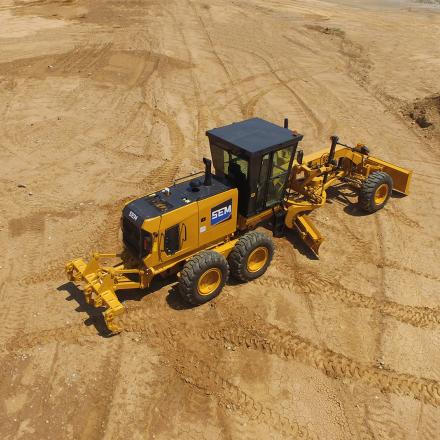

Media Gallery
Quote

Key Features

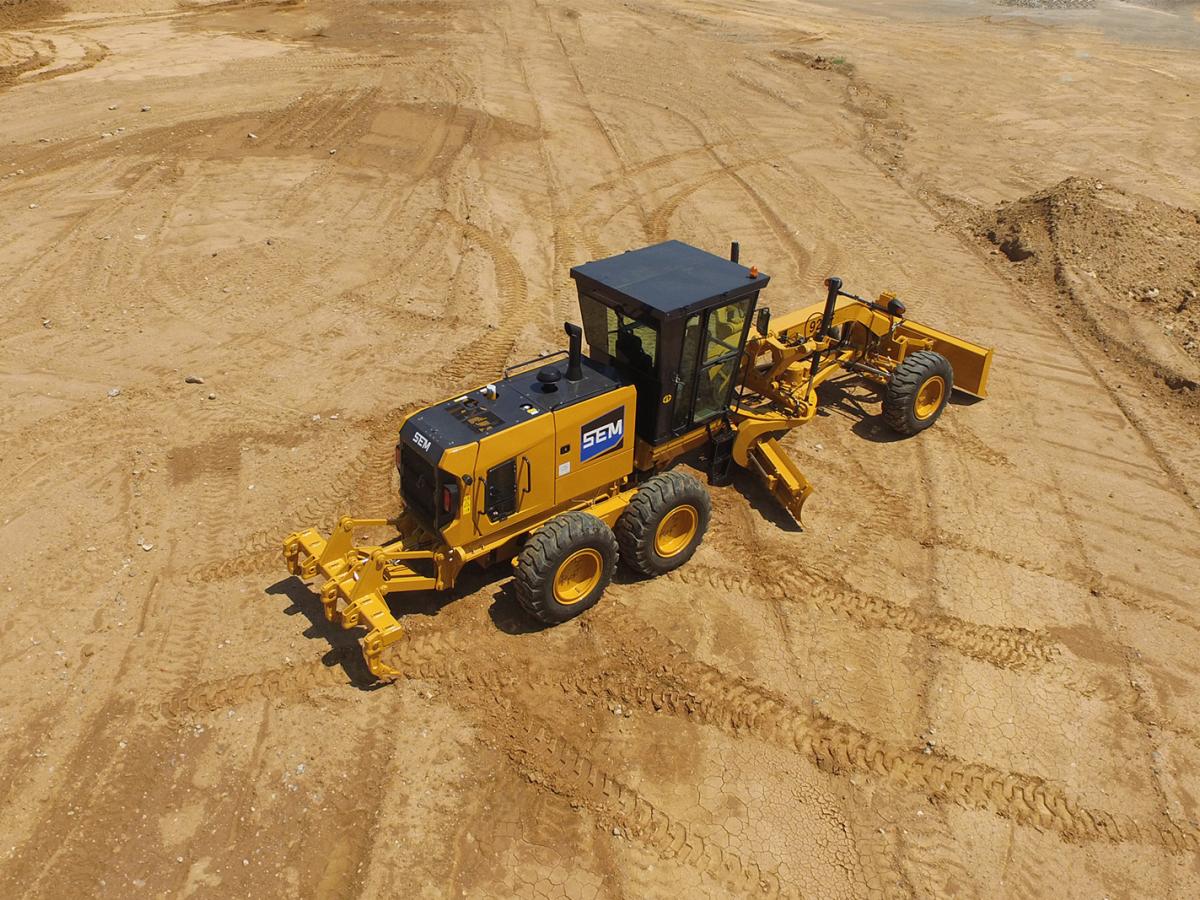

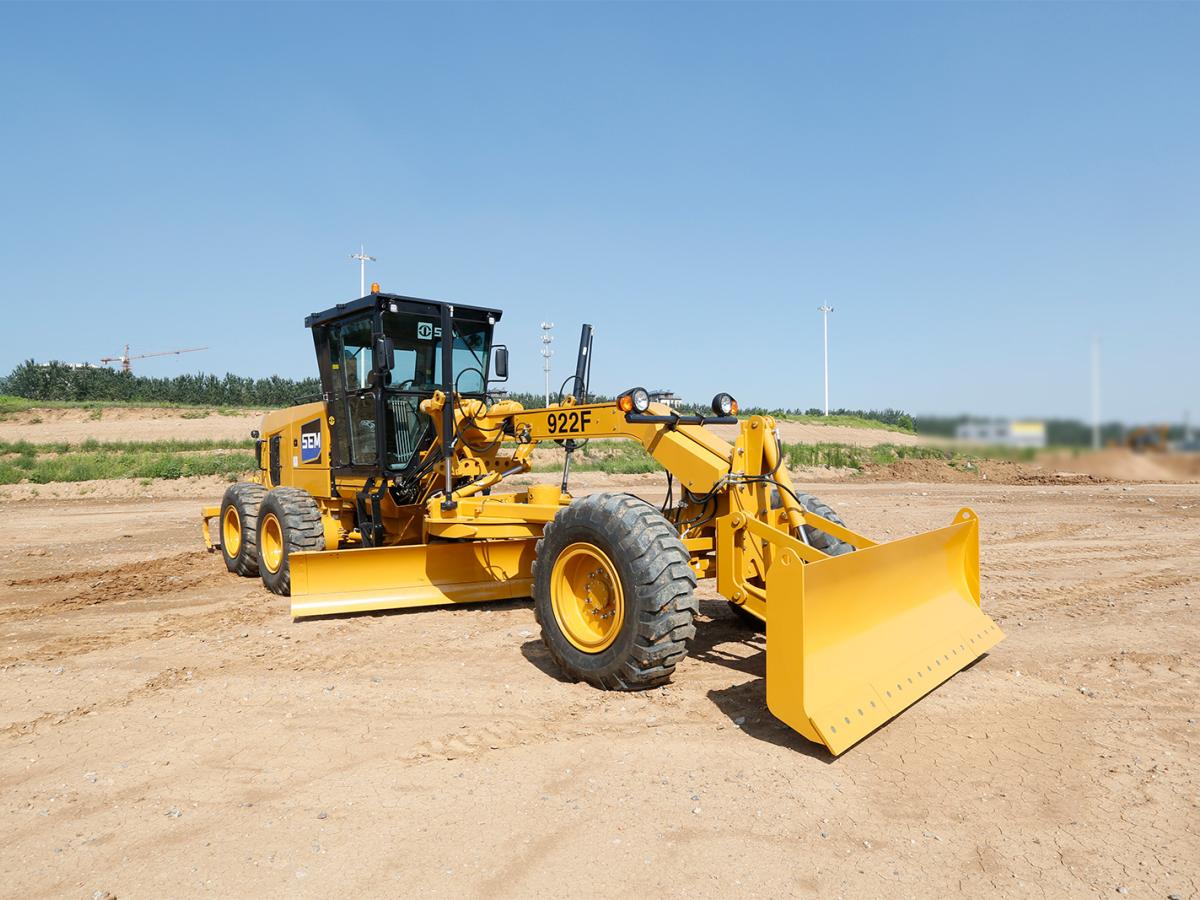

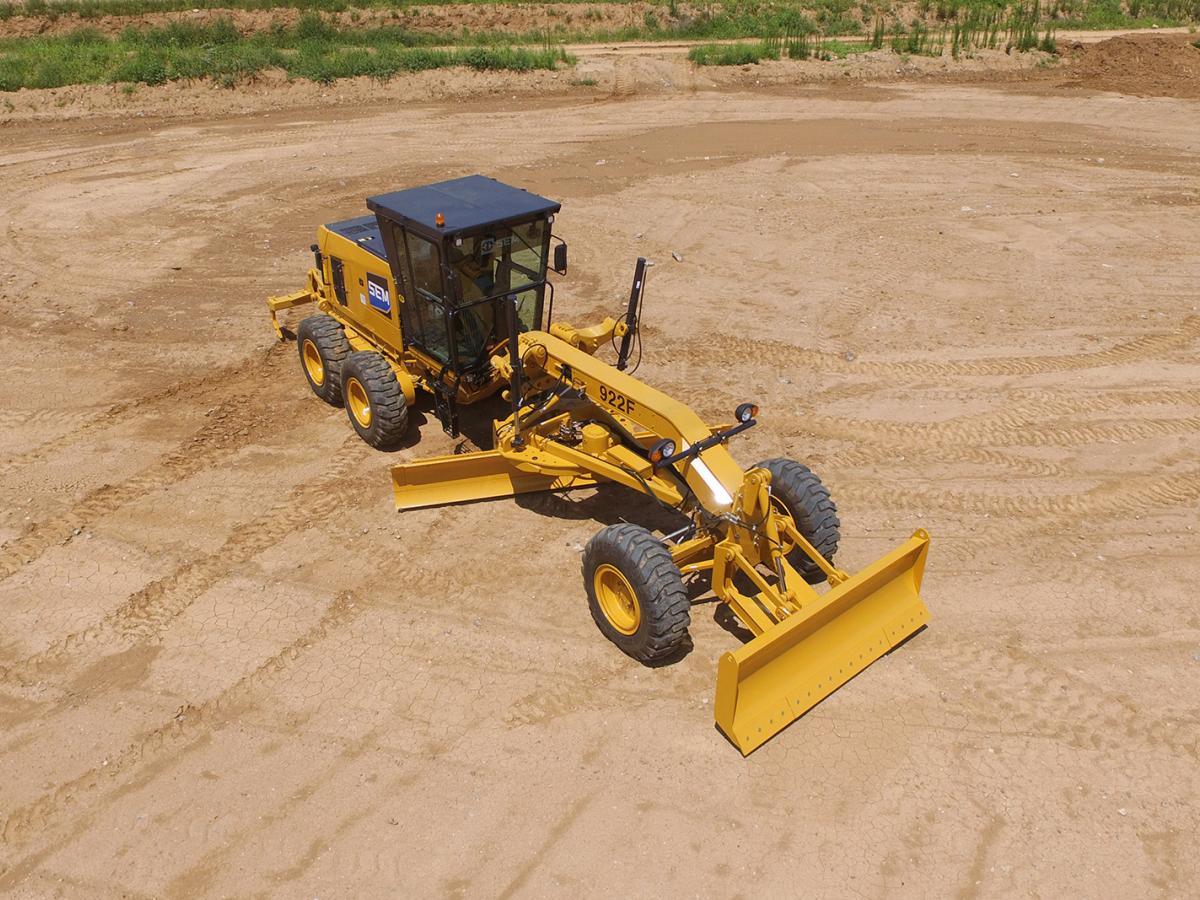

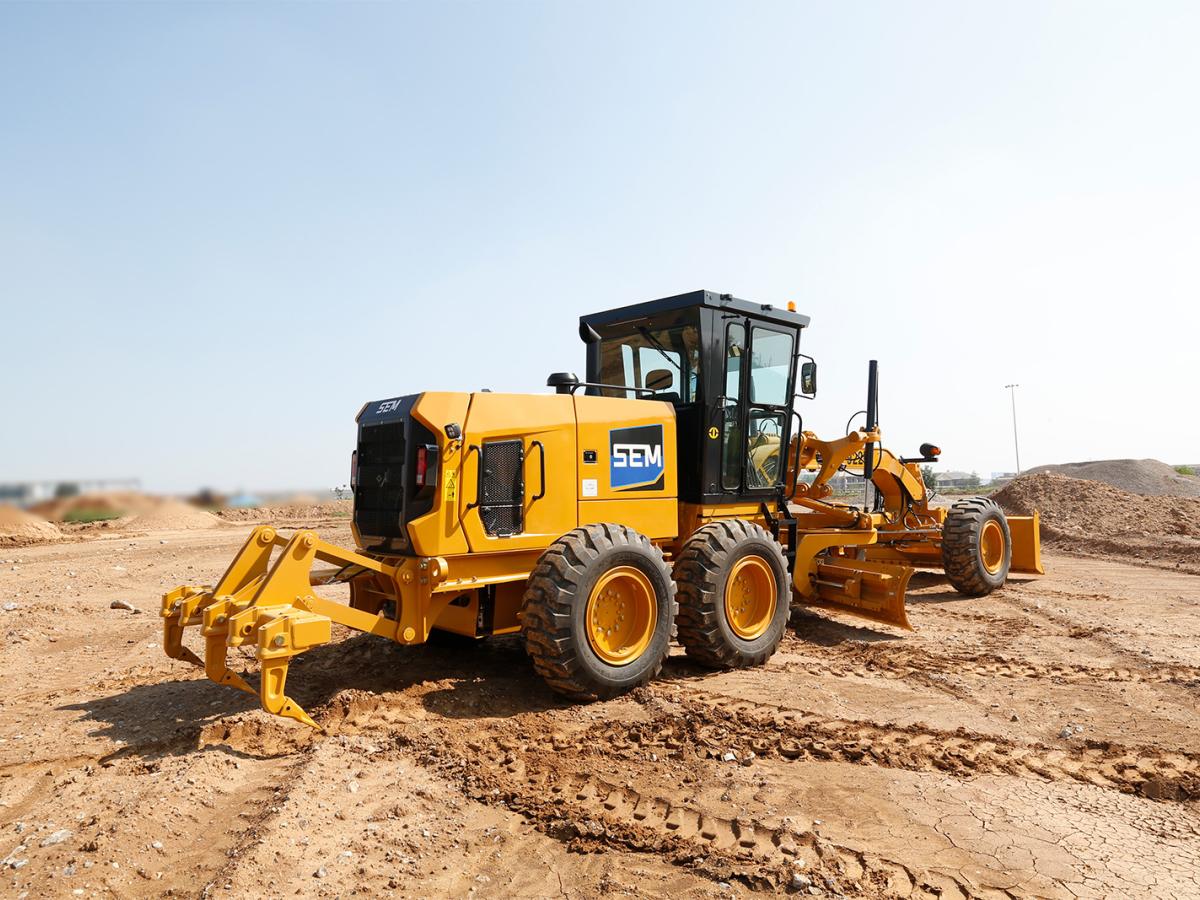

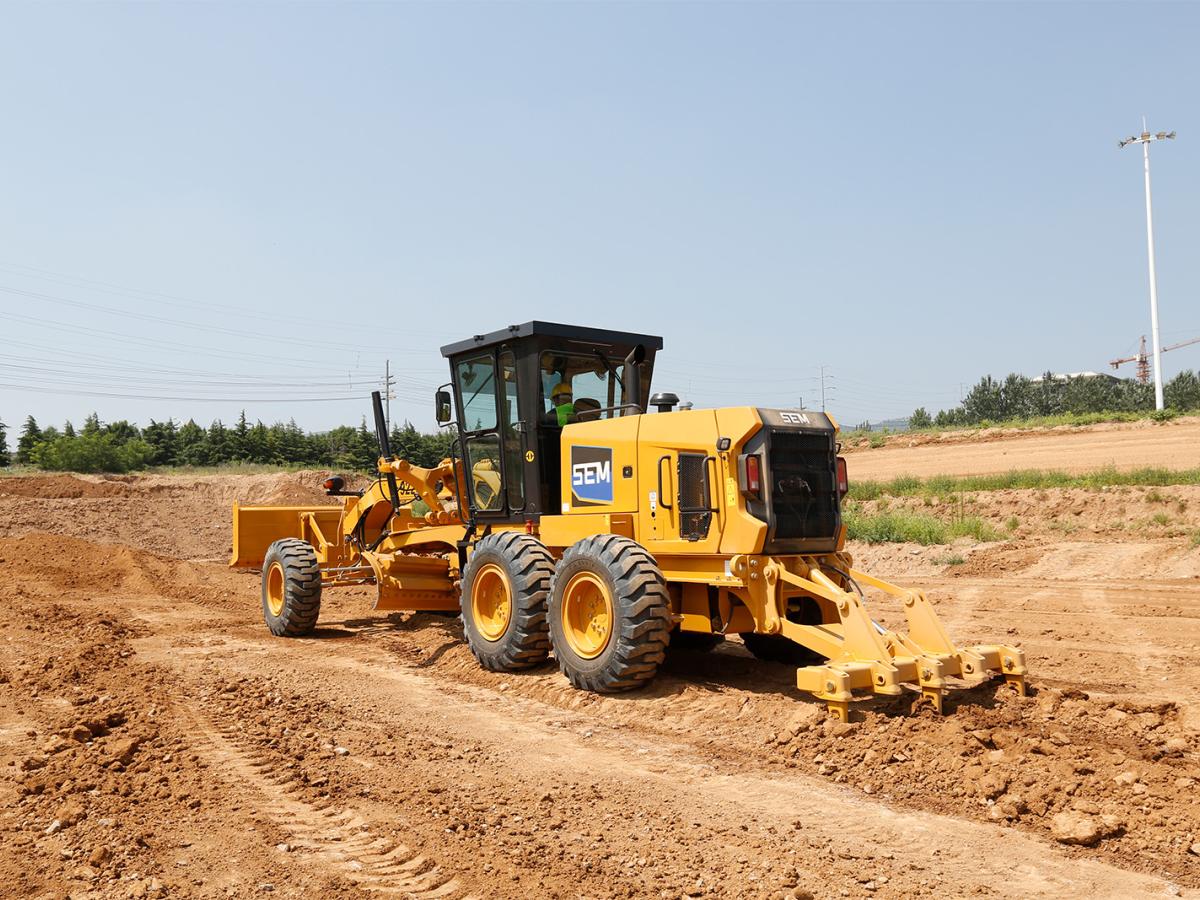

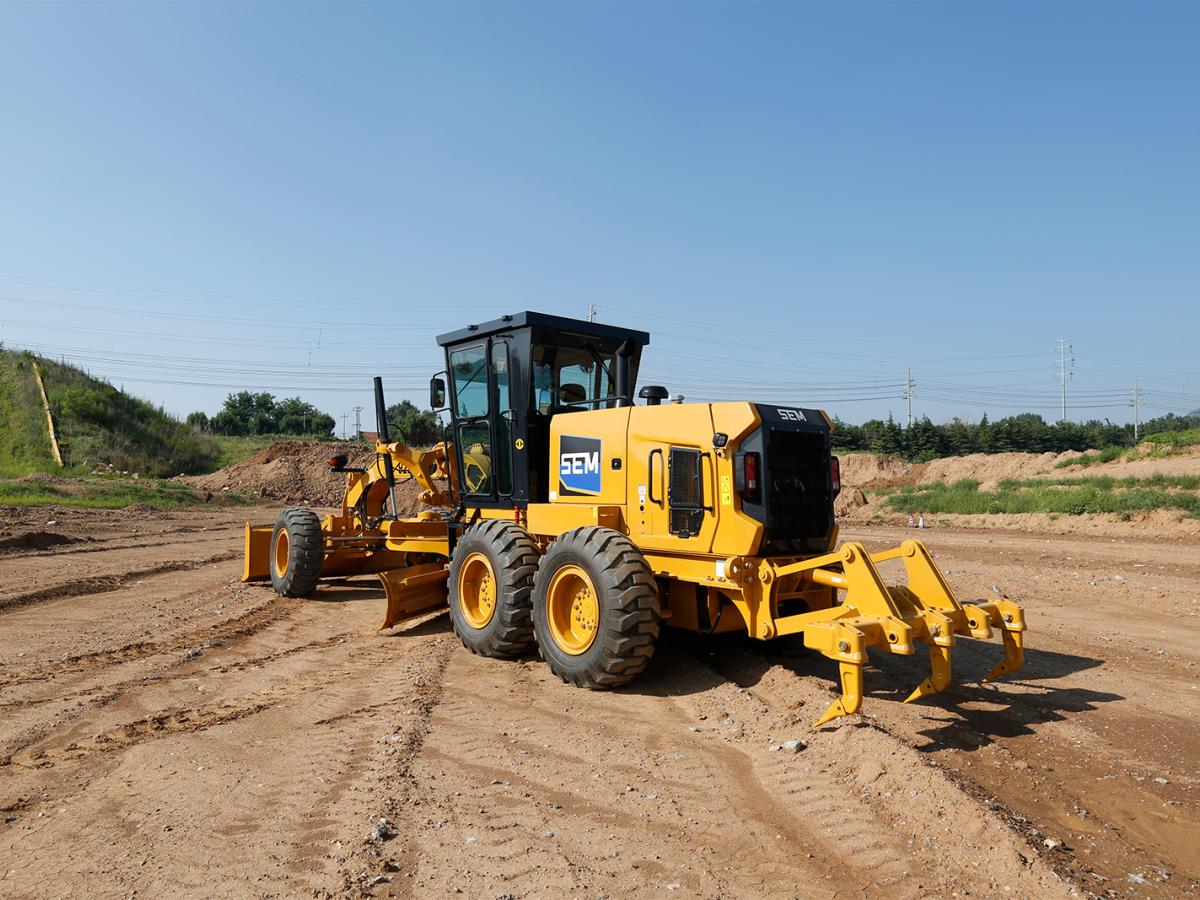

Overview

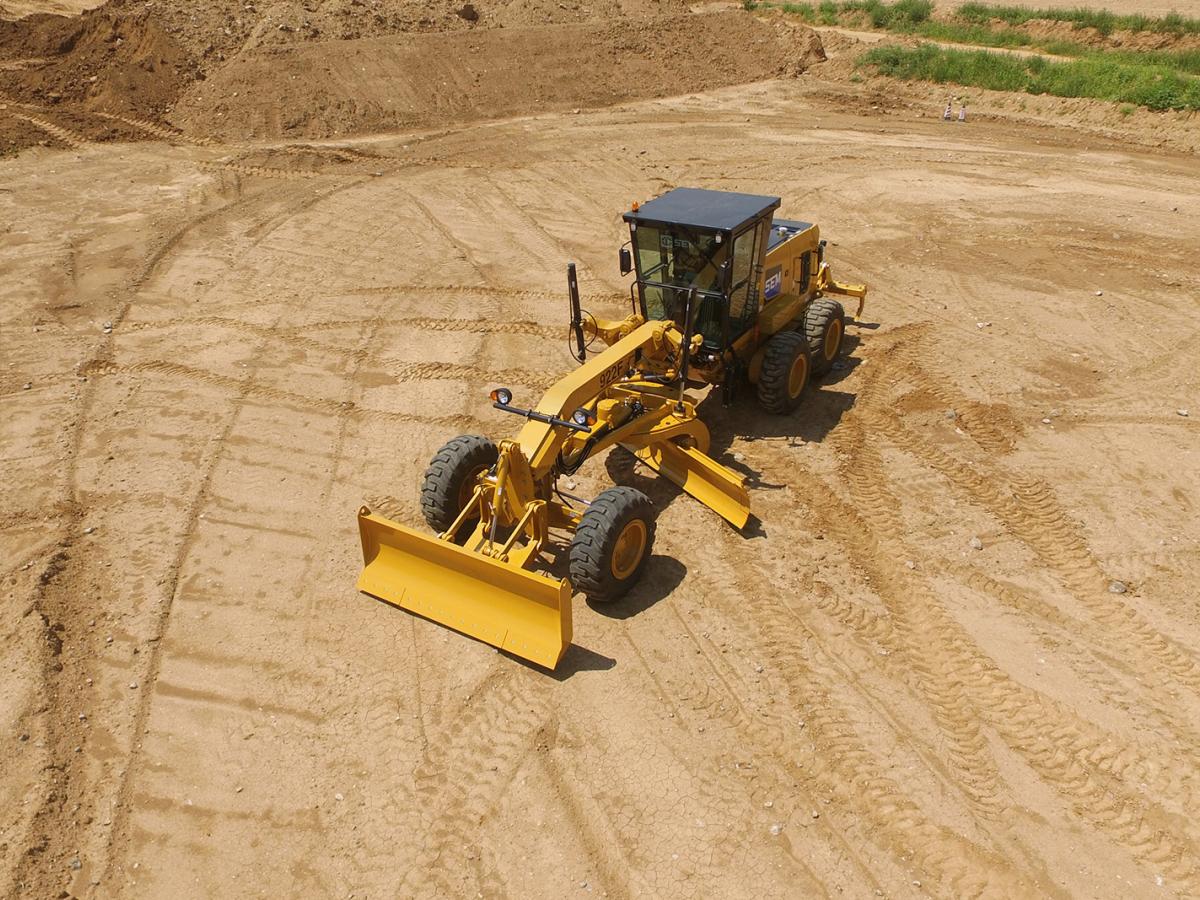

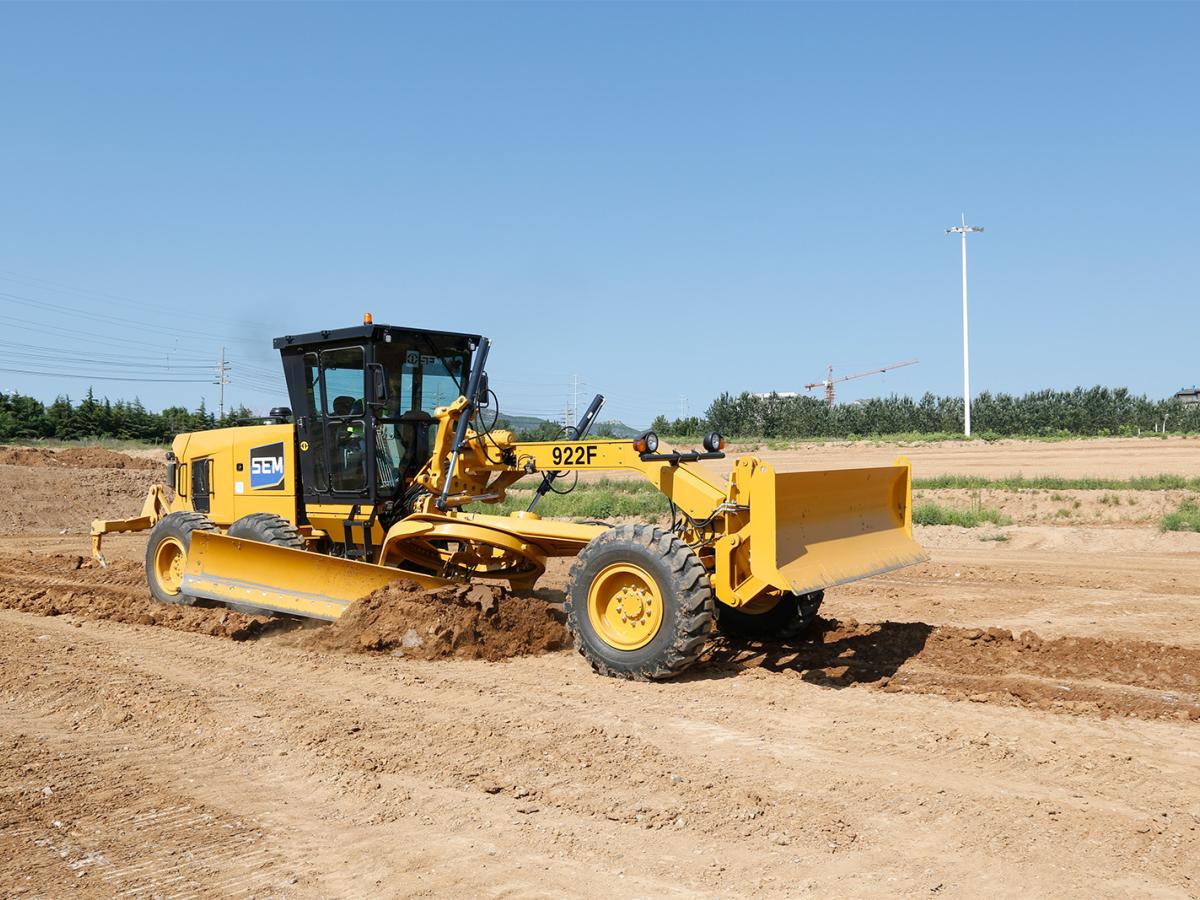

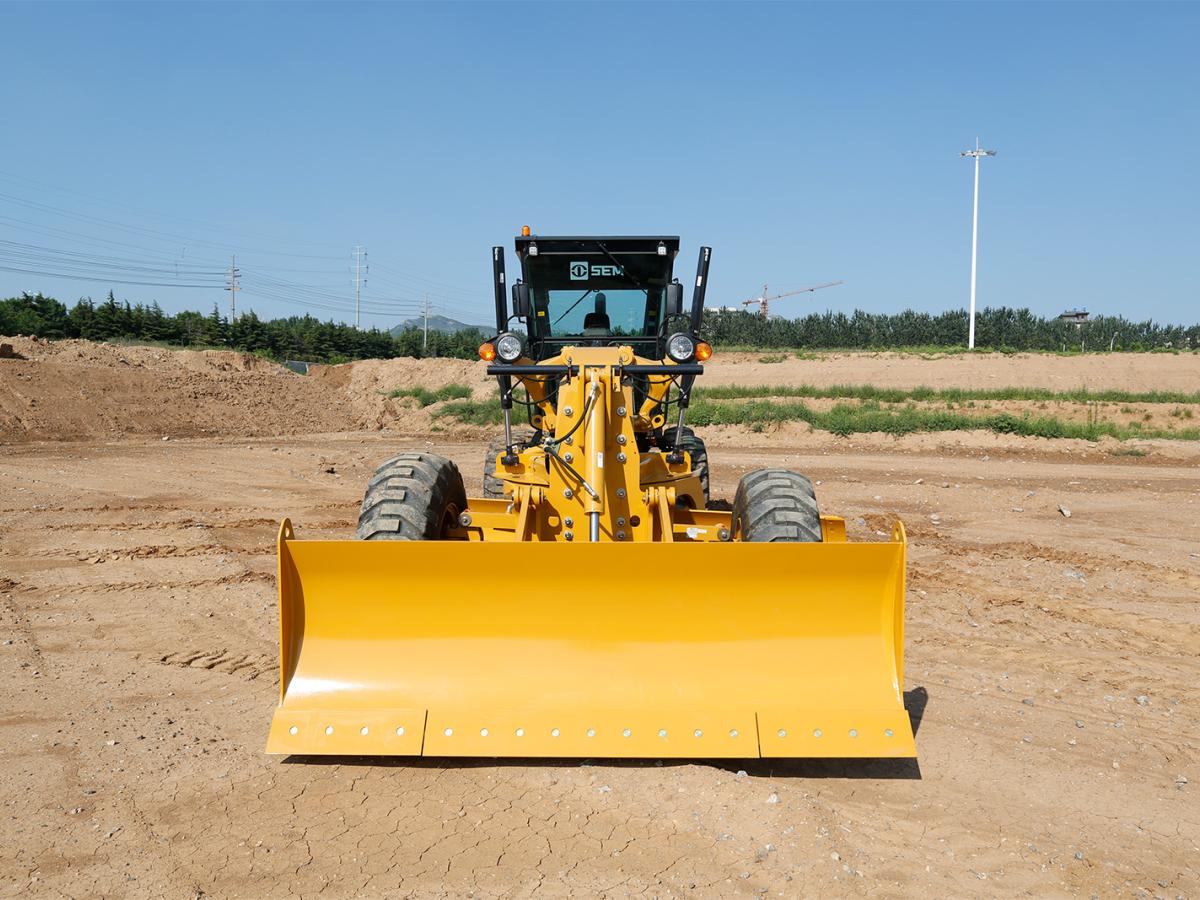

The SEM 922F is a motor grader designed for ground leveling, grading, trenching, slope scraping, snow removal, loosening, material distribution, mixing and land reclamation.

Equipped with a Tier 2 SDEC engine, PPPC load-sensing hydraulic system and SEM rear tandem axle designed and manufactured by Caterpillar, the 922F combines precise control, reliability, operating comfort and lower owning and operating costs.

The new-generation SEM F Series motor grader features key upgrades, including direct connection of the hydraulic pump to the gearbox, removal of the pump drive shaft under the cab and a new molded engine hood with a modern design.

Operate in Comfort

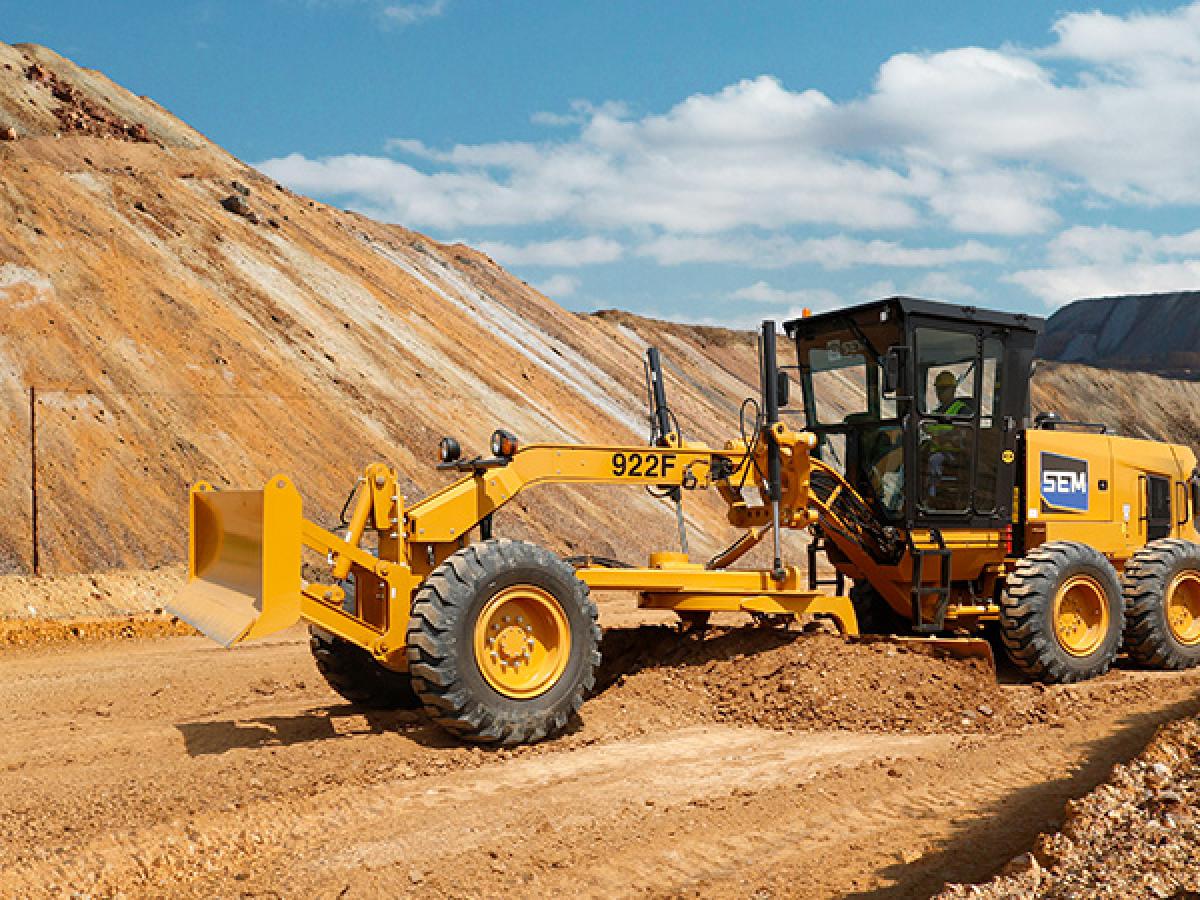

The standard blade float function improves efficiency and makes operation easier. Caterpillar’s classic lever control offers short travel and precise operation. The adjustable console and seat, combined with optimized ergonomics, improve operator comfort. The cab benefits from improved airtightness and reduced noise. Additional vents in the new dashboard and cab columns further enhance interior comfort.

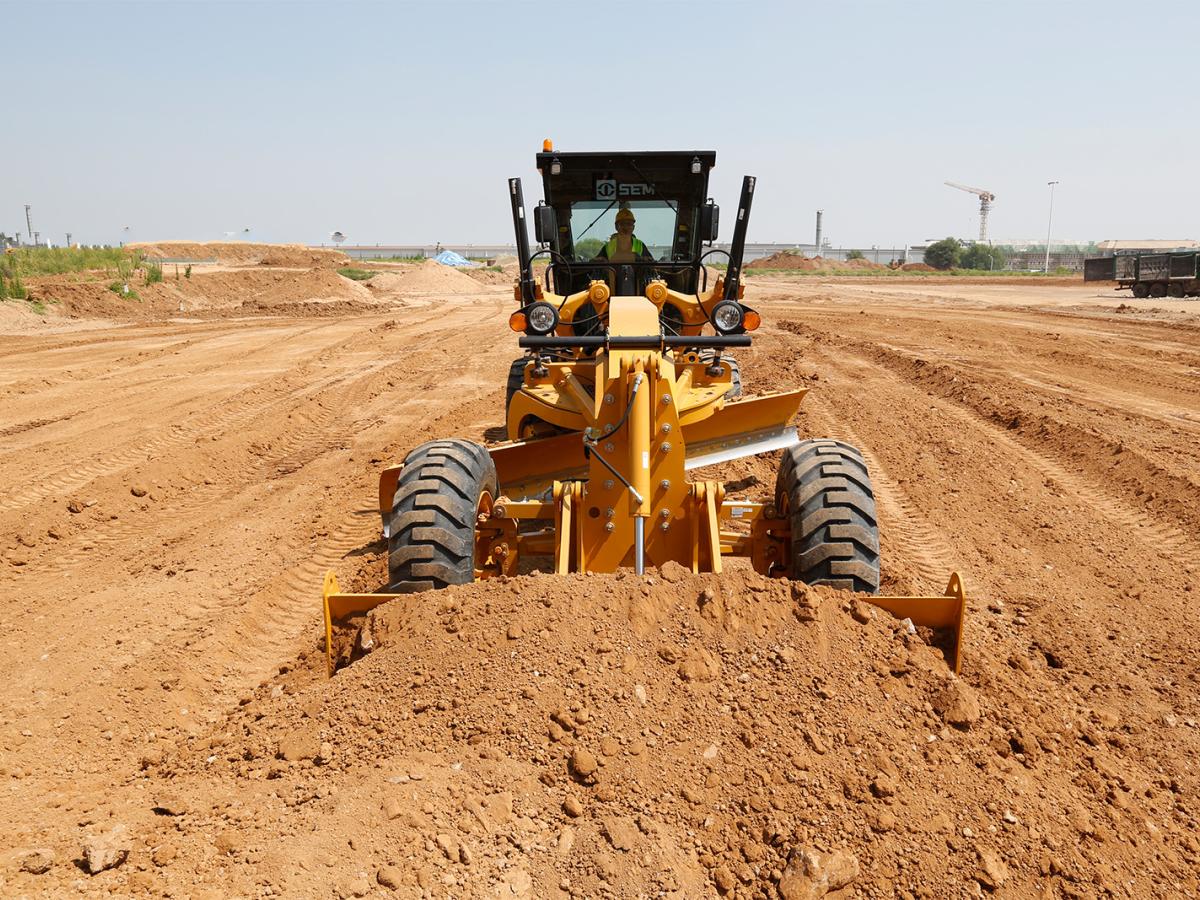

Ease of Operation

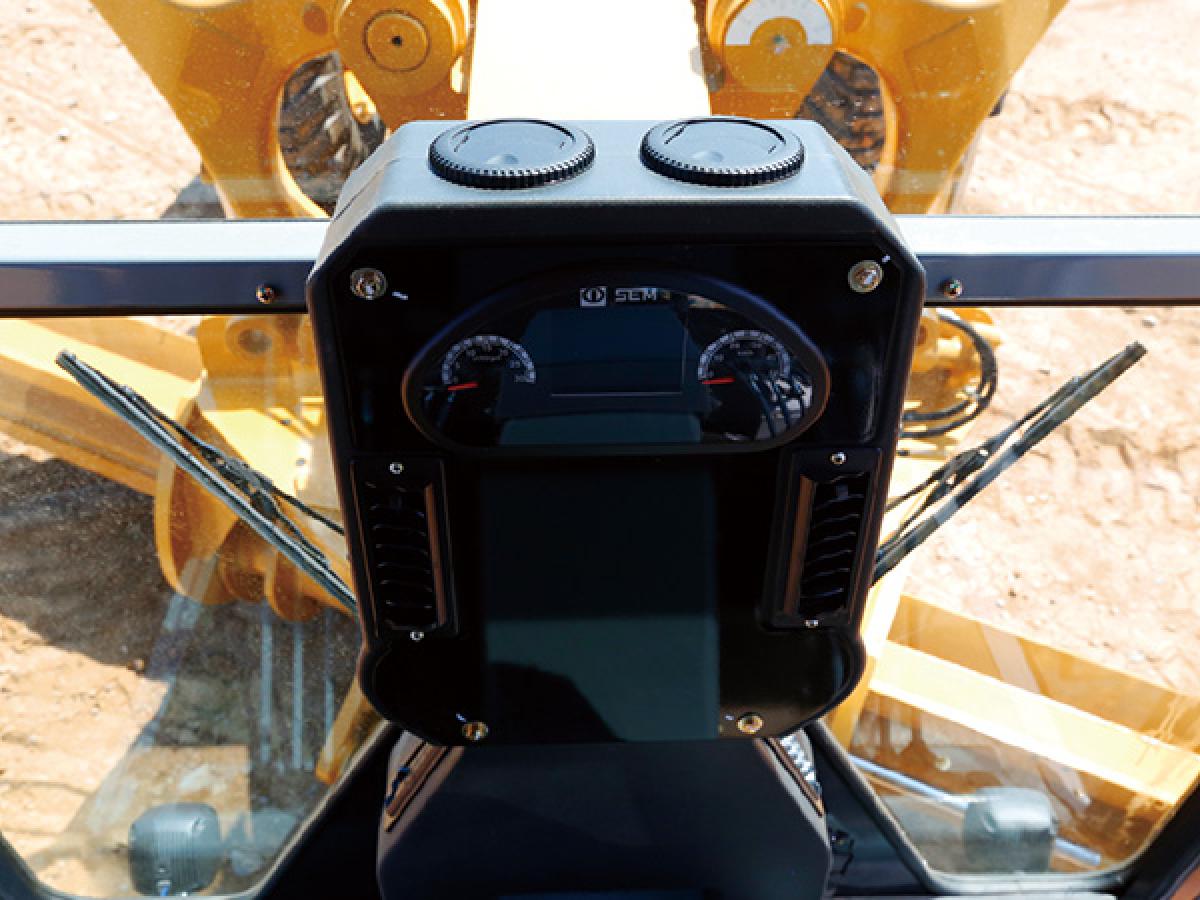

The cab, mounted on the front frame, provides an exceptional view of the blade and front axle even when using articulation, improving safety and accuracy. Short-throw levers are efficiently spaced for easy multi-function control. Their short stroke and low effort reduce operator fatigue and improve efficiency. The PPPC load-sensing hydraulic system maintains consistent and precise blade movement regardless of engine speed variations. The 7-hole link bar with electro-hydraulic control allows easy adjustment from the cab and provides excellent blade extension capability. Air conditioning is standard, with additional air vents from the dashboard and left and right cab columns, while improved cab sealing helps reduce noise and vibration.

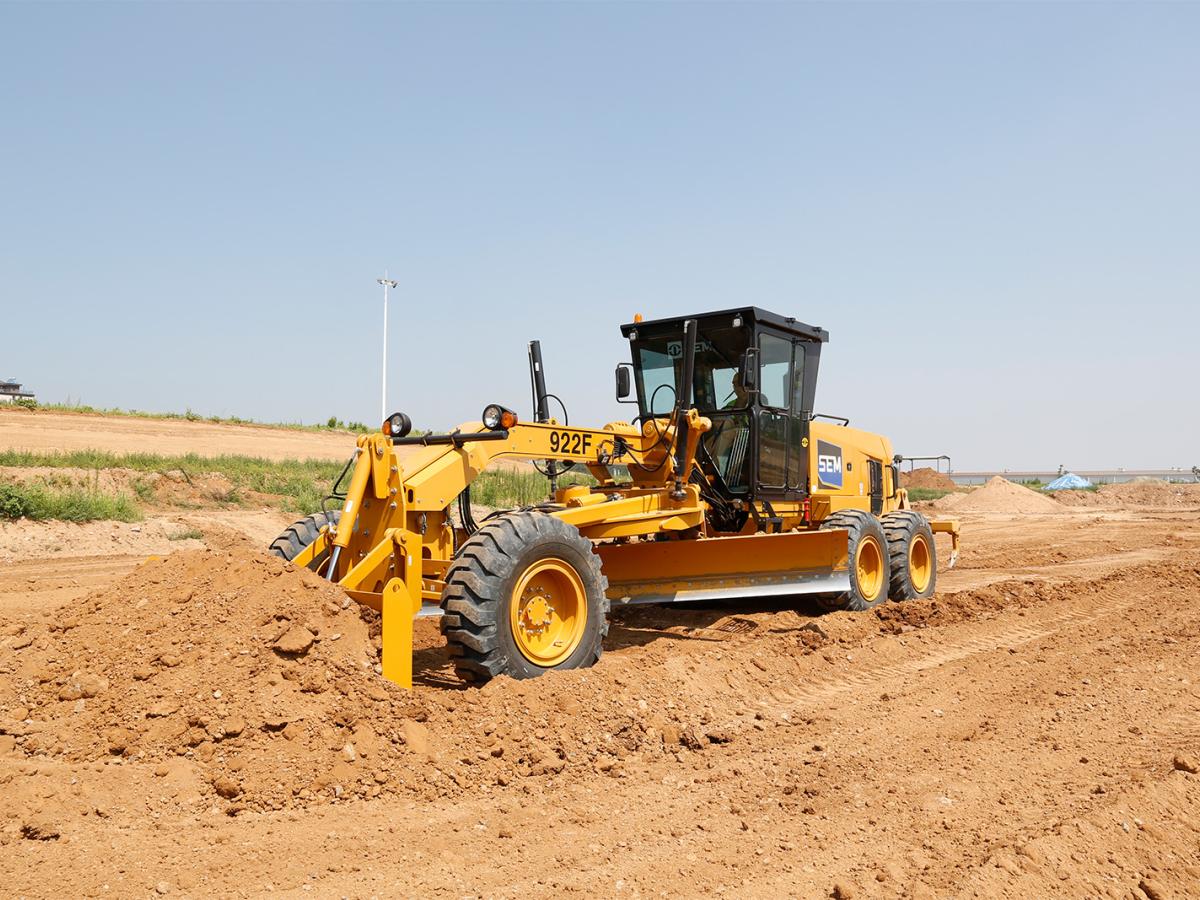

Performance You Need

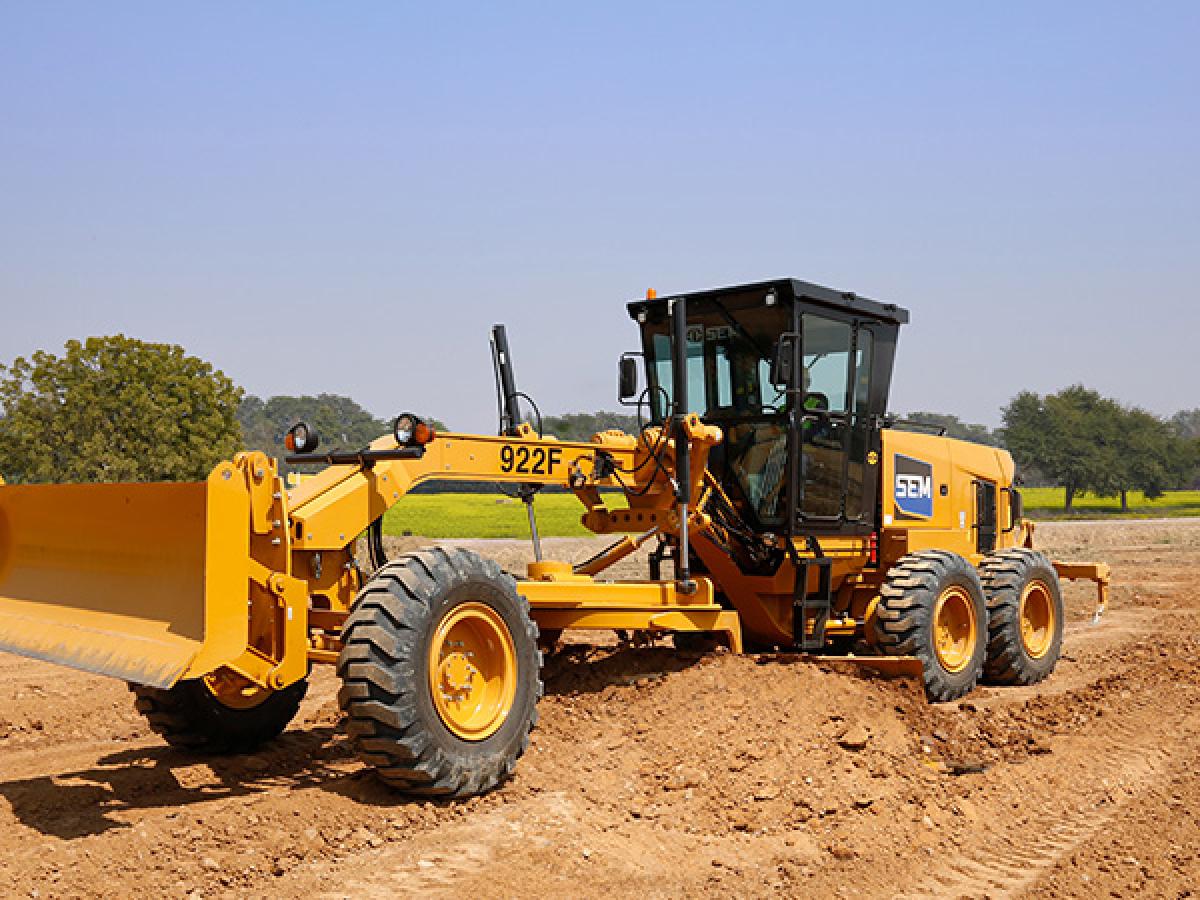

The circle drive delivers up to twice the torque of the industry standard, improving working efficiency. The PPPC hydraulic system ensures precise, predictable and consistent operational movement regardless of engine speed. The cab is mounted on the front frame to provide enhanced visibility for easier operation. The 7-hole link bar with electro-hydraulic pin puller provides excellent moldboard extension capability and superior performance.

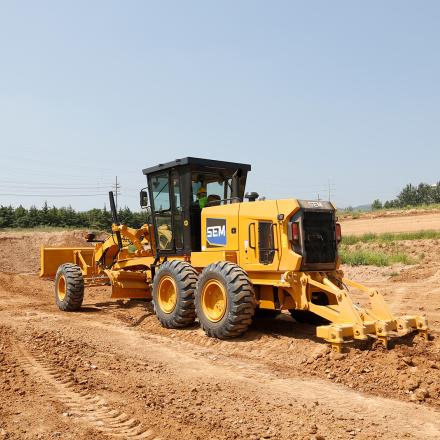

Ease of Maintenance and Lower Cost

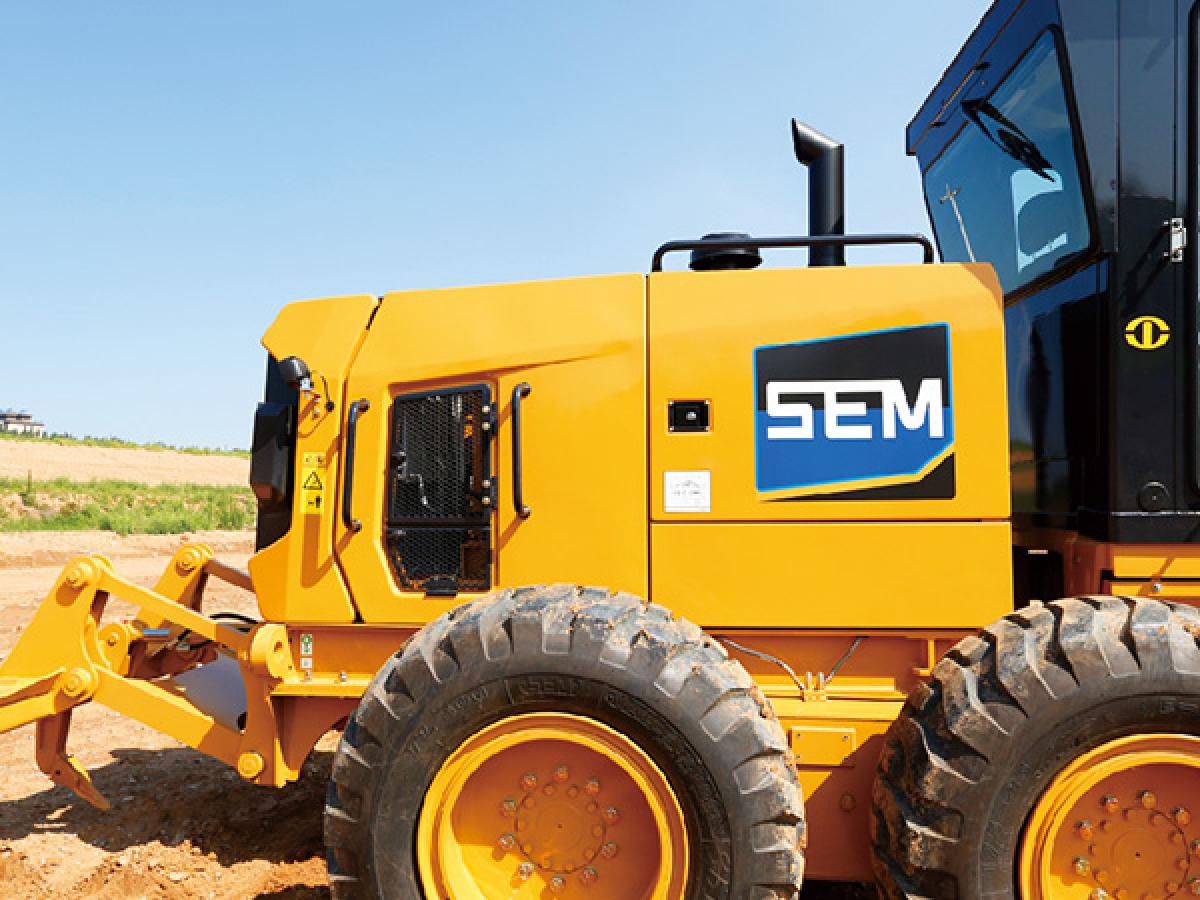

The new family-style metal molded hood offers a bold visual identity, with right and left side doors for easy service and maintenance. The replaceable drawbar draft ball, bolted rather than welded, allows easy removal of wear shims to adjust the drawbar, reducing service time and cost. The tandem axle uses an external disc service brake for superior braking and shorter stopping distance. Friction plates compatible with SEM wheel loaders make replacement easier. Grease-free lubrication of the rear axle and tandem, together with the adjustment-free chain design, extends the maintenance cycle. Hydraulic hose routing reduces exposure to damage and provides quick service access. One-key operation simplifies machine and fleet management. The transmission filling port is raised for easier oil changing and better protection from impacts, while the visual level gauge replaces the traditional dipstick for easier inspection.

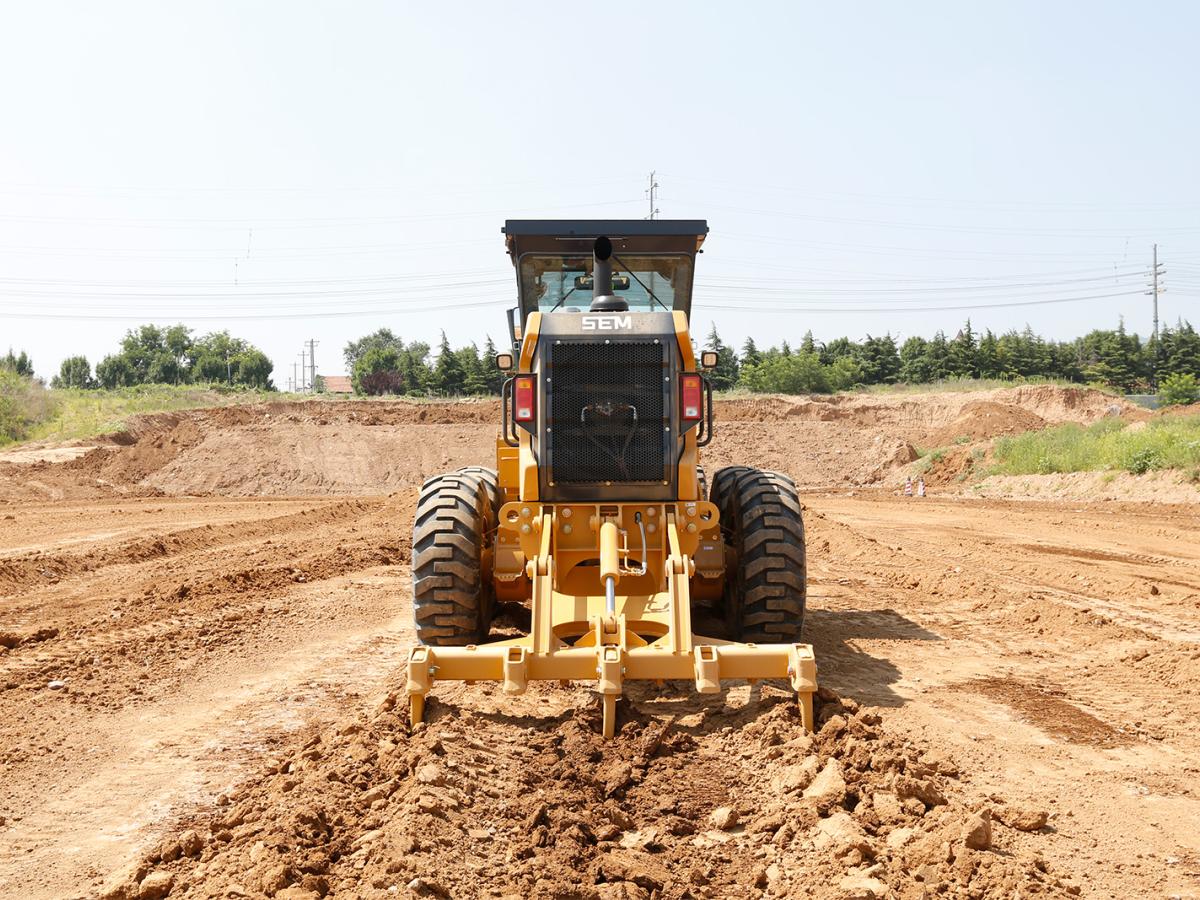

Robustness and Durability

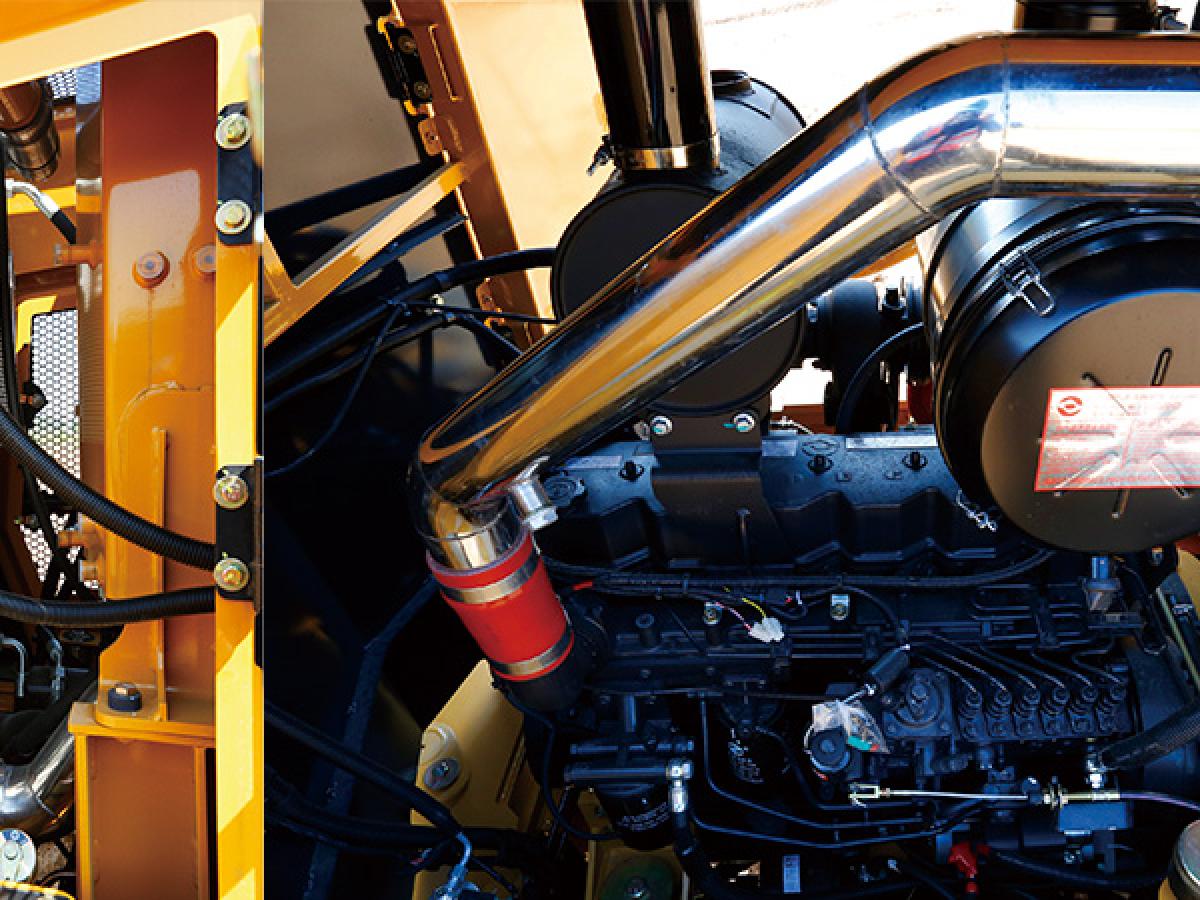

The A-frame tubular drawbar provides maximum strength and durability. The flanged box-section front frame removes welds from high-stress areas, improving reliability and durability. Continuous top and bottom plate construction reinforces structural consistency and strength. The tandem axle benefits from Caterpillar motor grader design experience, with improved bearing layout, optimized load distribution, final drive with four planetary gears and oil-bath lubrication for longer oil-change intervals. Inboard lock check valves in the PPPC system prevent unintended cylinder movement and potential leaks. The hydraulic cooling fan comes with a standard 43°C cooling package and optional 50°C package for better adaptability across different working environments.

Operational Safety

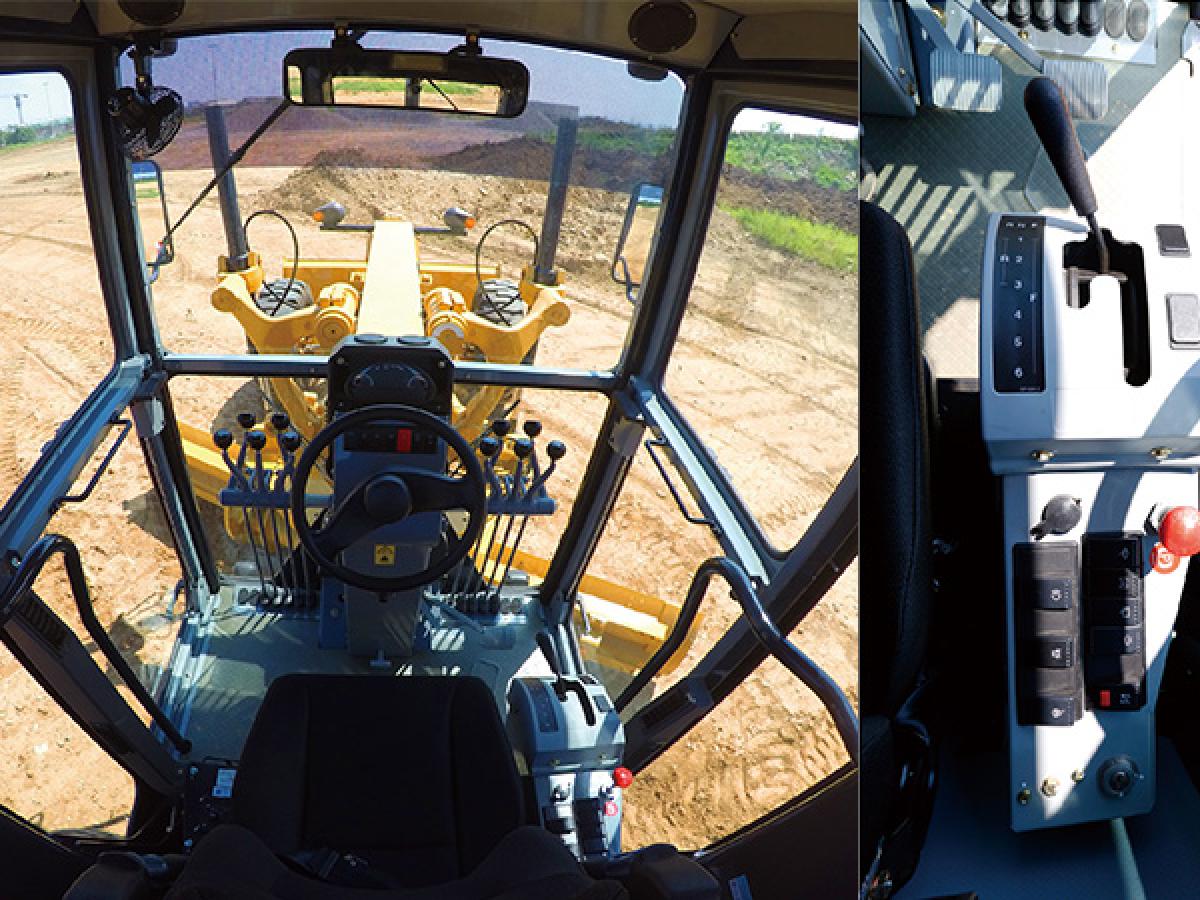

The disc service brake features dual-circuit braking, separating front/rear and left/right braking to ensure high safety standards. The dashboard includes a three-level alarm monitoring system. A three-point contact handrail provides easy access for entry, regular inspection and maintenance.

Low Cost per Hour

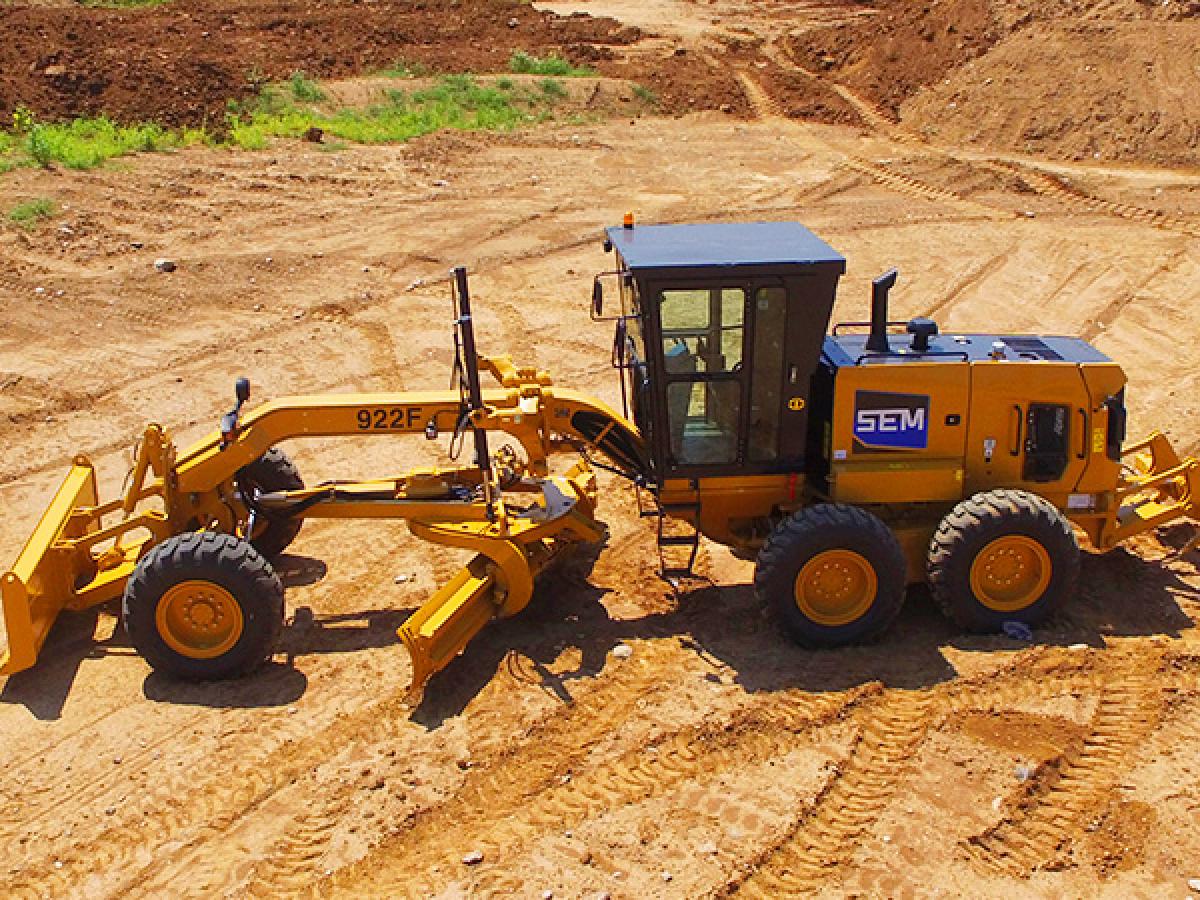

The load-sensing PPPC hydraulic system reduces heat generation and fuel consumption while improving efficiency. The hydraulic cooling fan delivers high efficiency across different ambient temperature conditions and improves cooling performance. The Caterpillar Qingzhou in-house SEM tandem axle, final drive units with four planetary gears, oil-bath lubrication, and maintenance-free, adjustment-free chain support higher carrying capability. The removable drawbar ball joint makes replacement and maintenance easier.

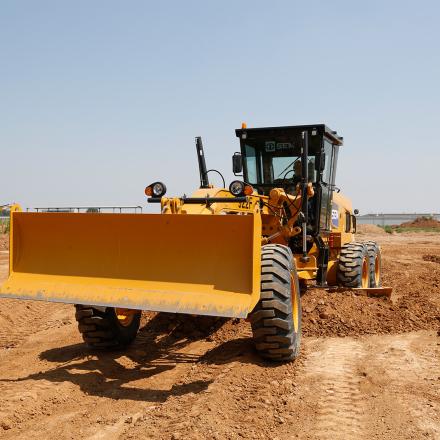

High Efficiency and Reliability

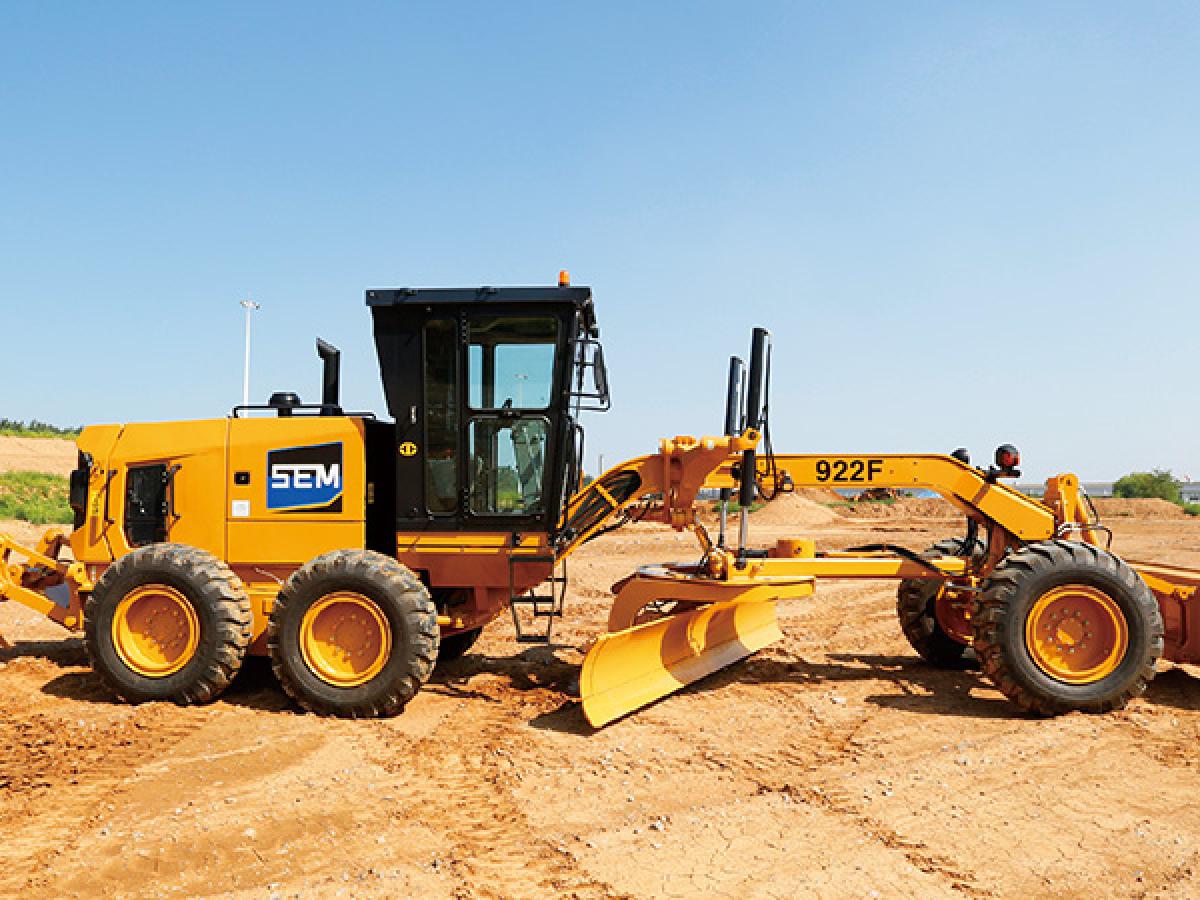

The world-class variable displacement piston pump and PPPC valves with a load-sensing hydraulic system are specifically designed for motor grader applications. They continuously match hydraulic flow and pressure to power demand, support easy multi-function control and reduce energy loss. The implement pump has been moved to the transmission PTO port, removing the pump drive shaft under the cab, reducing noise and maintenance points. The standard blade float function allows the blade to lower without hydraulic pressure, increasing versatility and helping protect both the machine and pavement, especially during snow removal. Class-leading circle drive torque improves material spreading and grading capability. Versatile configurations meet different customer needs, including hand throttle, DCM grease tank, level gauge, rear camera and transmission guard.

Product Specifications for 922F

Model
- Model922F
Main Specifications
- Standard Weight, Non ROPS base16,313 kg
- Standard Weight with ROPS16,640 kg
- Overall Dimensions (L*W*H)11,100*2,630*3,140 mm
- Travel Speed (Forward/Reverse)40 km/h, 25 km/h
- Max. Drawbar Traction99 kN
- Frame Articulation Angle20°
- Minimum Turning Radius7,800 mm
- Wheelbase6,140 mm
- Tire17.5-25 12PR
Engine
- Engine ManufacturerSDEC
- Engine ModelSC9D220G2
- Max. Torque920 N.m @ 1400 RPM
- Net Power162 kW @ 2200 RPM
- EmissionTier 2
Transmission
- Brand / ManufacturerAdvance/HangChi
- TypeConverter, Powershift
- Forward / Reverse Gears6 Forward / 3 Reverse
Tandem Axle
- Brand / ManufacturerSEM/Caterpillar
- DifferentialNo-Spin
- Service BrakeAir over oil, Disc
- Oscillation Front Up15°
- Oscillation Front Down25°
Front Axle
- Ground Clearance630 mm
- Wheel Lean, Left / Right±18°
- Max. Oscillation±16°
- Steering Range, Left / Right±47.5°
Hydraulic System
- Circuit TypeLoad Sensing, PPPC
- Pump TypeVariable Piston
Moldboard
- Blade Width, Standard4,279 mm
- Blade Width, Optional3,669 / 3,974 mm
- Blade Height610 mm
- Blade Thickness20 mm
- Max. Cutting Depth715 mm
- Max. Lifting Height475 mm
- Float FunctionYES
Service Refill Capacity
- Fuel Tank280 L
- Engine Oil26 L
- Coolant50 L
- Transmission36 L
- Differential Case33 L
- Tandem Case, Each Side63 L
- Circle Drive, Non Slip Clutch2 L
- Circle Drive, With Slip Clutch7 L
- Hydraulic Oil Tank60 L
