SEM^™ 832F

Key Information

Category Track-type tractors

Operating Weight 38,710kg

Ground pressure 83Kpa/77Kpa

Ground Clearance 370mm

Request a Quote

Overview
Specifications
Media Gallery
Quote

Key Features

Overview

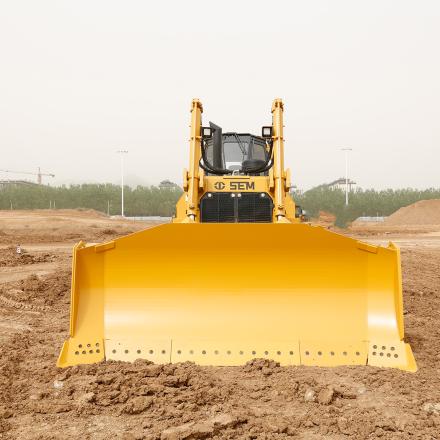

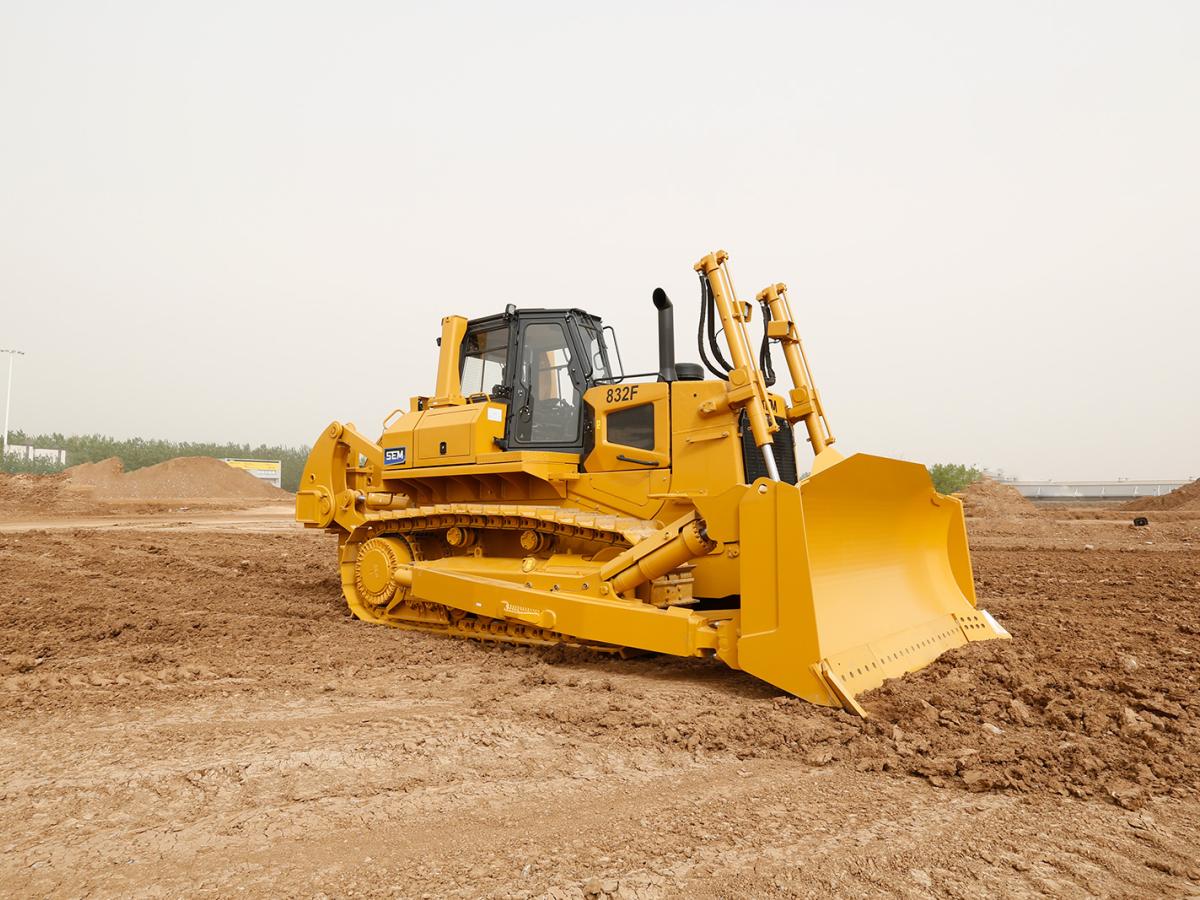

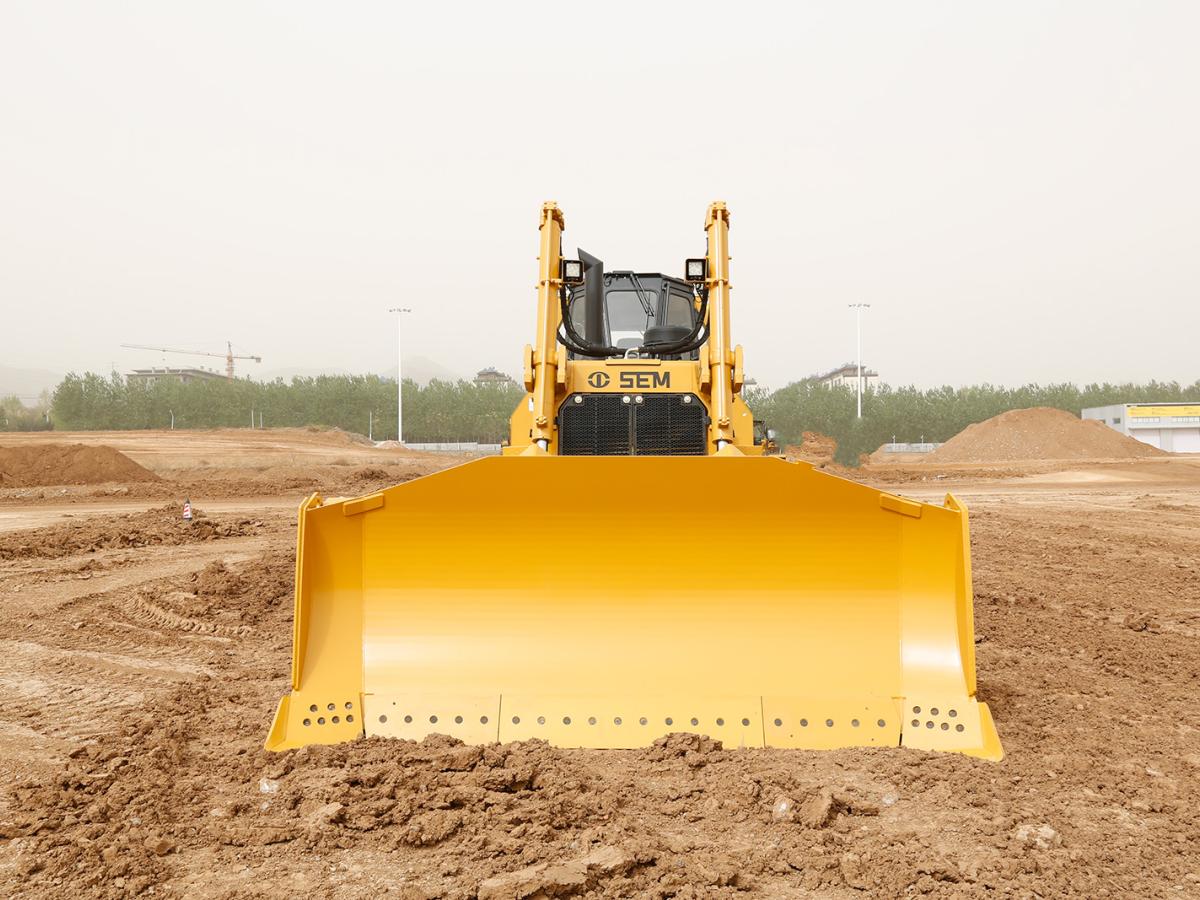

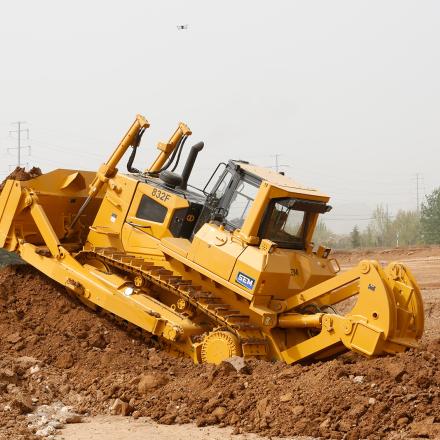

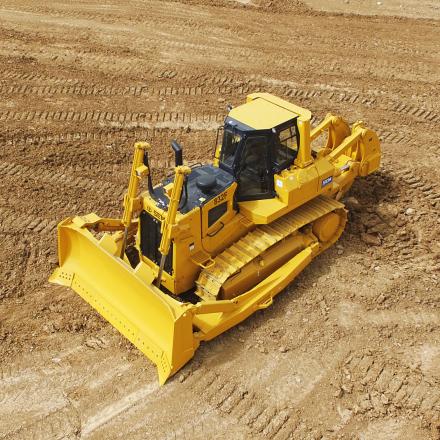

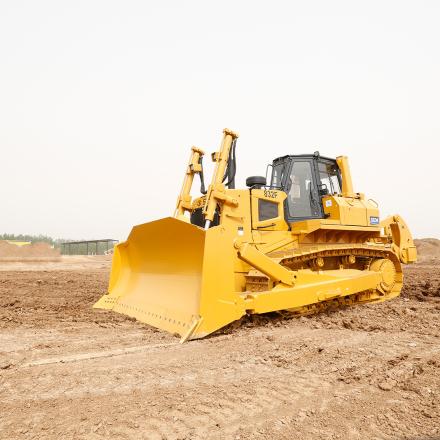

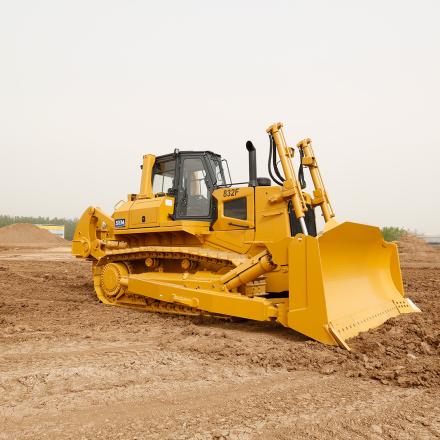

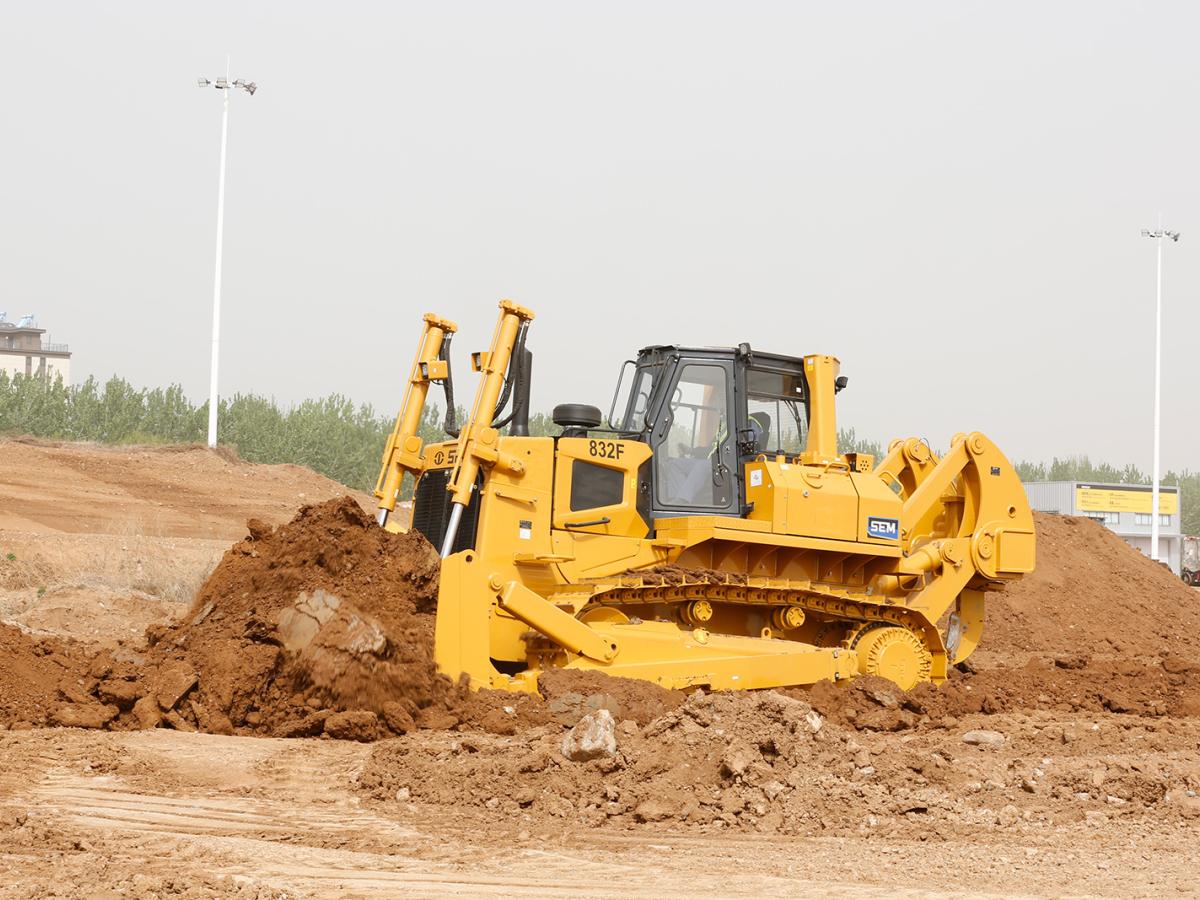

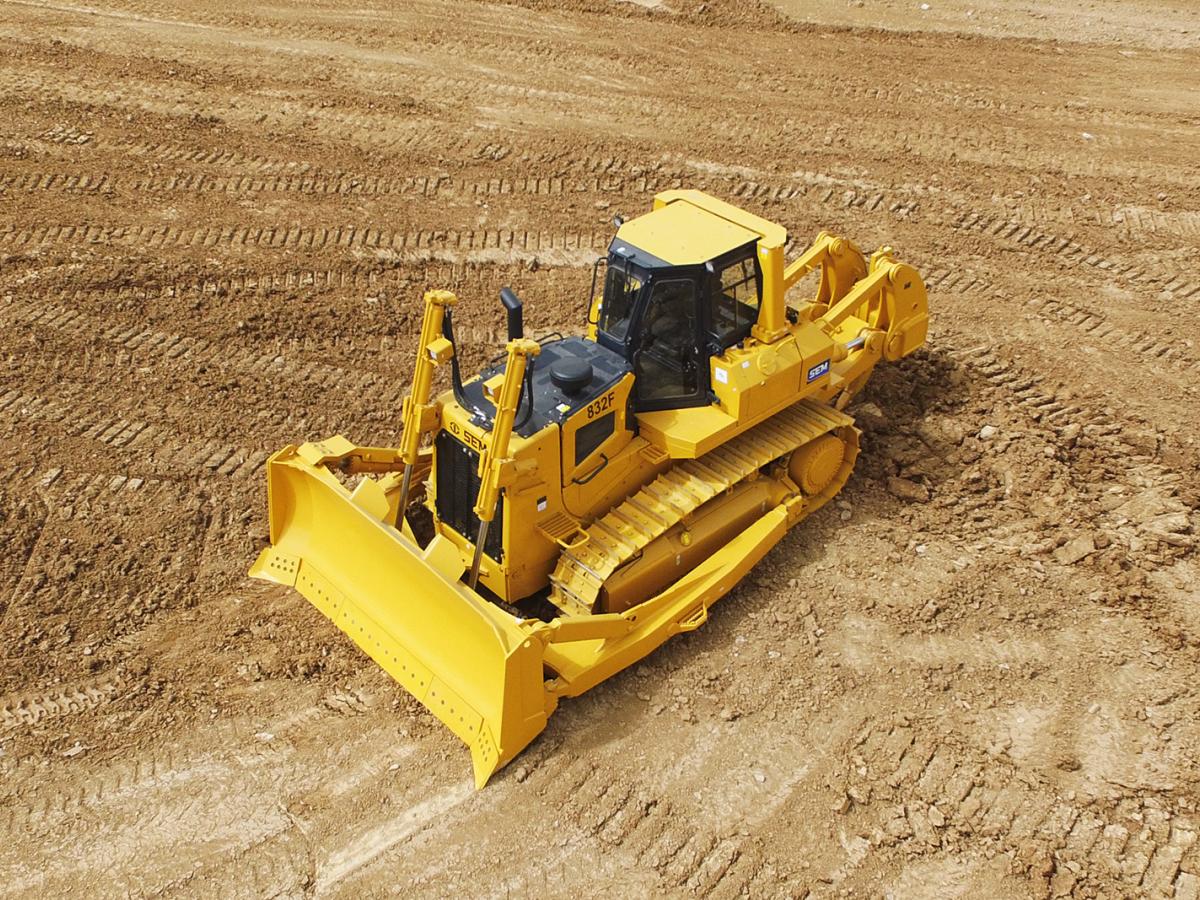

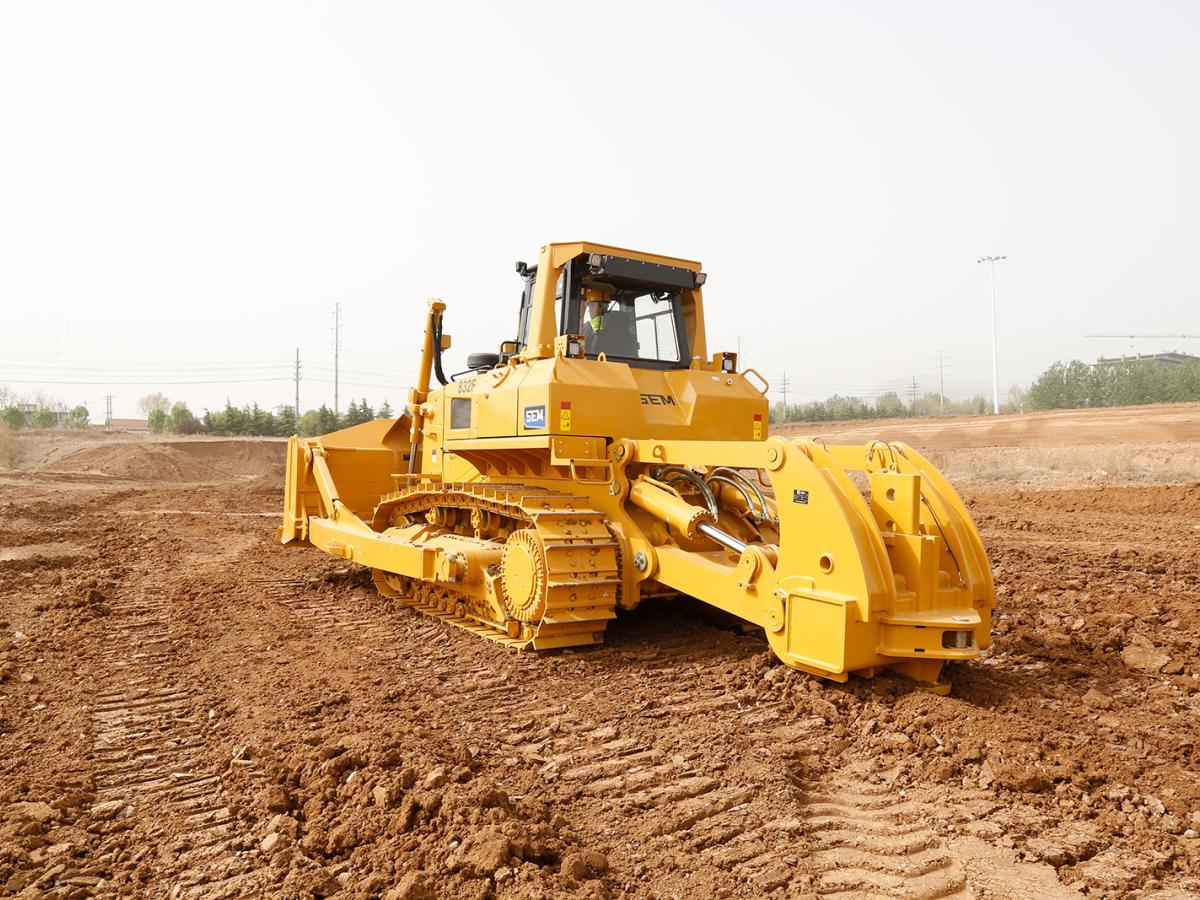

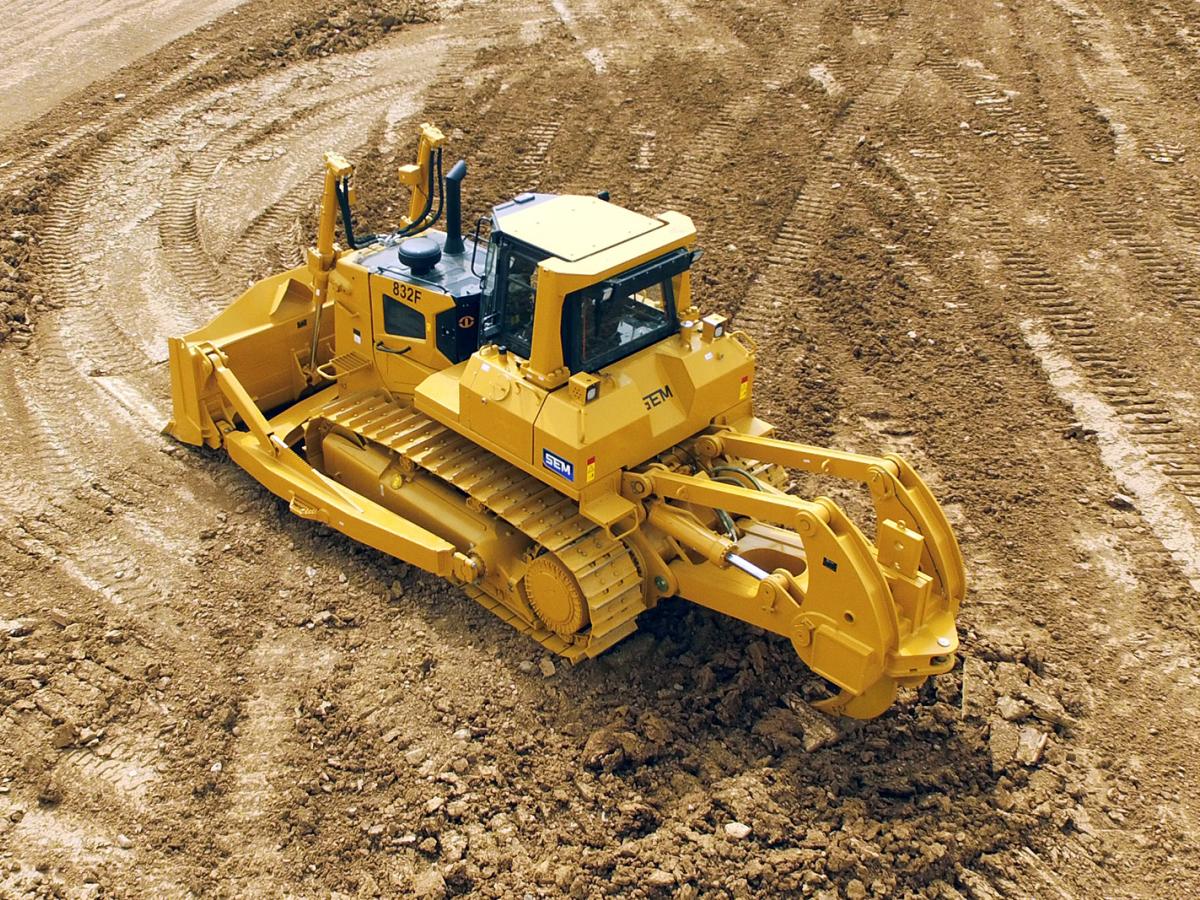

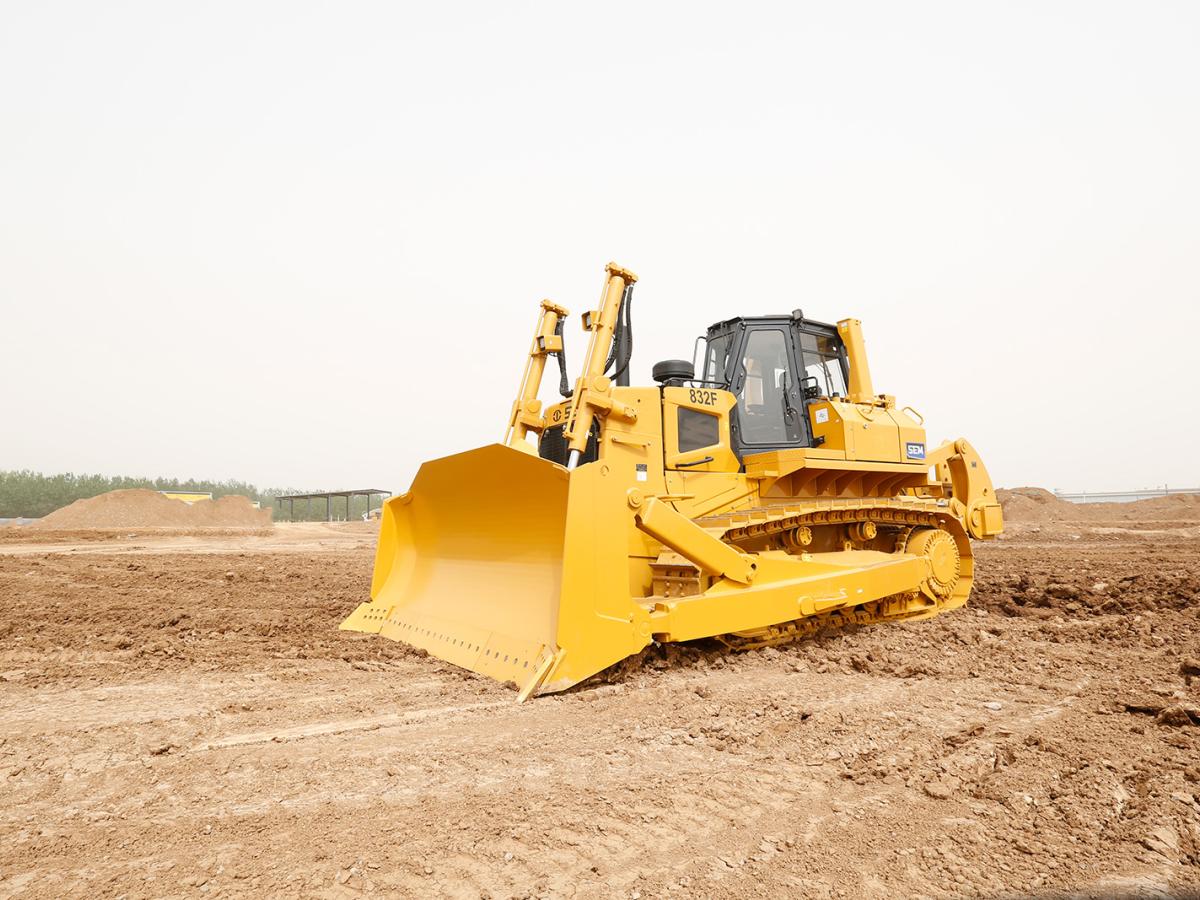

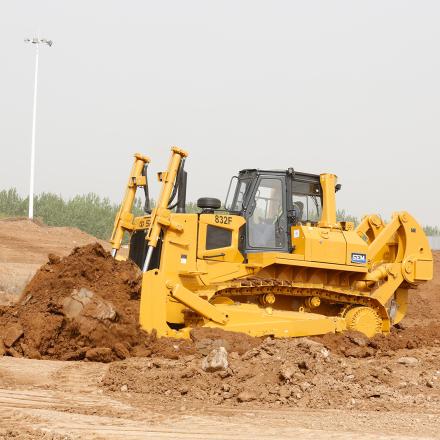

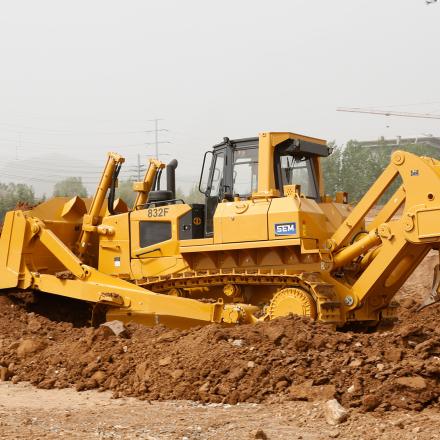

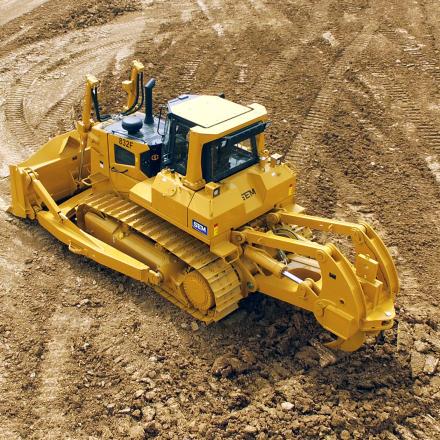

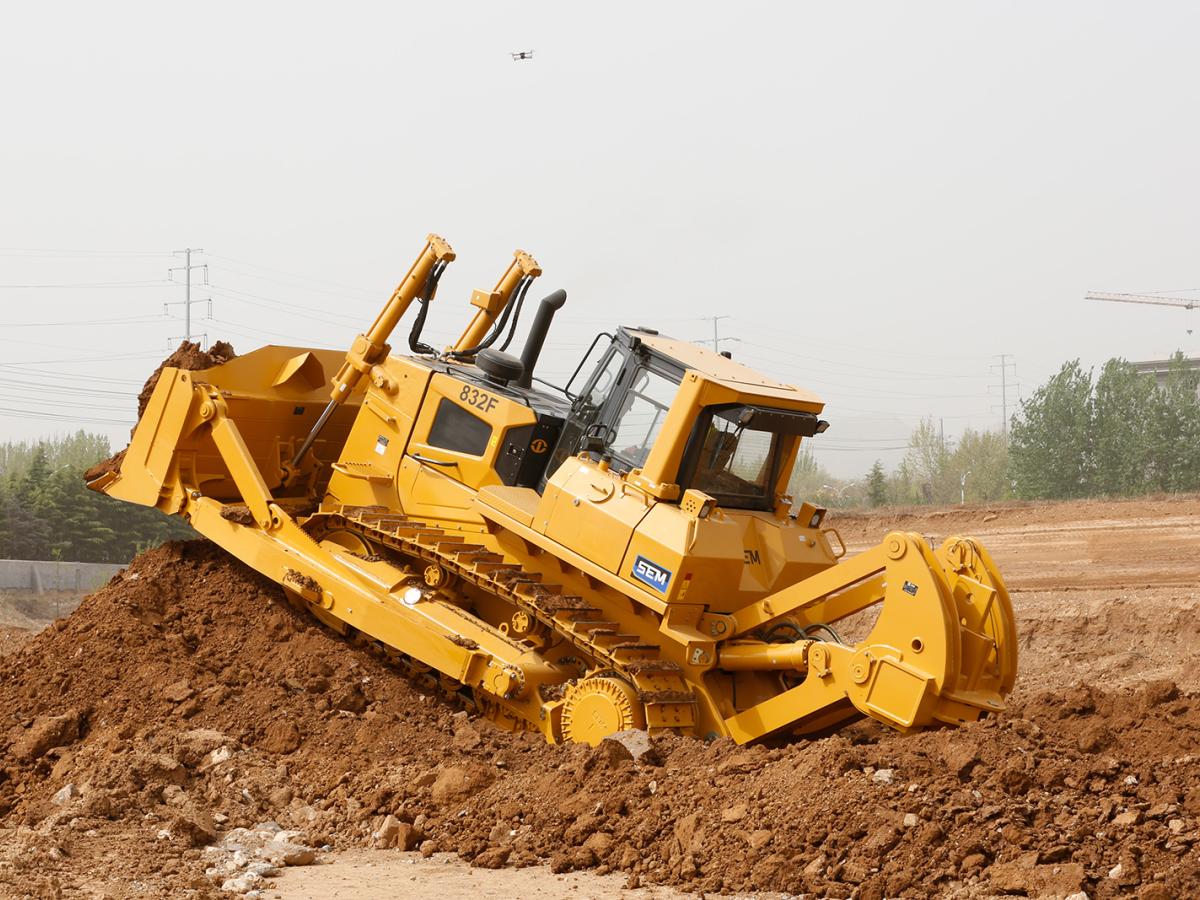

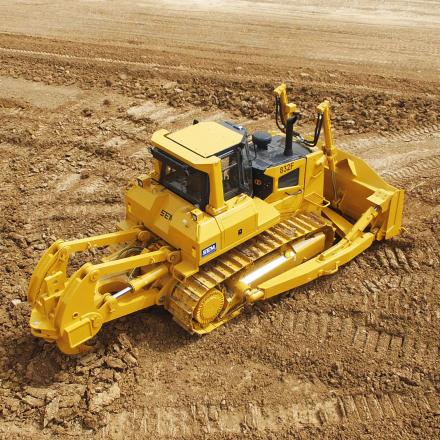

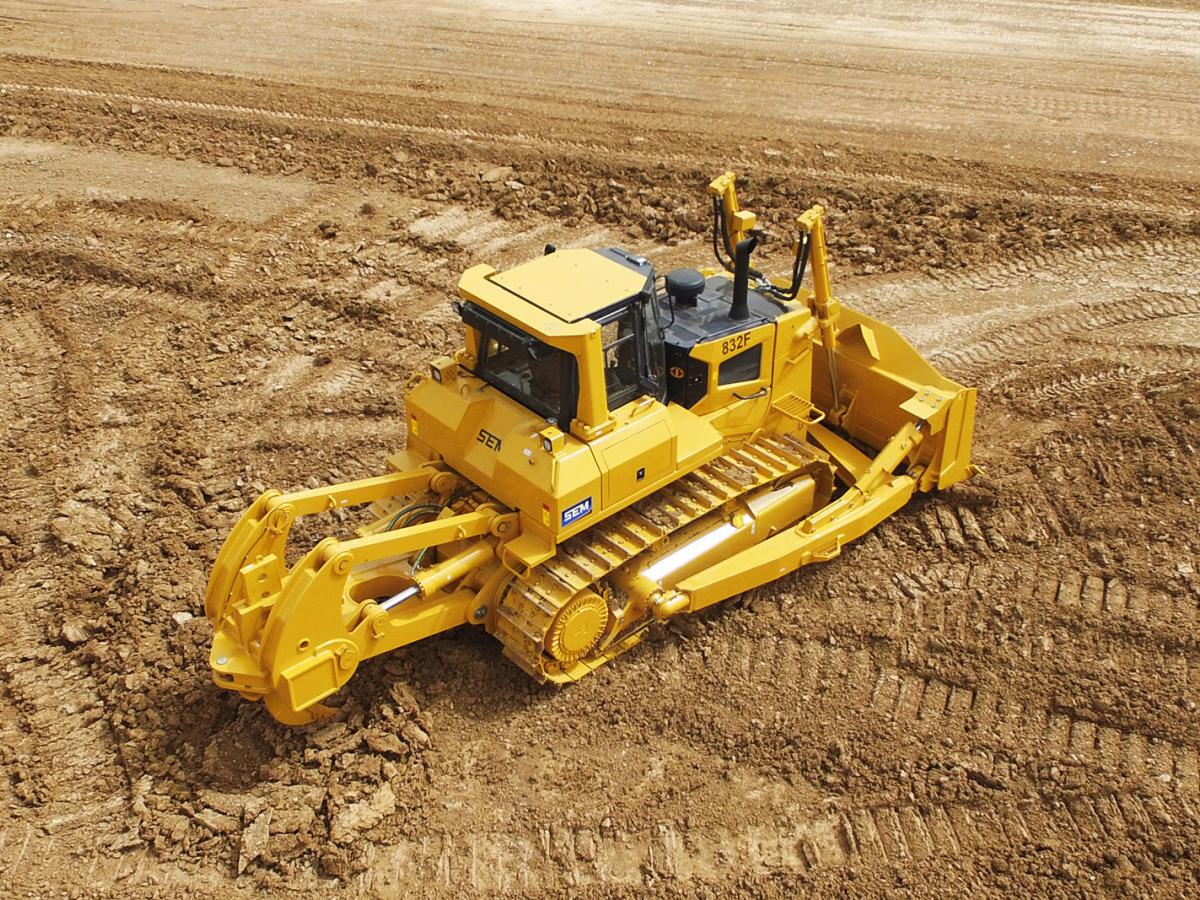

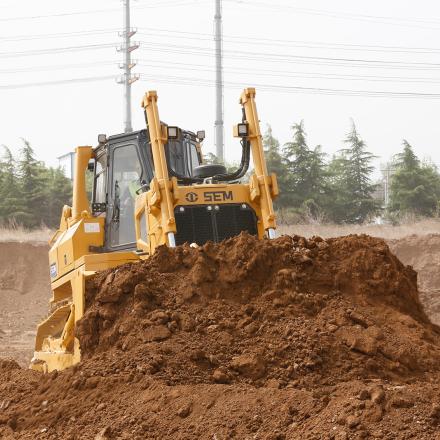

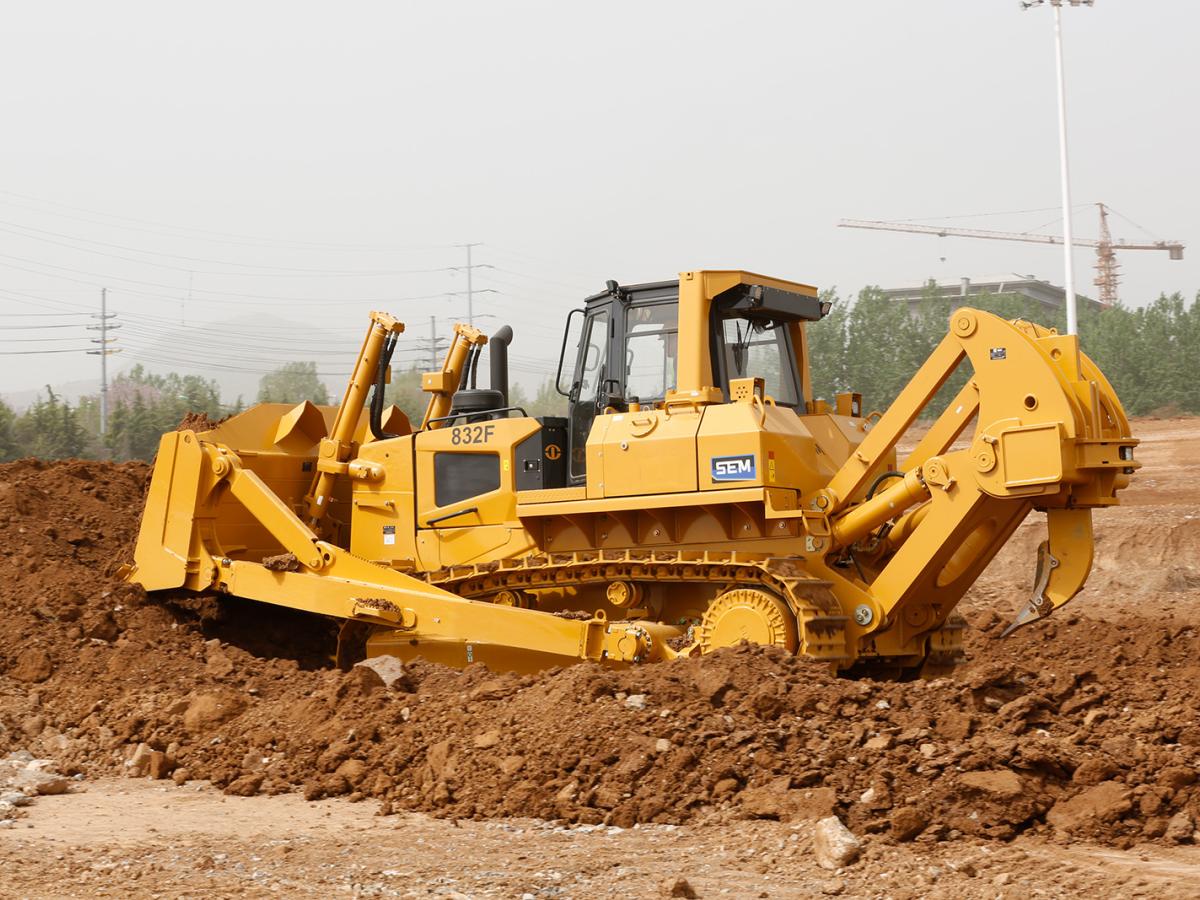

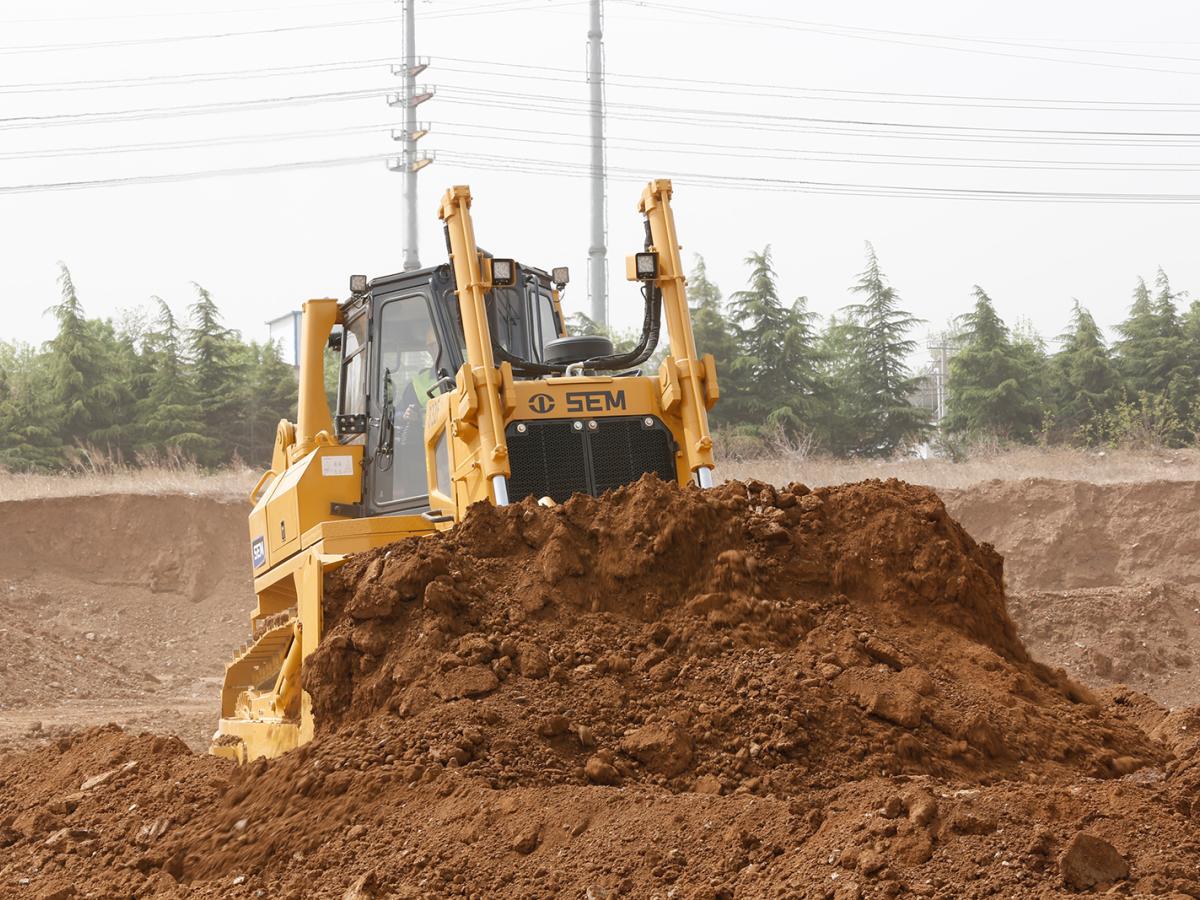

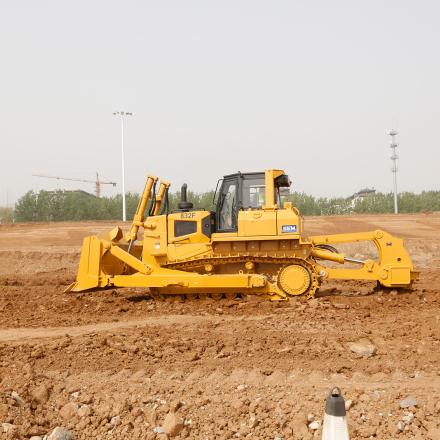

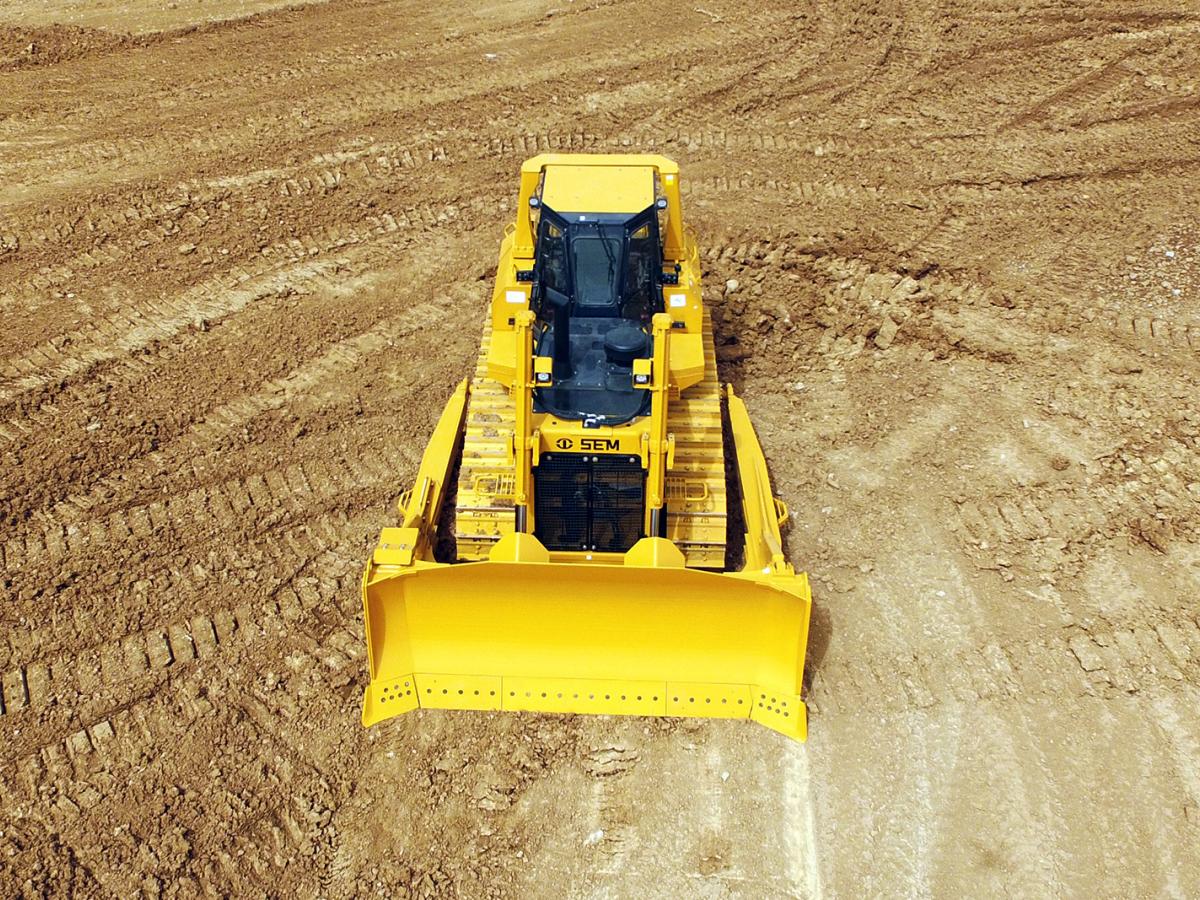

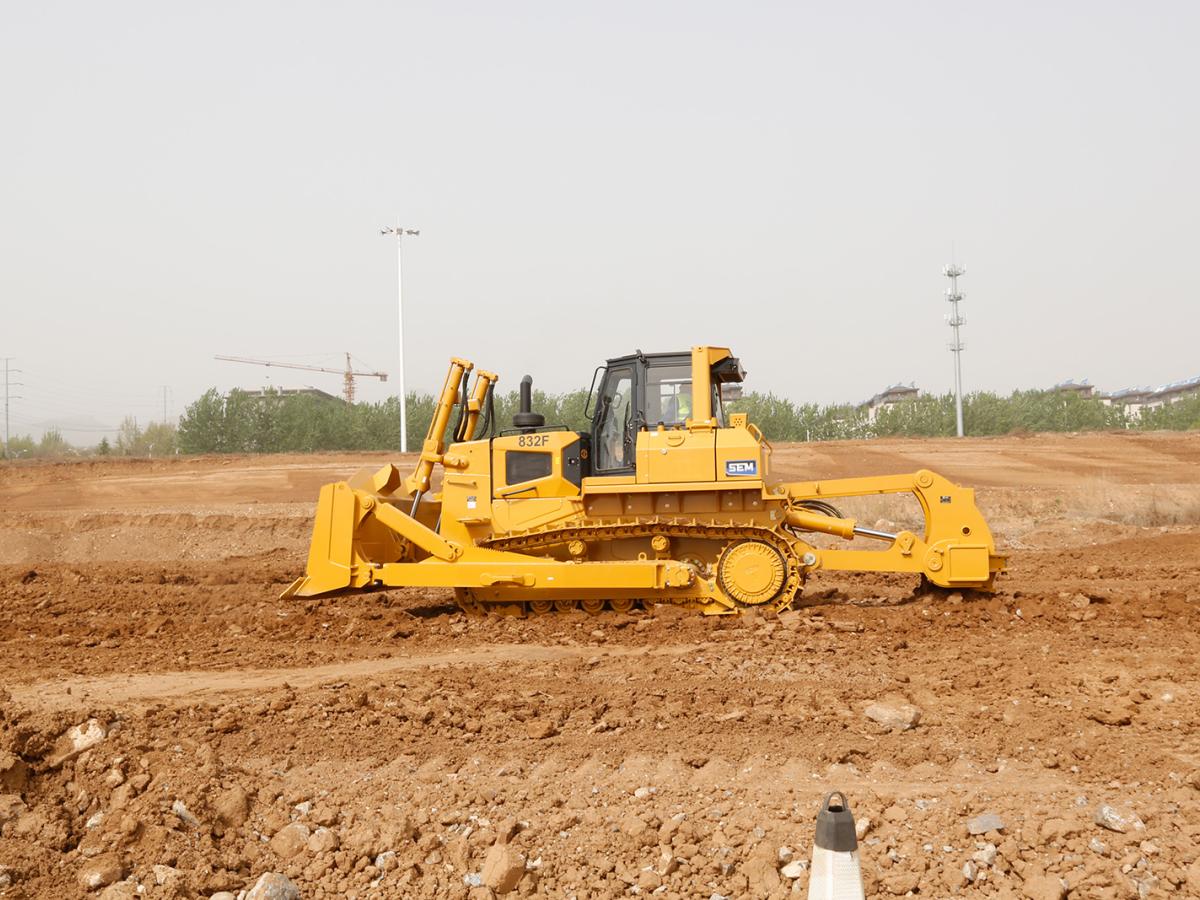

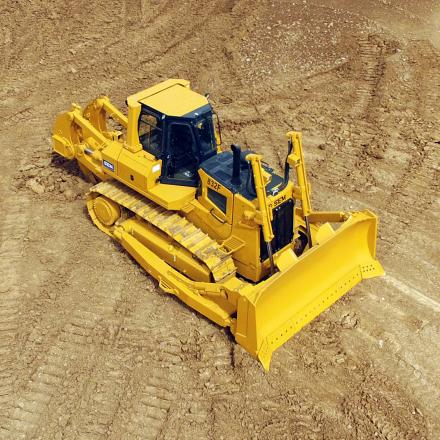

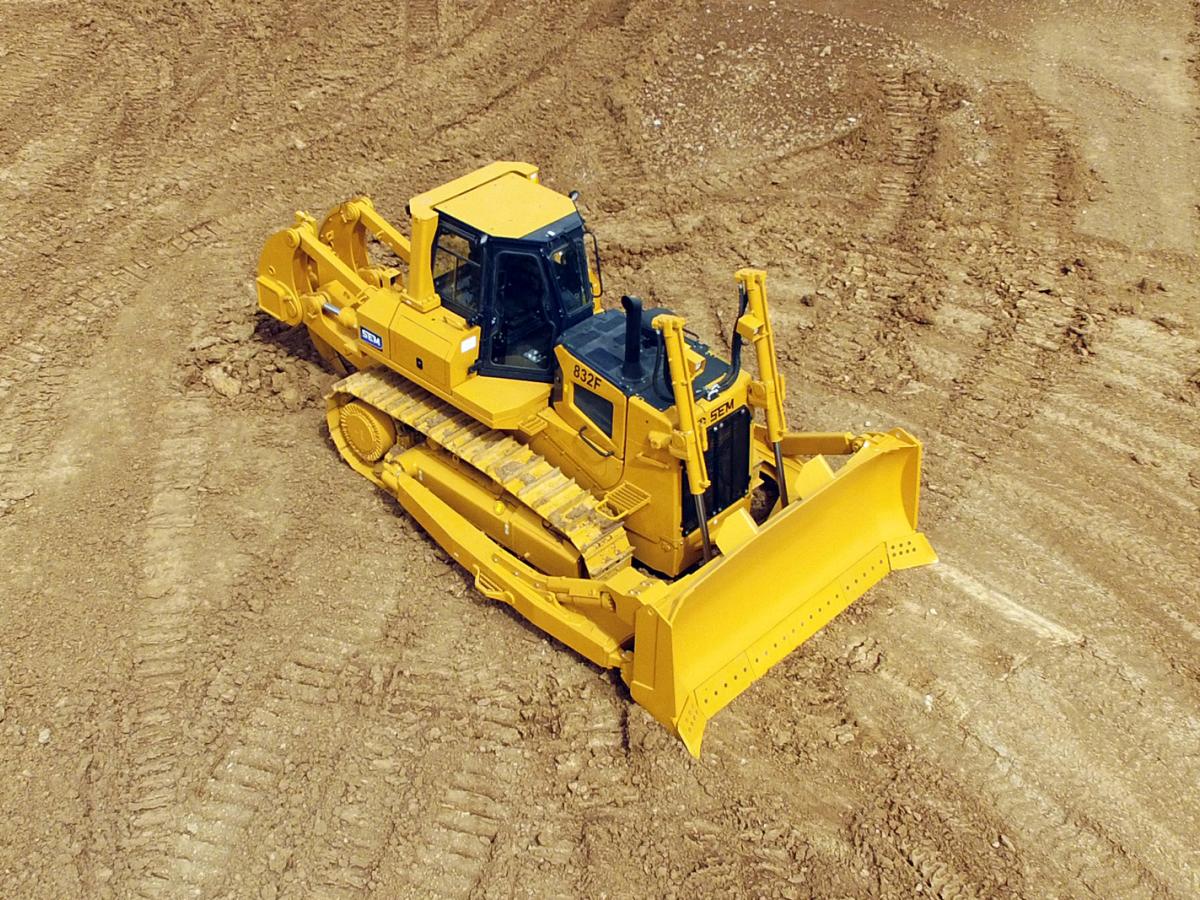

The SEM 832F is a heavy-duty track-type tractor designed for dozing, grading, material handling, stockpiling and ripping in demanding working environments.

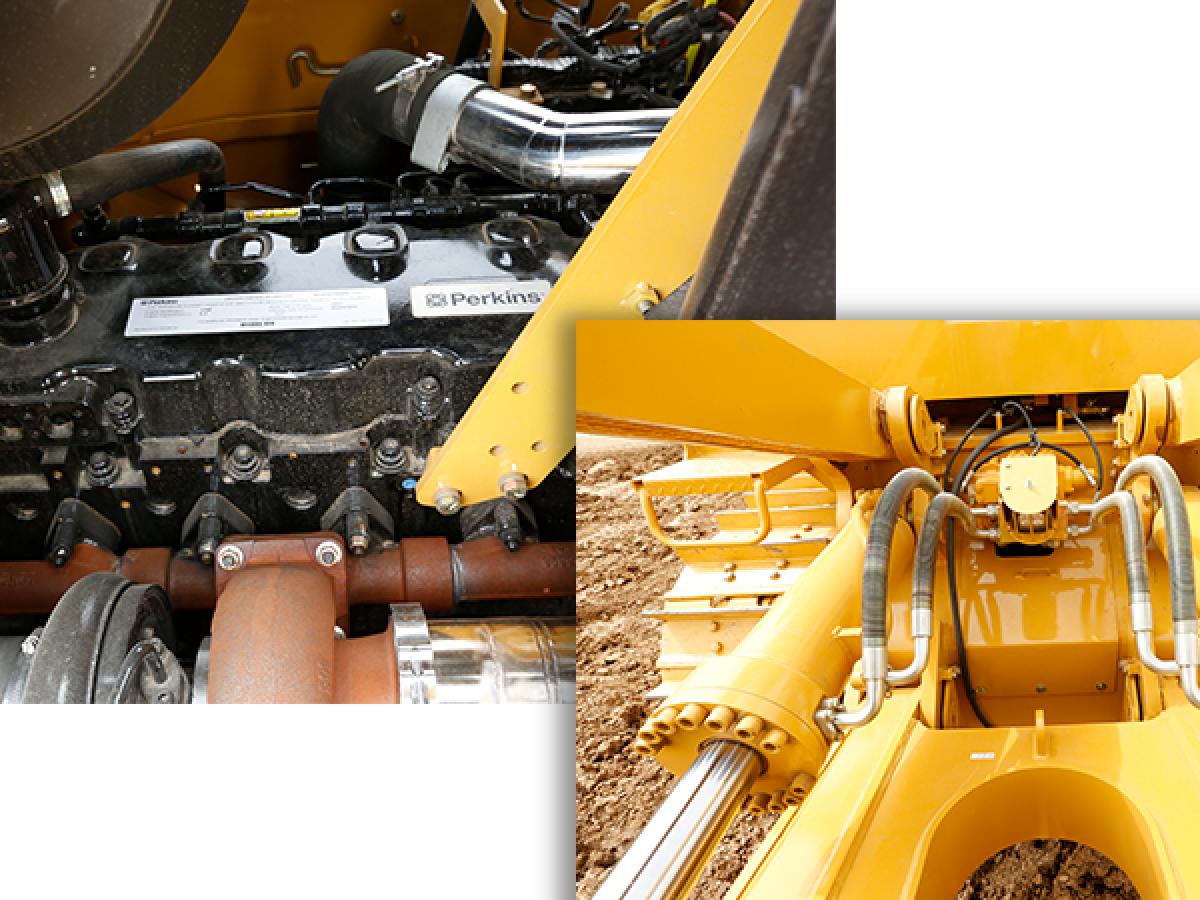

Powered by a Perkins 1706D engine compliant with Tier III emission standards and delivering up to 253 kW / 339 hp, the 832F combines high power, electronically controlled hydrostatic transmission and excellent maneuverability. Its F Series design, multiple track configurations, SU, S, coal and waste-handling blades, and single-shank ripper allow it to adapt to heavy construction, mining, port operations, road construction, coal handling, waste handling and forestry applications.

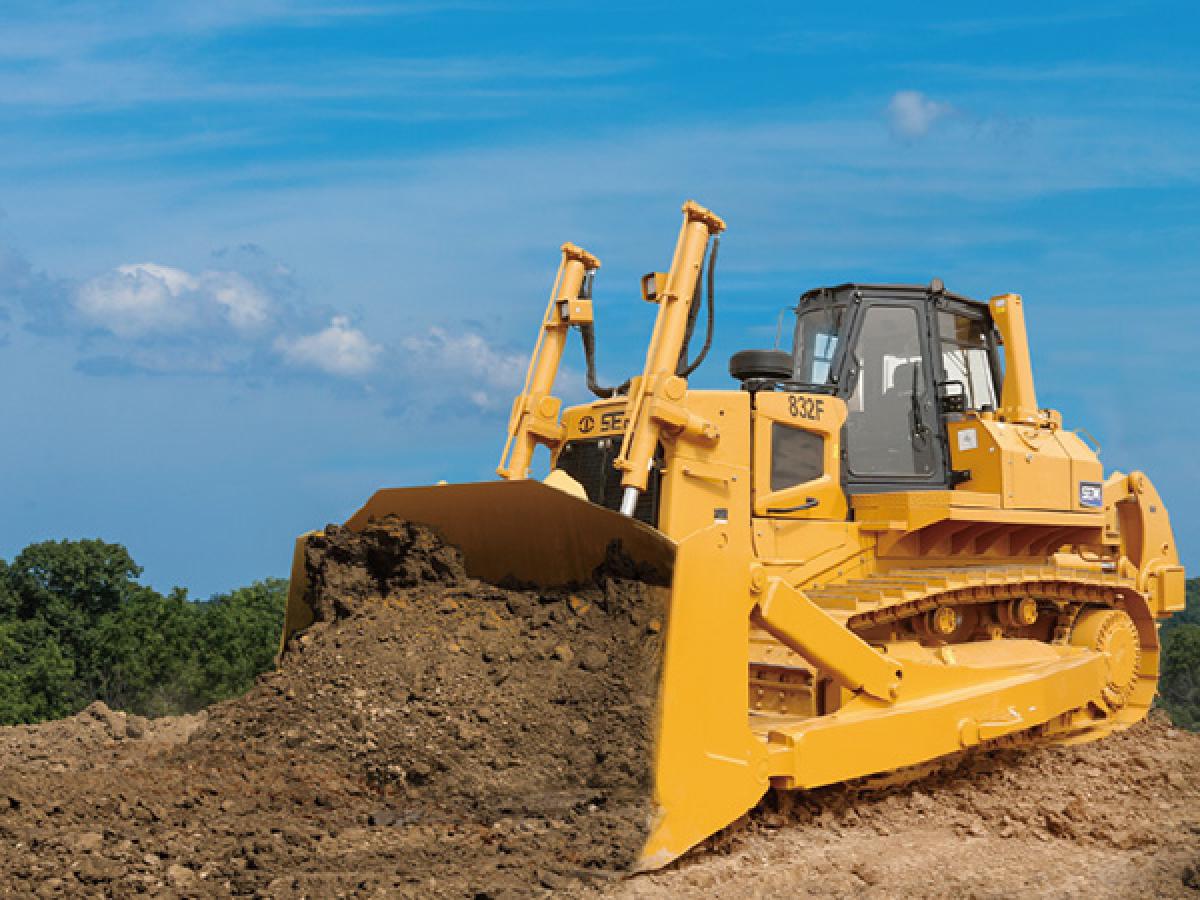

Enhanced Reliability

The dual-path hydrostatic drive system, using electronic control technology and a single-pump, dual-motor design per side from a world-class supplier, delivers industry-leading reliability. The Perkins engine, widely used in industry, provides durability and dependability. The final drive uses triple-stage reduction with four planetary gears to ensure longer service life. Machine structures are analyzed using FEA and OMSA to identify and reinforce high-stress areas. Sealed and Lubricated Track chains, offered as standard, significantly extend overall longevity. The equalizer bar with rubber pads and pivot shaft are pinned to the tubular track roller frame to minimize impacts and extend undercarriage life. The wet multi-disc brake system, with two brakes per side, delivers high reliability and strong braking performance, even in challenging operating conditions.

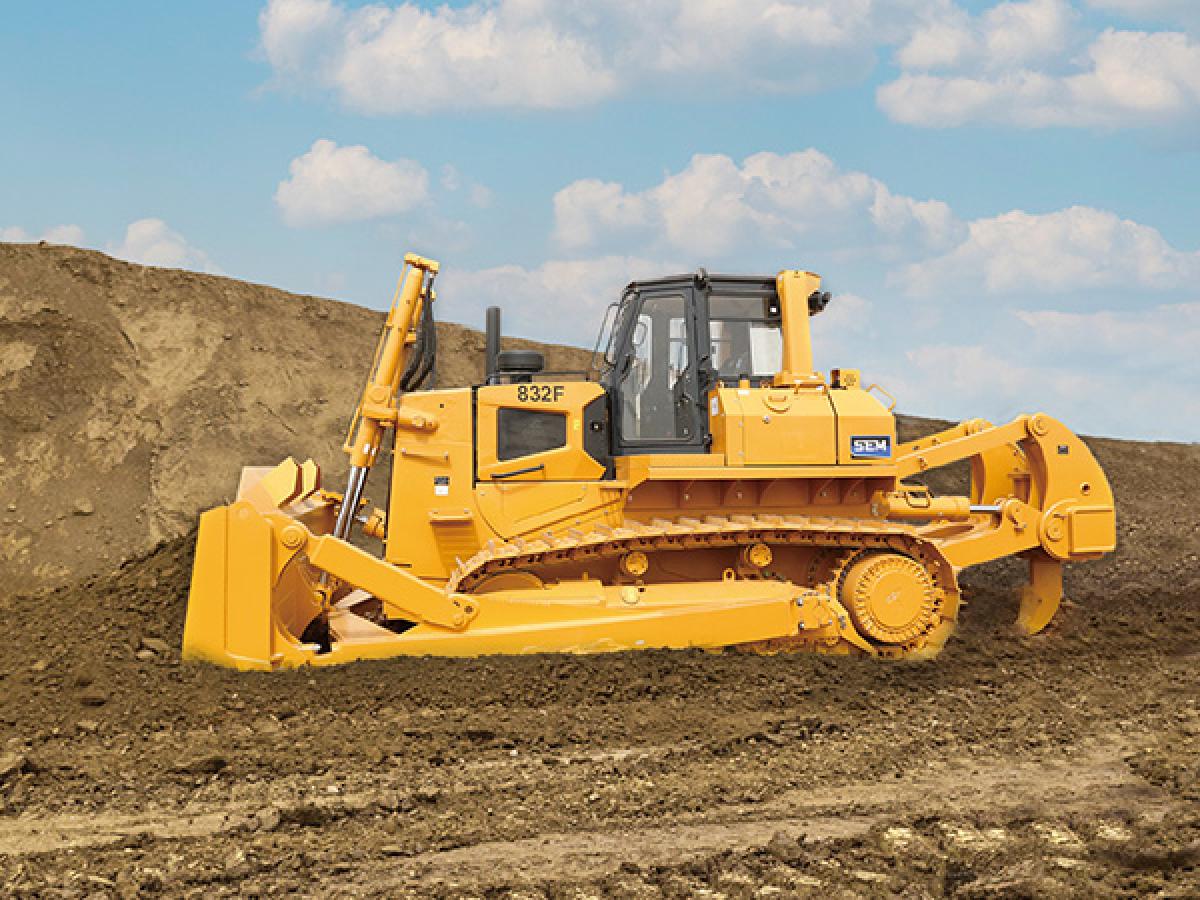

Outstanding Versatility and Productivity

Compared with powershift machines, Caterpillar’s proven hydrostatic transmission load-sensing system delivers higher productivity. Infinitely variable speed, counter-rotation and power turn functions enable smooth and efficient operation. The double-pump confluence hydraulic system and quick-drop valve reduce cycle time while minimizing fuel consumption. The modular single-plane cooling system, combined with a hydraulic demand fan driven by a piston pump, can operate in extreme ambient temperatures from -40°C to +50°C while delivering excellent fuel efficiency.

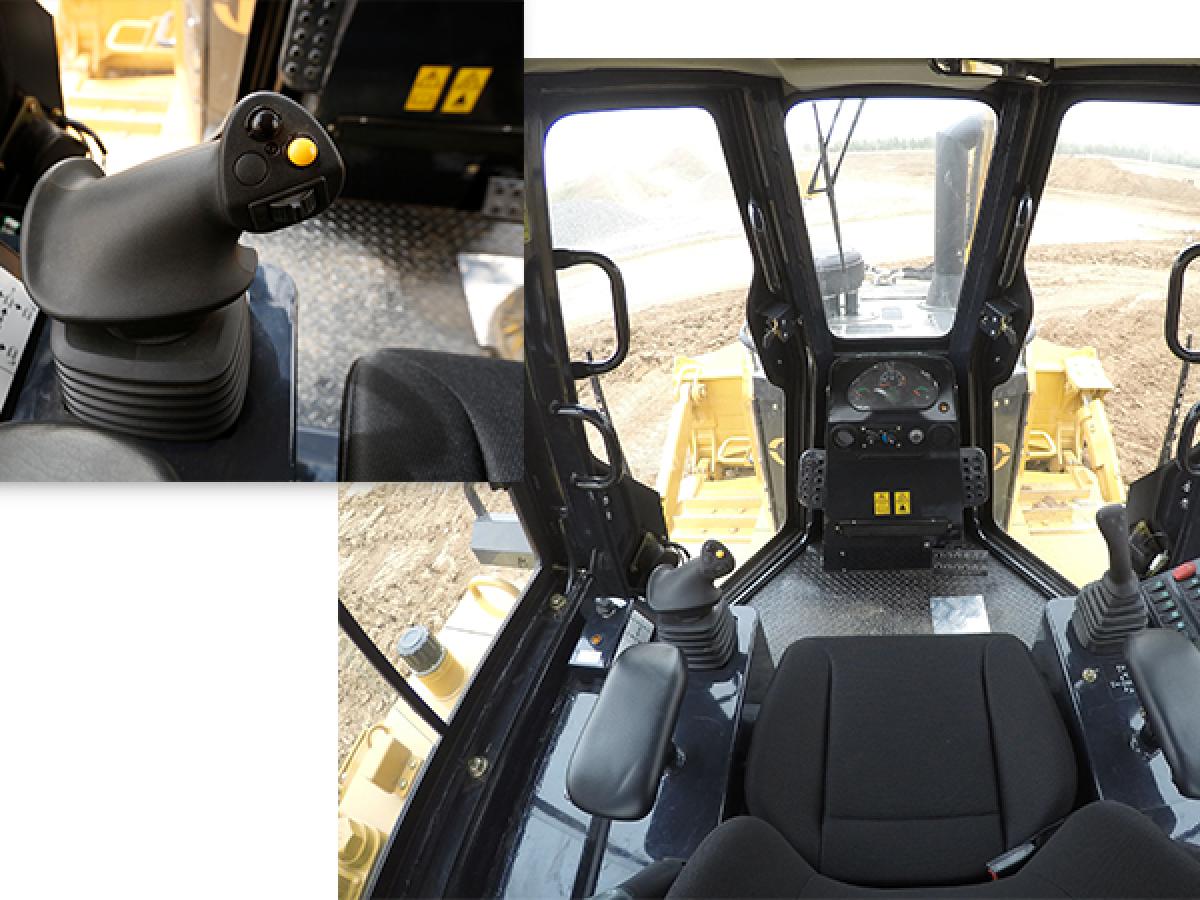

Enhanced Operating Comfort

The spacious cabin and fabric-covered seat provide a welcoming working environment with excellent comfort and visibility. The multifunction joystick ensures precise performance and maneuverability. The brand-new F Series design brings a modern appearance, while exceptional visibility improves on-site awareness.

Outstanding Versatility and Productivity

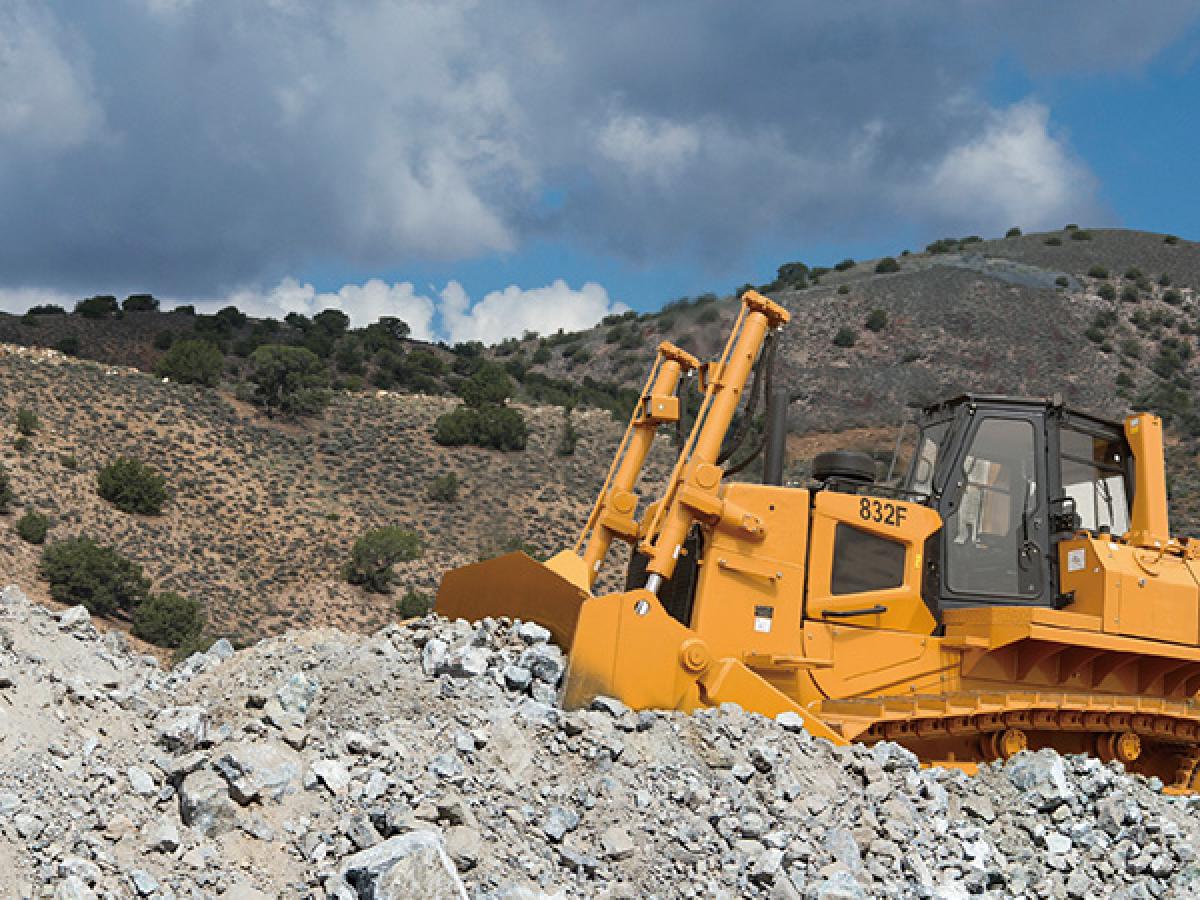

Leading in Class Serviceability

Maintenance-free, lifetime-lubricated idlers, track rollers and carrier rollers simplify servicing and provide real value to customers. The implement distribution valve, equipped with a pressure testing port, is installed outside the hydraulic oil tank for easier access and reduced maintenance time. Diagnostic codes covering both the engine and hydrostatic system allow quick troubleshooting.

Product Specifications for 832F

Model
- Model832F
- ConfigurationSTDDSCHWH
Main Specifications
- Operating Weight with SU blade and ripper38,710 kg39,390 kg39,455 kg40,110 kg
- Ground Pressure (GB/T 30965)83 kPa / 77 kPa63 kPa78 kPa64 kPa
- Minimum Ground Clearance, excluding grouser height370 mm
- Gradeability30°
Engine
- Engine Model1706D-E93TA
- Advertised Power (ISO 14396)253 kW / 339 hp
- Rated Speed2,200 r/min
Powertrain
- Transmission TypeDual-path, closed-loop electronically controlled hydrostatic drive system
- Travel Speeds - Forward and ReverseInfinitely variable speeds 0-11 km/h
- Steering and BrakeHydrostatic steering; wet, multi-disc brake, Belleville spring actuated and hydraulically released
Implement Hydraulic
- TypeDouble pump confluence, pilot control
- System Pressure20 MPa
- Pump TypeGear pump

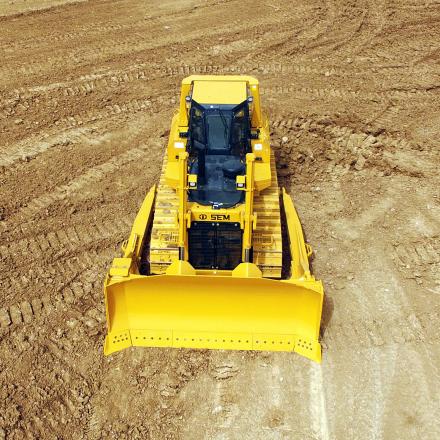

Blades
- Blade TypeSUSCoalS-WH
- Blade Capacity (ISO 9246)9.6 m³7.8 m³12.9 m³18.6 m³
- Blade Width with End Bit4,180 mm4,290 mm4,760 mm4,335 mm
- Blade Height1,710 mm1,590 mm1,710 mm2,350 mm
- Blade Lifting Height1,206 mm
- Blade Digging Depth558 mm
- Blade Tilt Height (Middle Hole)905 mm930 mm1,030 mm945 mm
- Blade Weight without Push Arm3,020 kg2,840 kg3,550 kg3,300 kg
- Minimum Turning Radius4,590 mm4,475 mm4,990 mm4,485 mm

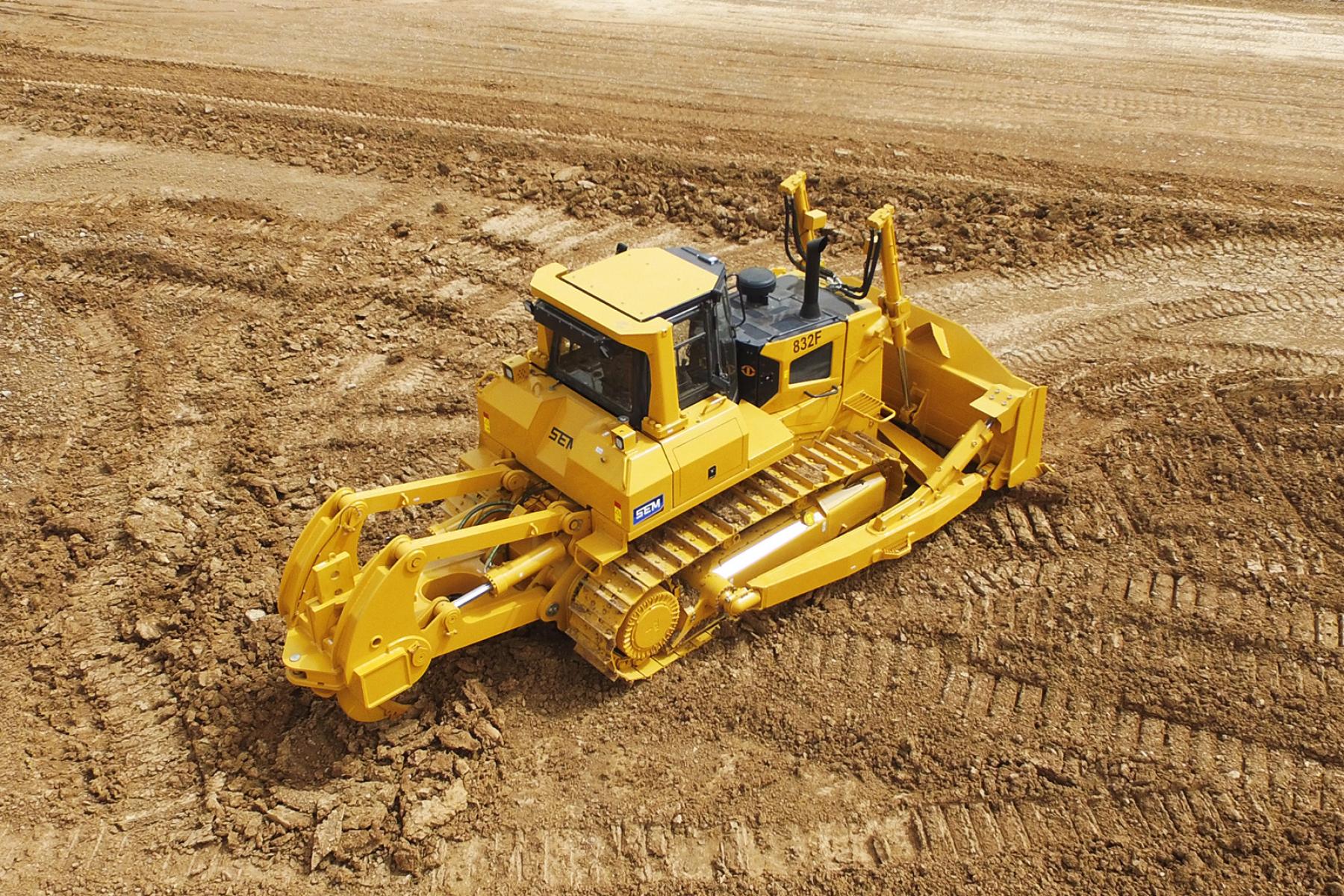

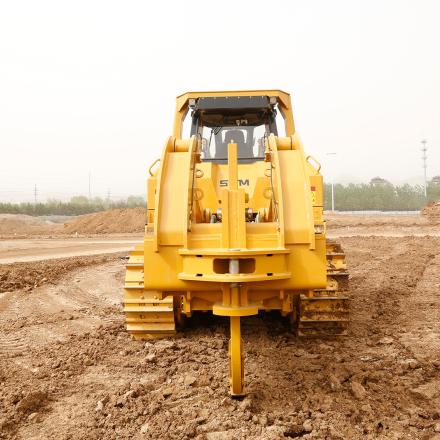

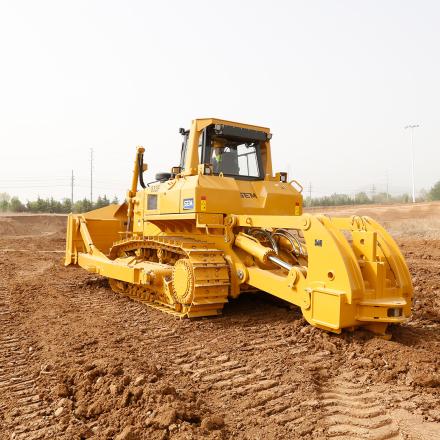

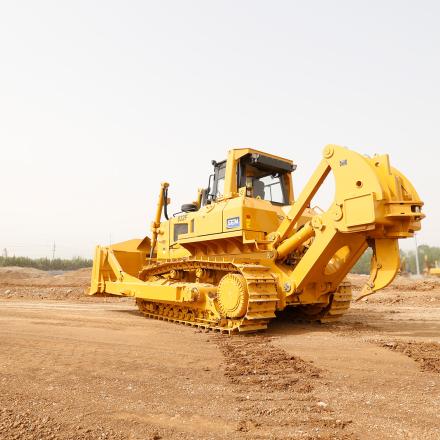

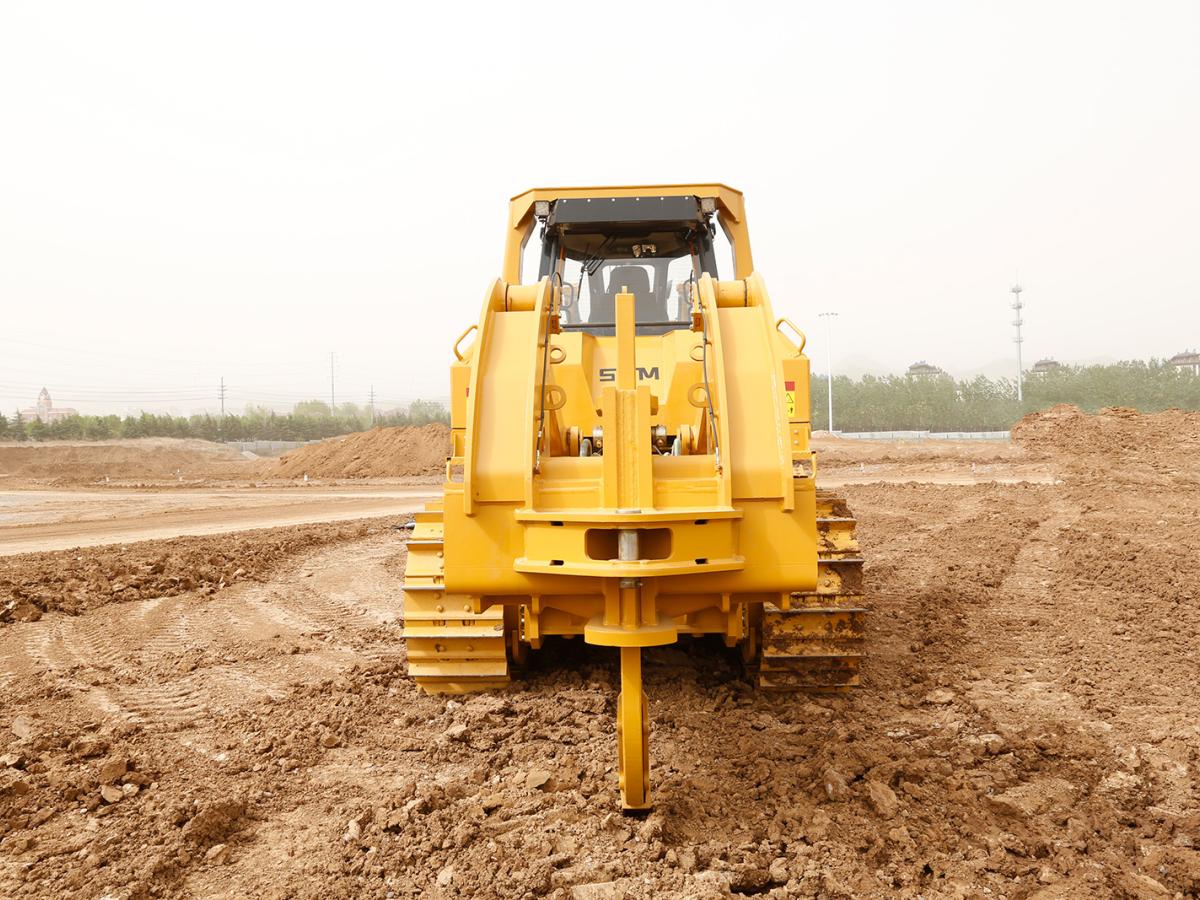

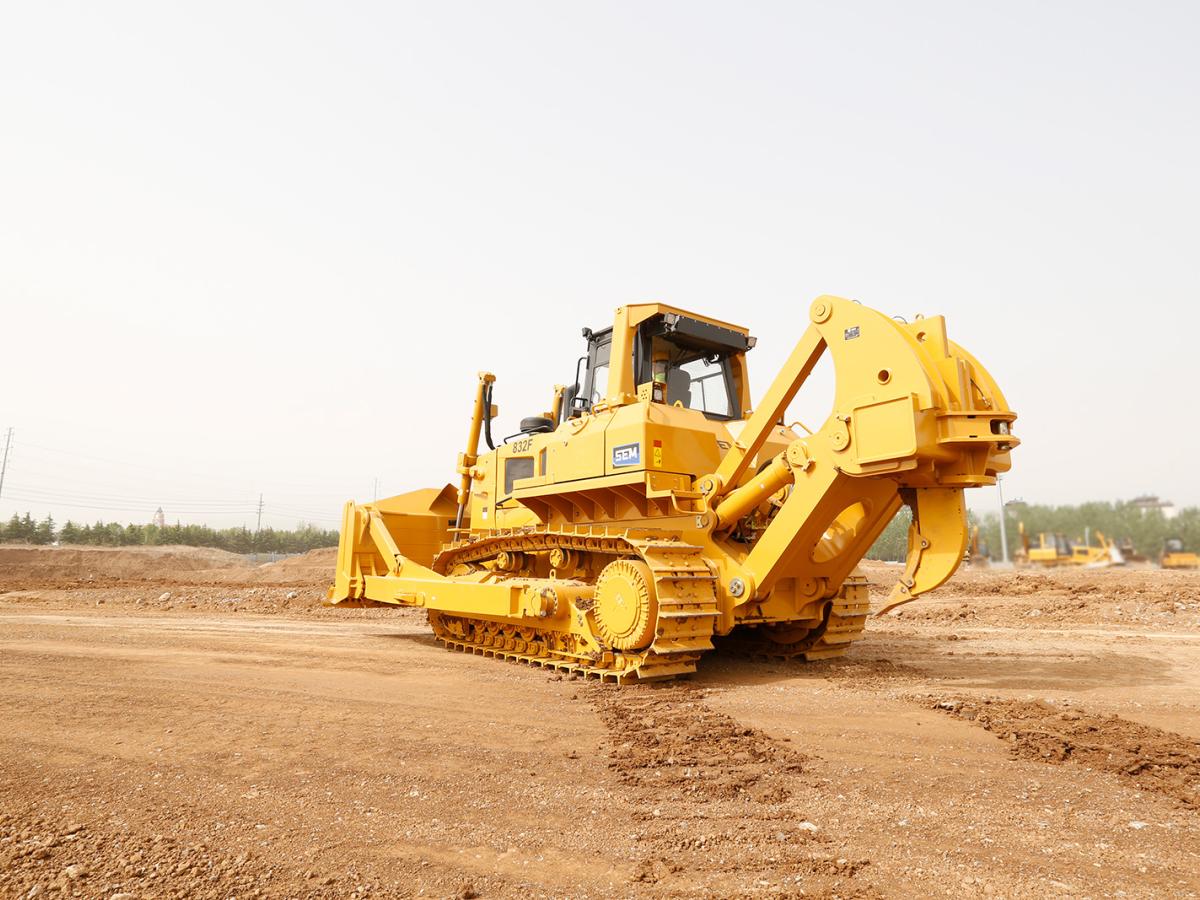

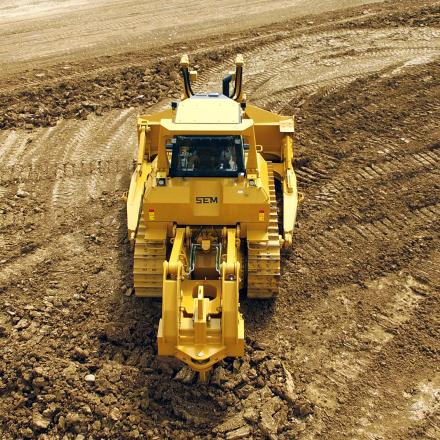

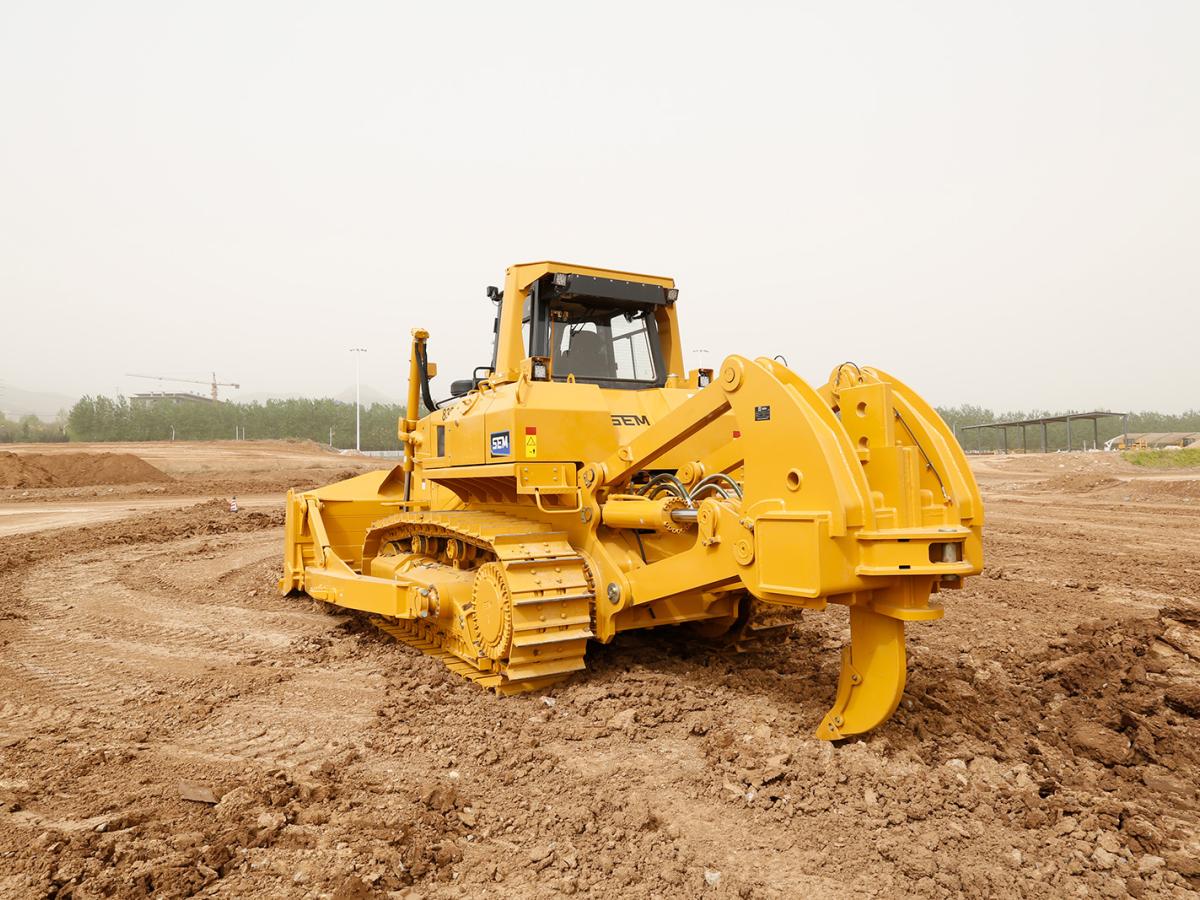

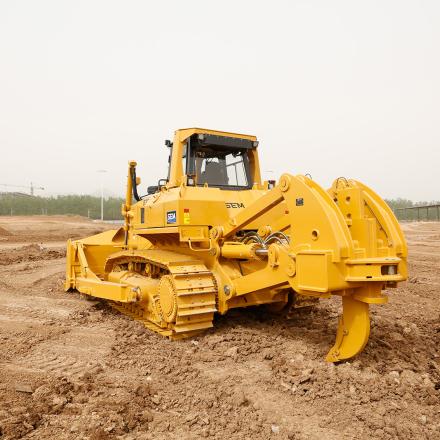

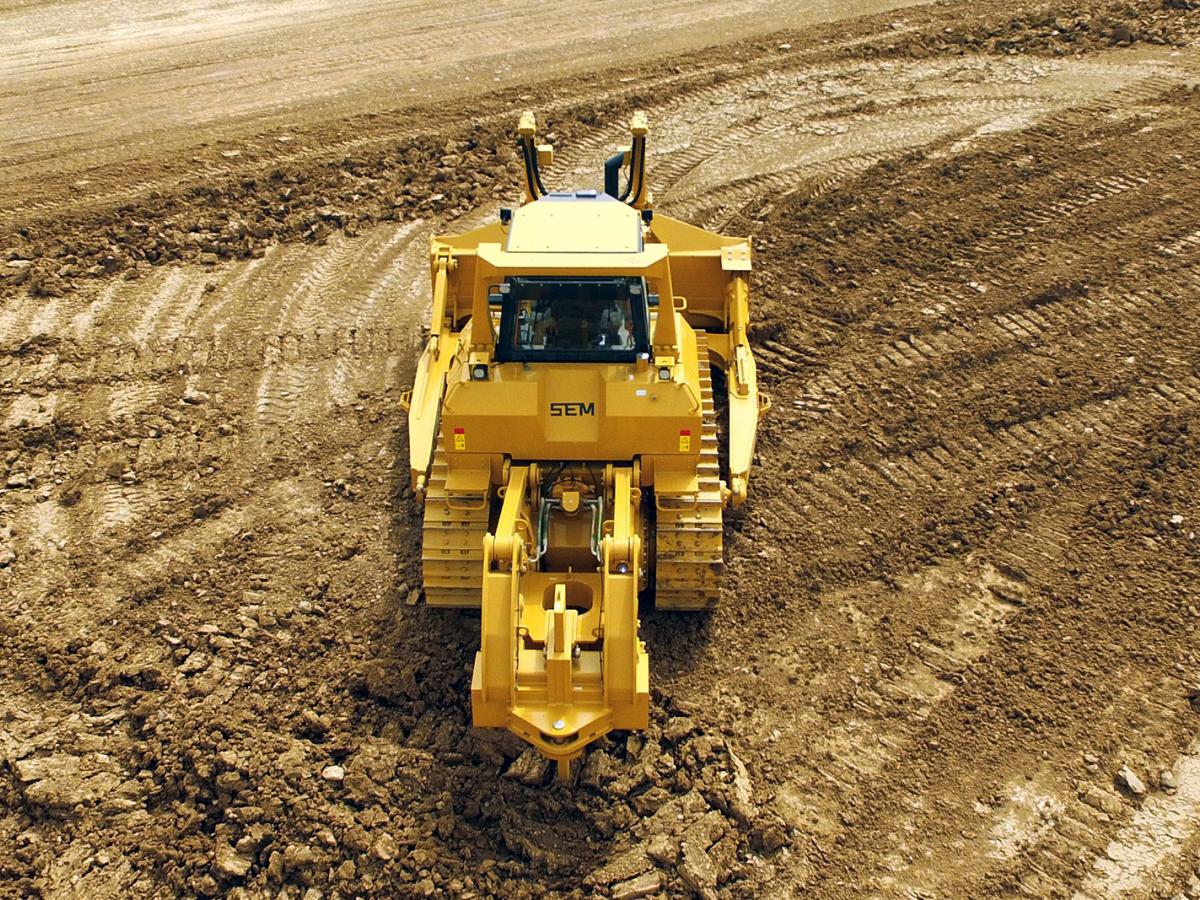

Single Shank Ripper
- TypeParallelogram, no pitch adjustment
- Maximum Penetration, shank pinned in the top hole1,216 mm
- Maximum Clearance Under Tip, shank pinned in the bottom hole812 mm
- Ripper Weight4,160 kg
Undercarriage
- Track Shoe Width560 mm / 610 mm760 mm610 mm760 mm
- Track Shoes Number, each side41
- Track Rollers Number, each side7
- Carrier Roller Number, each side2
