SEM^™ 818F

Key Information

Category Track-type tractors

Operating Weight 16,950 kg

Ground Pressure 57 kPa

Ground clearance 400 mm

Request a Quote

Overview
Specifications
Media Gallery
Quote

Key Features

Overview

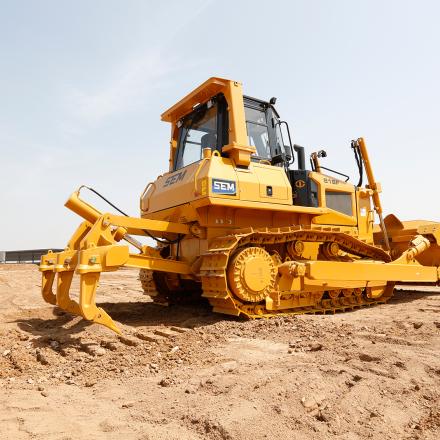

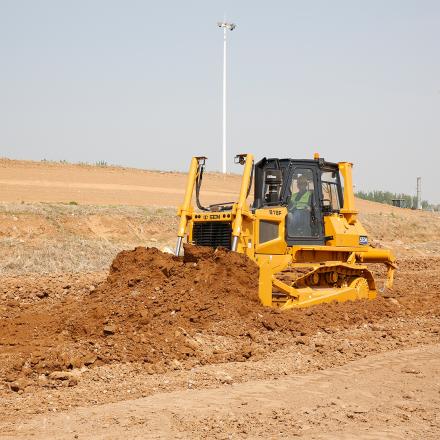

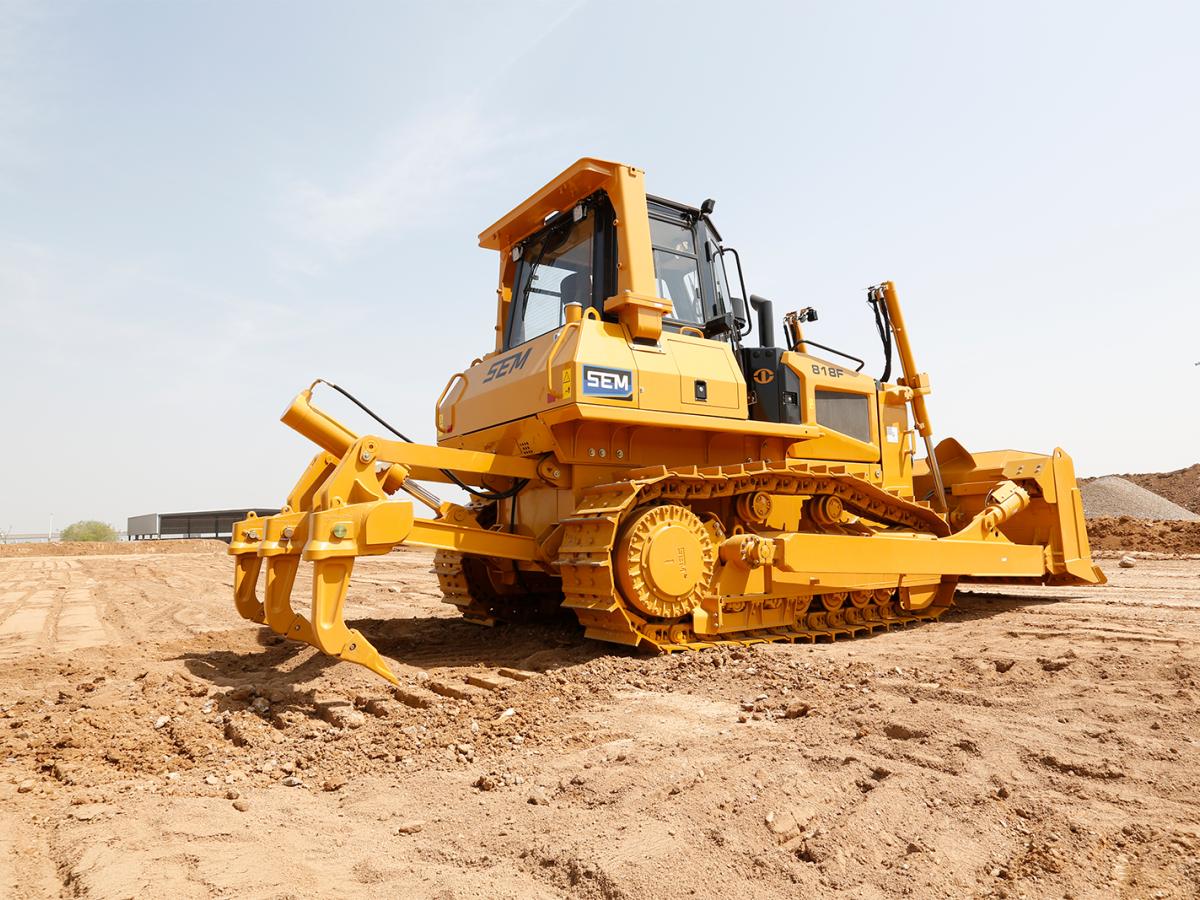

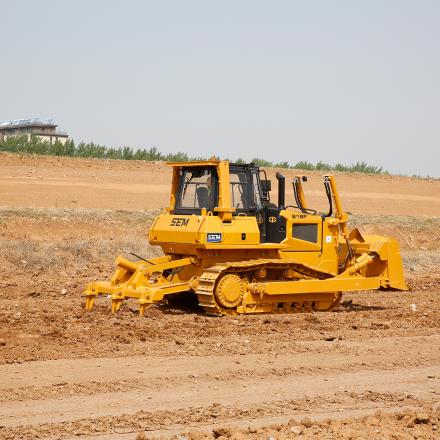

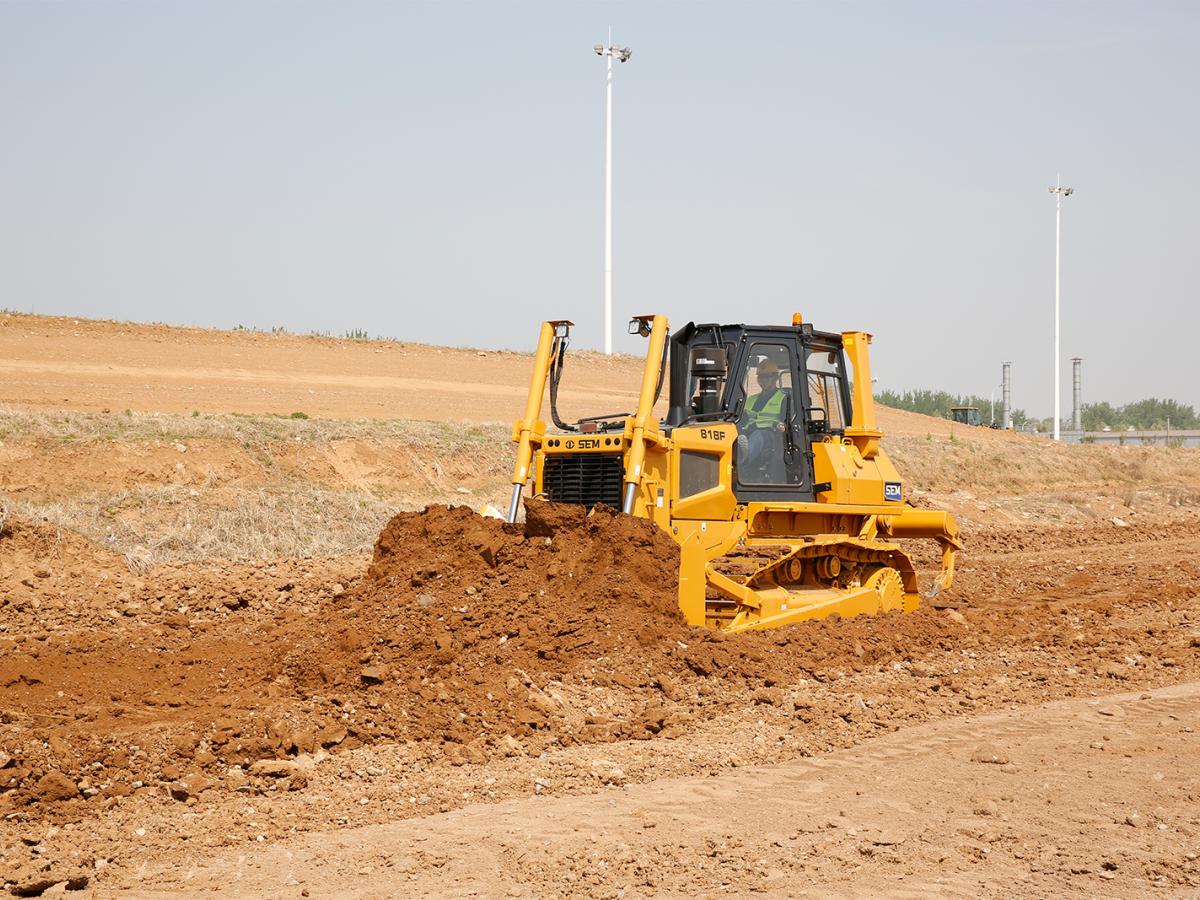

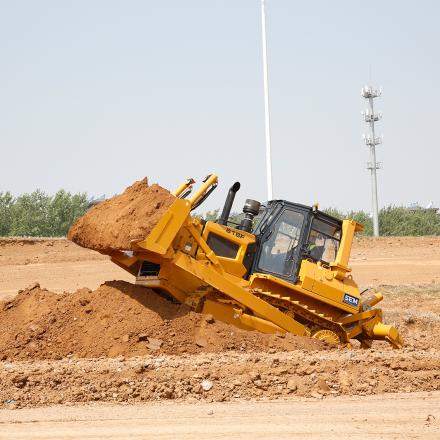

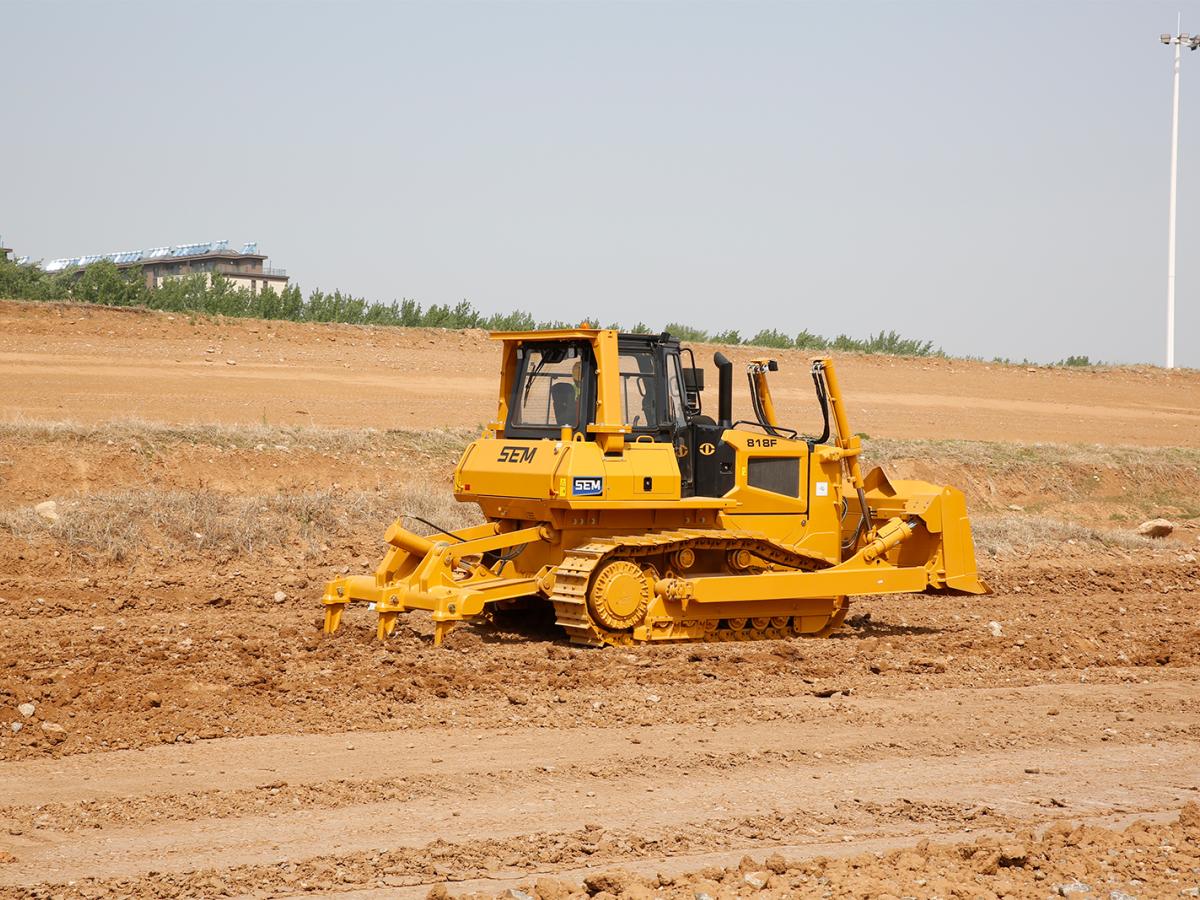

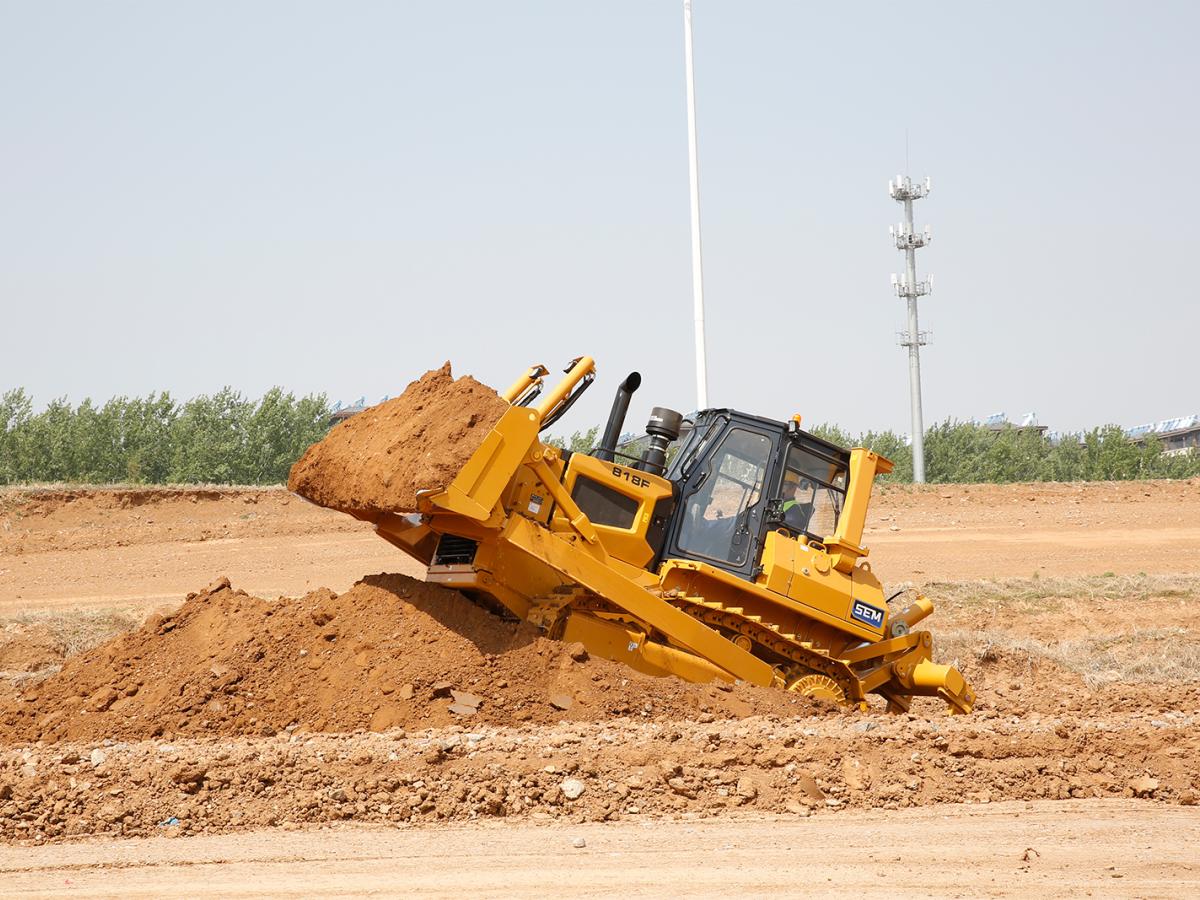

The SEM 818F is a track-type tractor designed for dozing, grading, stockpiling, material spreading and ripping. It meets the needs of general and heavy construction, road construction, mining, coal handling and agriculture applications.

Equipped with a Weichai WD10 engine delivering up to 140 kW / 190 hp and an electronically controlled hydrostatic transmission system, the 818F combines power, maneuverability and productivity. Its F Series design, multiple track shoe widths, various blade configurations and multi-shank ripper allow it to adapt to a wide range of working environments.

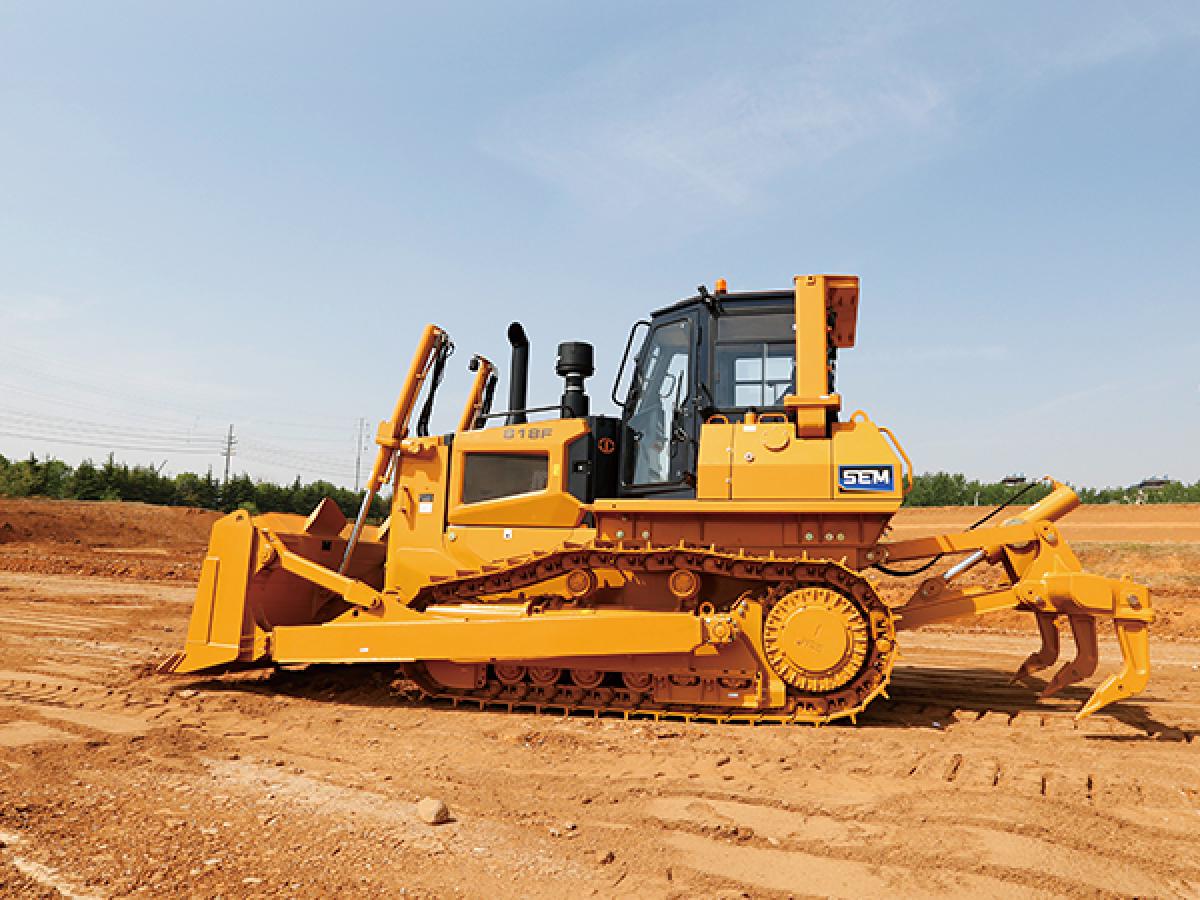

Proven Performance

The fully hydrostatic transmission helps boost productivity. Counter-rotation, power turn and infinitely variable speed improve maneuverability and efficiency. The larger fuel tank extends operating hours, while optimized center-of-gravity weight distribution improves balance and stability. The robust and more powerful mechanical engine delivers superior durability and excellent fuel efficiency.

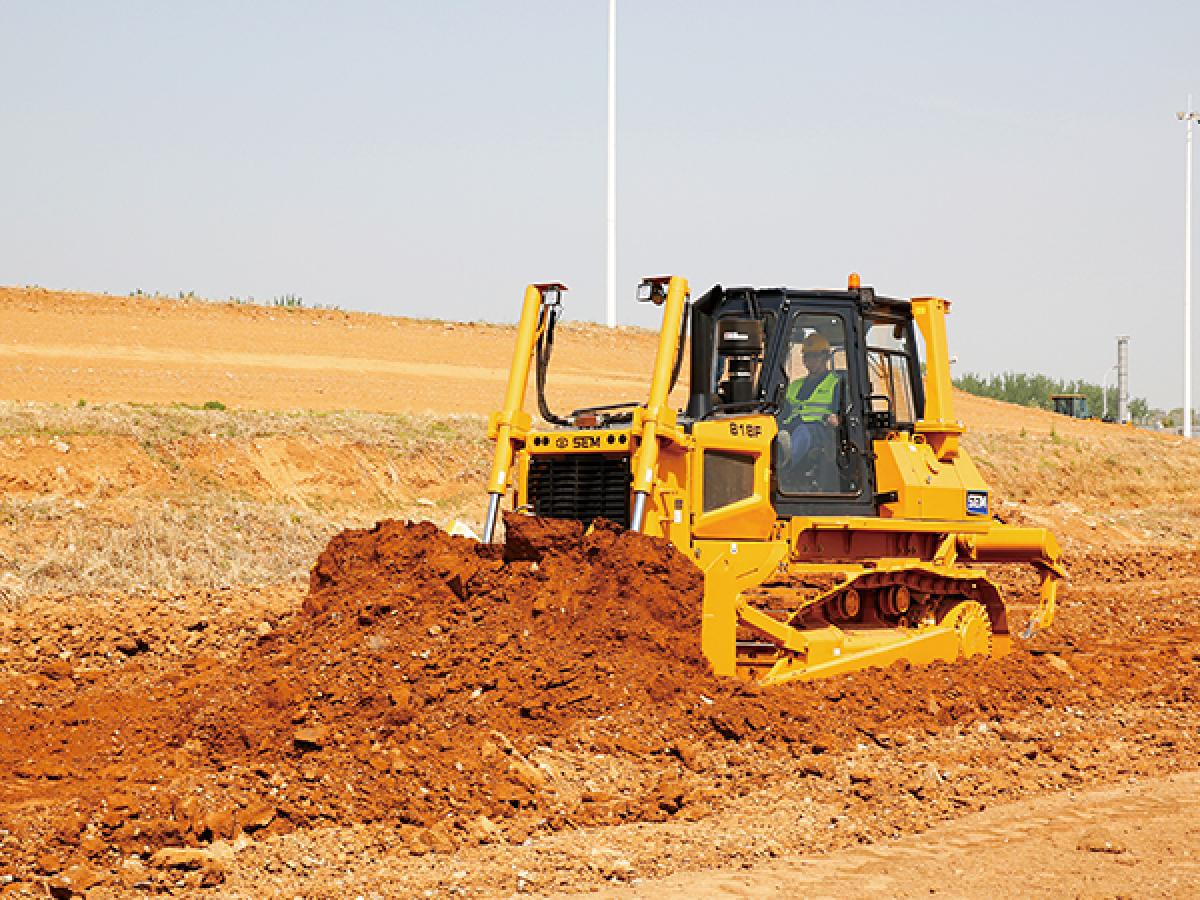

Comfortable Operation

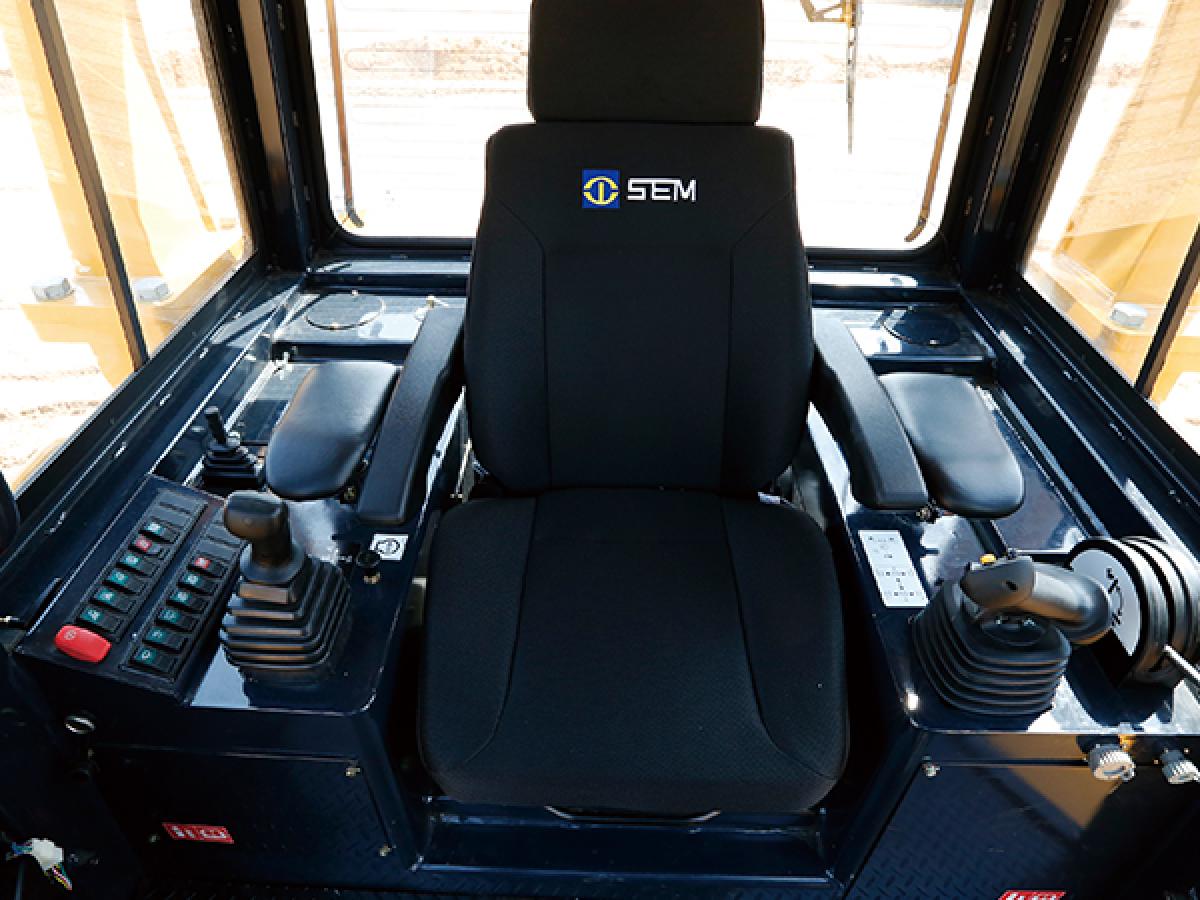

The spacious cab with easy-to-operate controls improves operator comfort. The stylish new F Series design, six-way adjustable seat, exceptional visibility and 8-inch main display allow the operator to easily view machine settings and features.

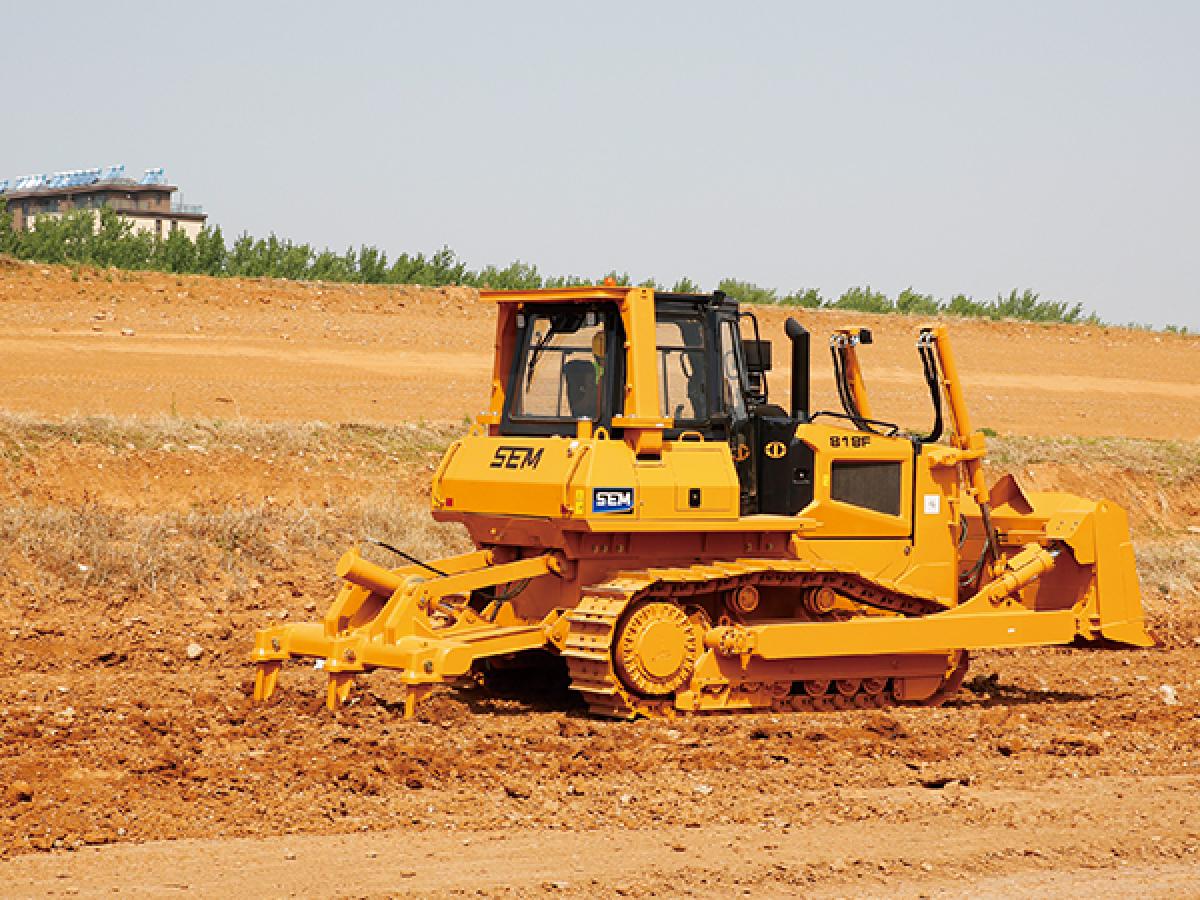

Exceptional Reliability

World-class original pumps and motors, blades made from high-tensile-strength steel with strong box-section design and structures analyzed using Finite Element Analysis all contribute to machine reliability. The final drive with double-stage reduction and wet-type brake, together with the modular cooling system designed to withstand ambient temperatures from -40°C to +48°C, further enhance durability in demanding environments.

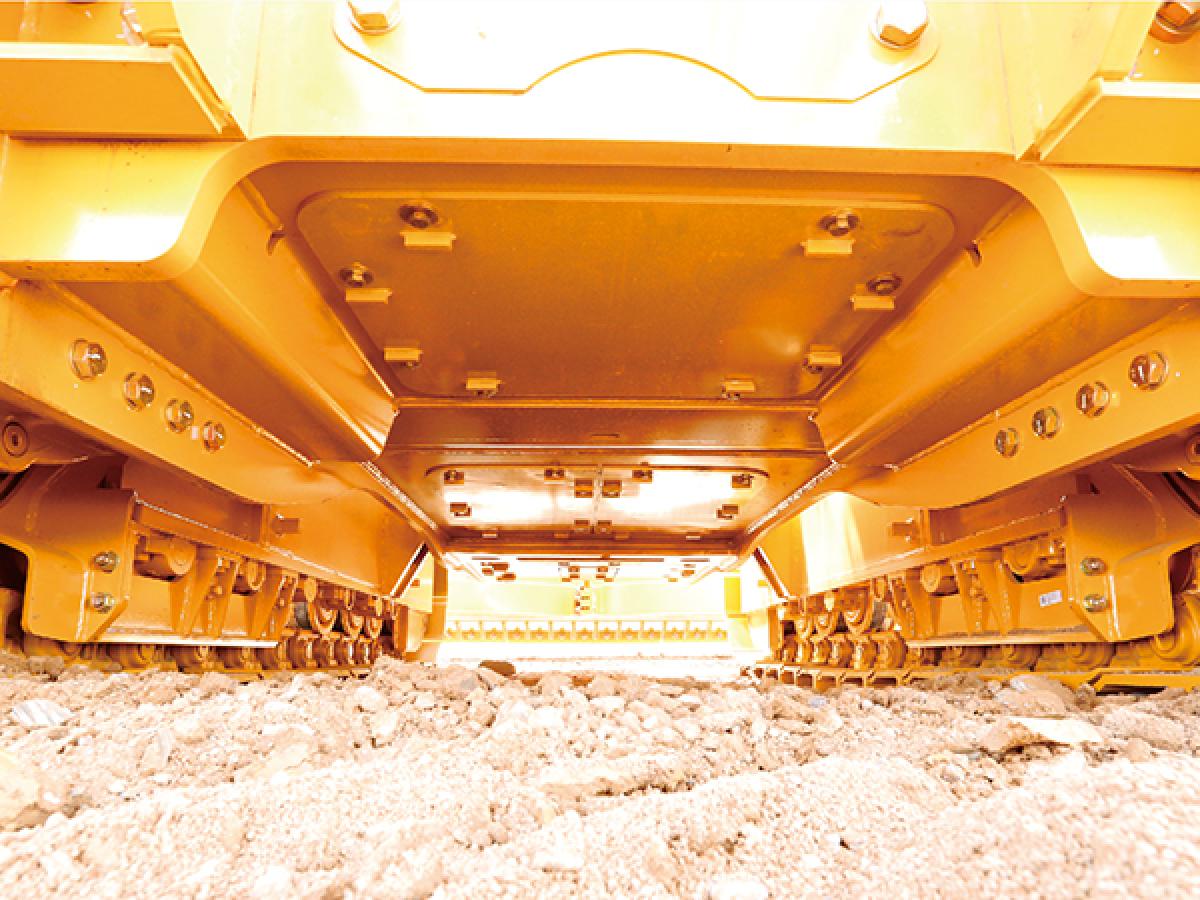

Enhanced Reliability

The dual-path hydrostatic drive system, using electronic control technology from a world-class supplier, delivers industry-leading reliability. The Weichai mechanical engine, with 7% increased power, provides durability and dependability. The final drive combines double-stage reduction, spur gears and a planetary structure to improve transmission efficiency and service life. Machine structures are analyzed using FEA and OMSA to identify and reinforce high-stress areas. The equalizer bar, pivot shaft, one-piece track roller frame, segmented spring recoil system and wet multi-disc brakes contribute to reliability and braking performance.

Outstanding Versatility and Productivity

Compared with powershift machines, Caterpillar’s proven electronic load-sensing system improves productivity. Infinitely variable speed, counter-rotation and power turn functions ensure smooth and efficient operation. The pilot-controlled implement hydraulic system improves operator comfort and precise control. The modular single-plane cooling system can operate in extreme ambient temperatures from -40°C to +48°C while contributing to fuel efficiency. The 410 L fuel tank extends operating time to 2 to 3 working shifts.

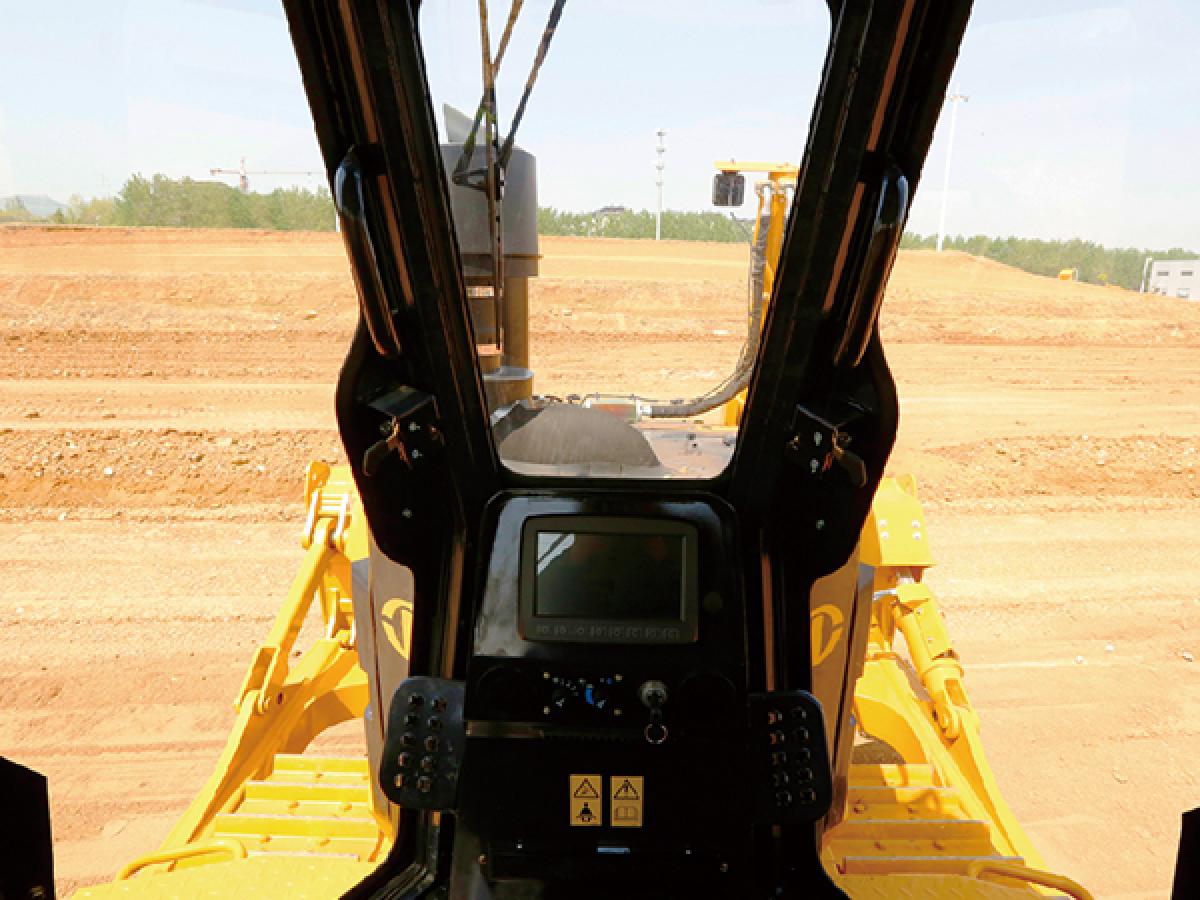

Enhanced Operating Comfort

The spacious cabin and fabric-covered seat provide a welcoming working environment with excellent comfort and visibility. The single multifunction joystick ensures precise performance and maneuverability. The brand-new F Series design brings a modern appearance, while the 8-inch LCD main display makes machine settings and features easy to view. Exceptional visibility improves on-site awareness.

Lower Operation Cost

The integrated hydrostatic oil tank and hydraulic oil tank allow longer maintenance intervals and reduced maintenance costs. The Electric Pressure Override, EPOR, function prevents high-pressure overflow and reduces heat load.

Leading in Class Serviceability

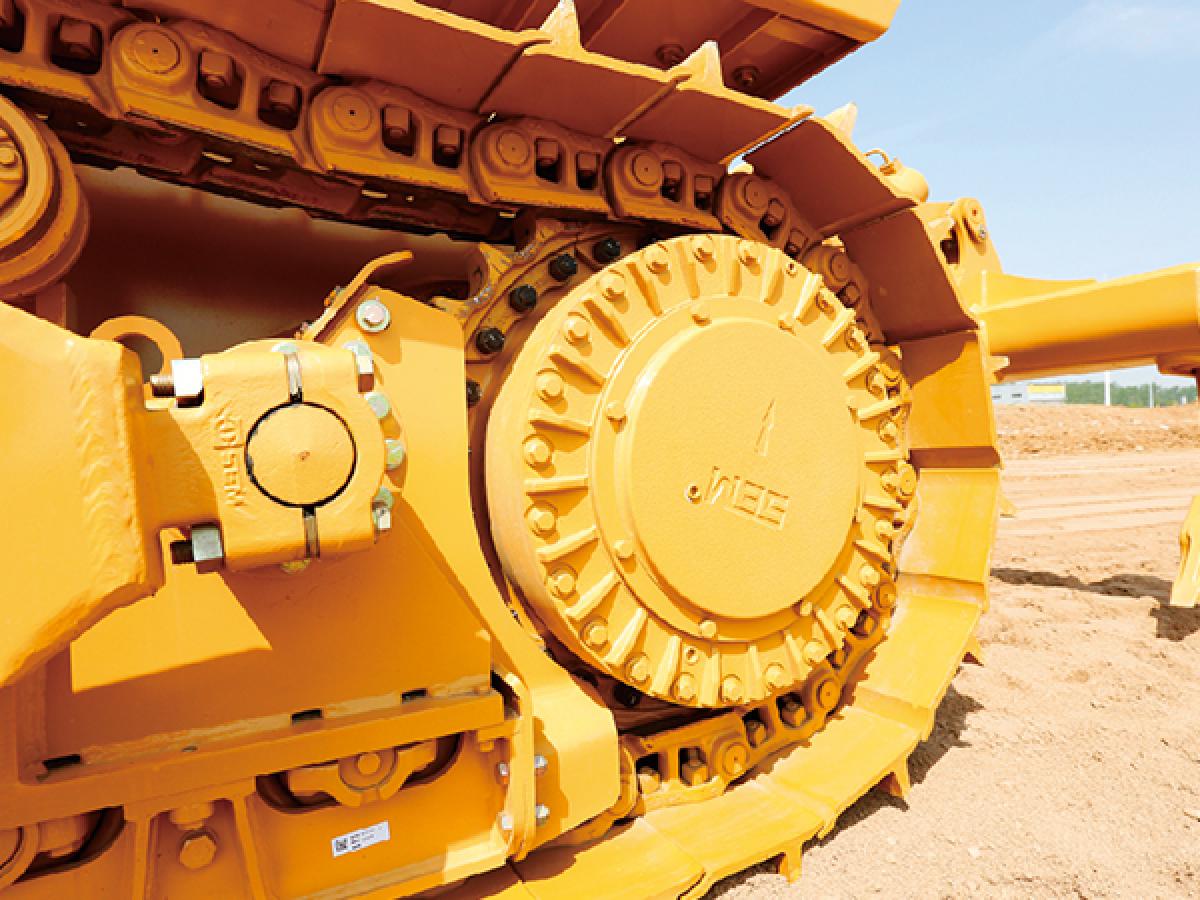

Maintenance-free, lifetime-lubricated idlers, track rollers and carrier rollers simplify servicing. The implement distribution valve, equipped with a pressure testing port, is installed outside the hydraulic oil tank for easier access and reduced maintenance time. The standard diagnostic display, covering both the engine and hydrostatic system, allows quick troubleshooting.

Product Specifications for 818F

Model
- ModelSTD
Main Specifications
- Operating Weight16,950 kg
- Ground Pressure57 kPa
- Ground Clearance400 mm
- Max. Slope30°
Engine
- Engine ModelWD10G190E214
- Gross Power (ISO 14396)140 kW / 188 hp
- Rated Speed1,900 r/min
Powertrain
- TypeDual-path, closed-loop electronically controlled hydrostatic drive system
- Travel Speed F/RInfinitely variable speed: Forward 0-8 km/h, Reverse 0-10 km/h
- Steering & BrakeHydrostatic steering; wet, multi-disc brake, Belleville spring actuated and hydraulically released

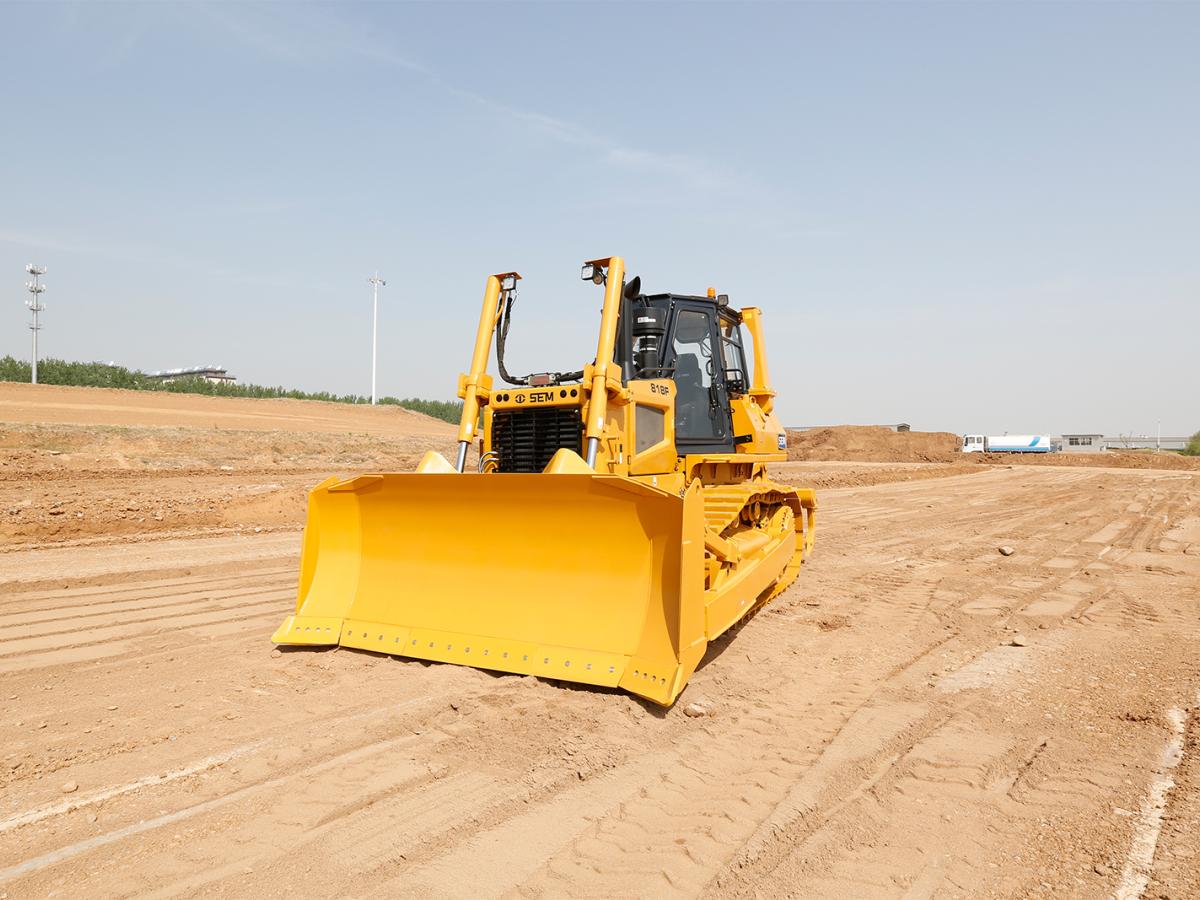

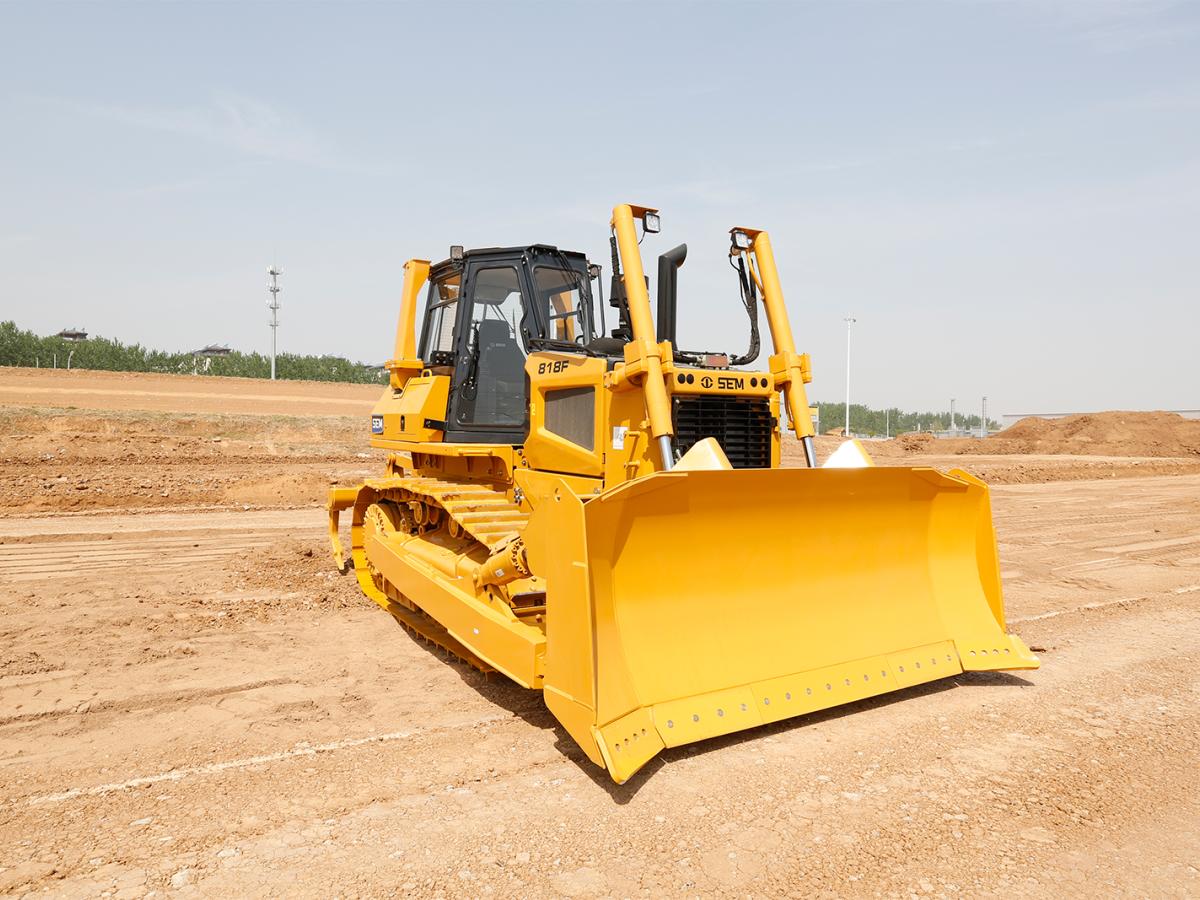

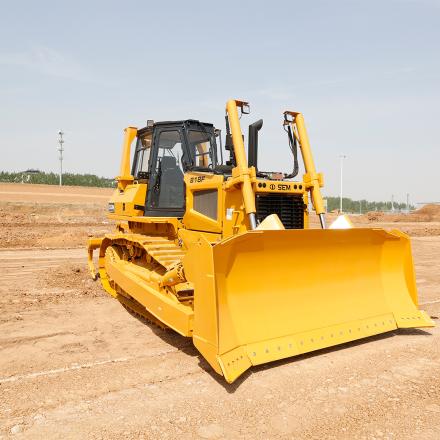

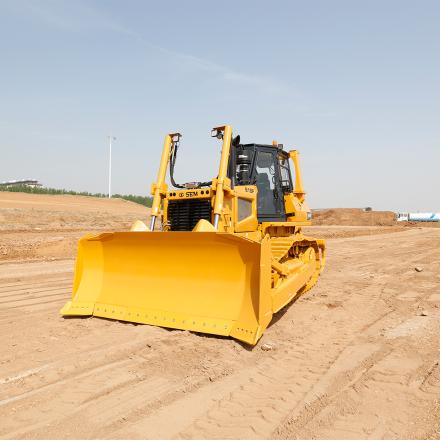

Blades
- Blade TypeSU/S
- Blade Capacity (ISO 9246)4.3 / 3.5 m³
- Blade Width with End Bit3,167 / 3,460 mm
- Blade Height1,240 / 1,165 mm
- Max. Blade Lift Ground Clearance1,005 mm
- Max. Blade Digging Depth415 mm
- Blade Tilt Height (Middle Hole)487 / 539 mm
- Blade Weight without Push Arm1,160 / 1,130 kg
- Minimum Turning Radius3,700 mm
Undercarriage
- Track Shoe Width510 mm
- Track Shoe Quantity, each side37
- Track Roller Quantity, each side6
- Carrier Roller Quantity, each side2
Hydraulic System
- TypeGear pump, pilot control
- Implement Hydraulic System Pressure19 MPa

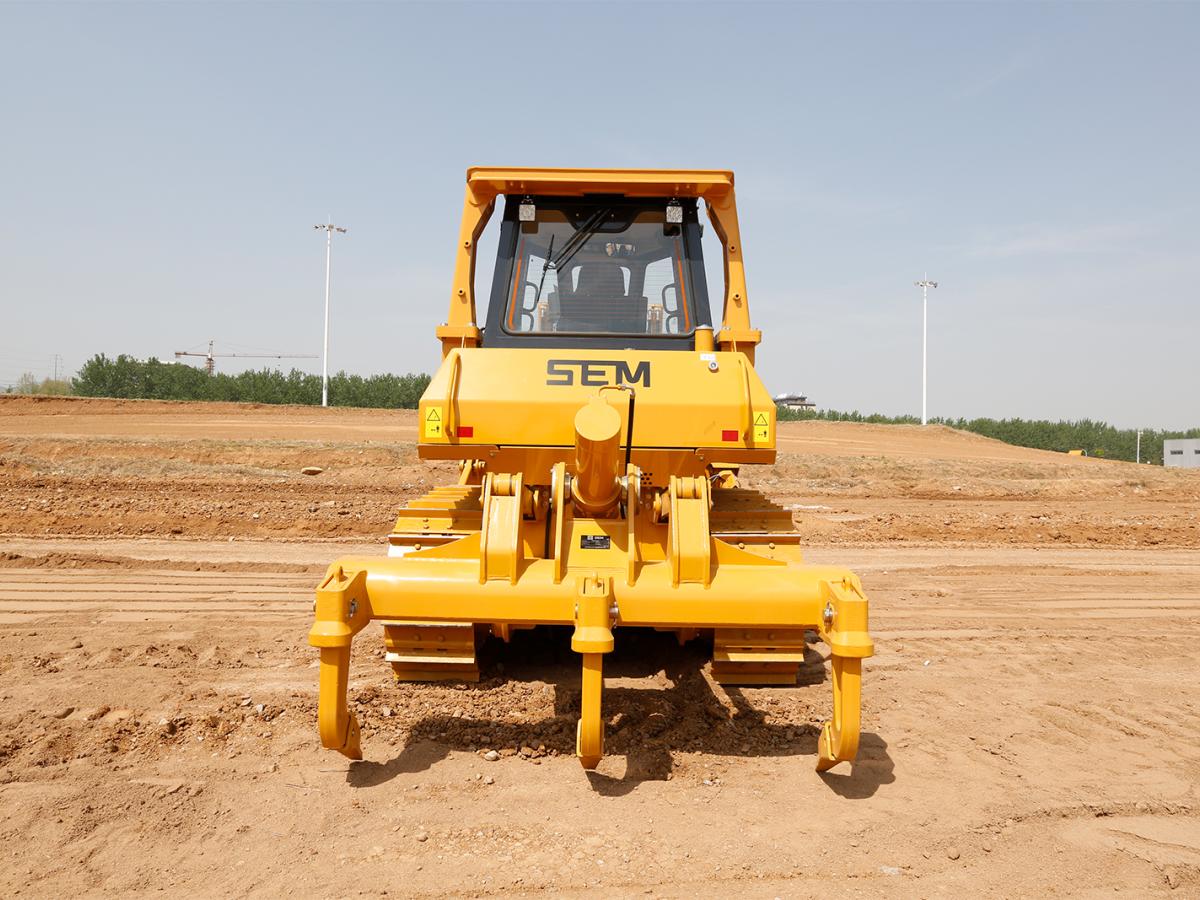

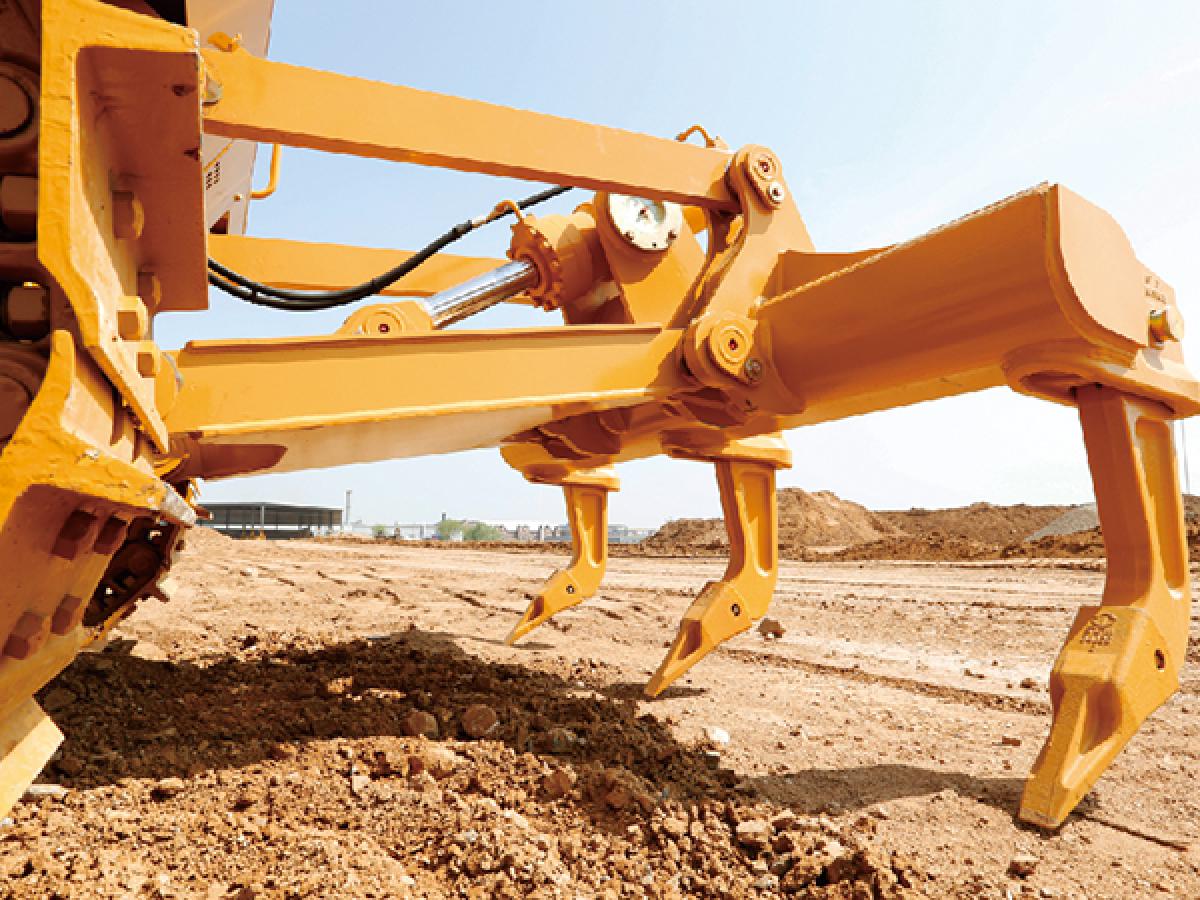

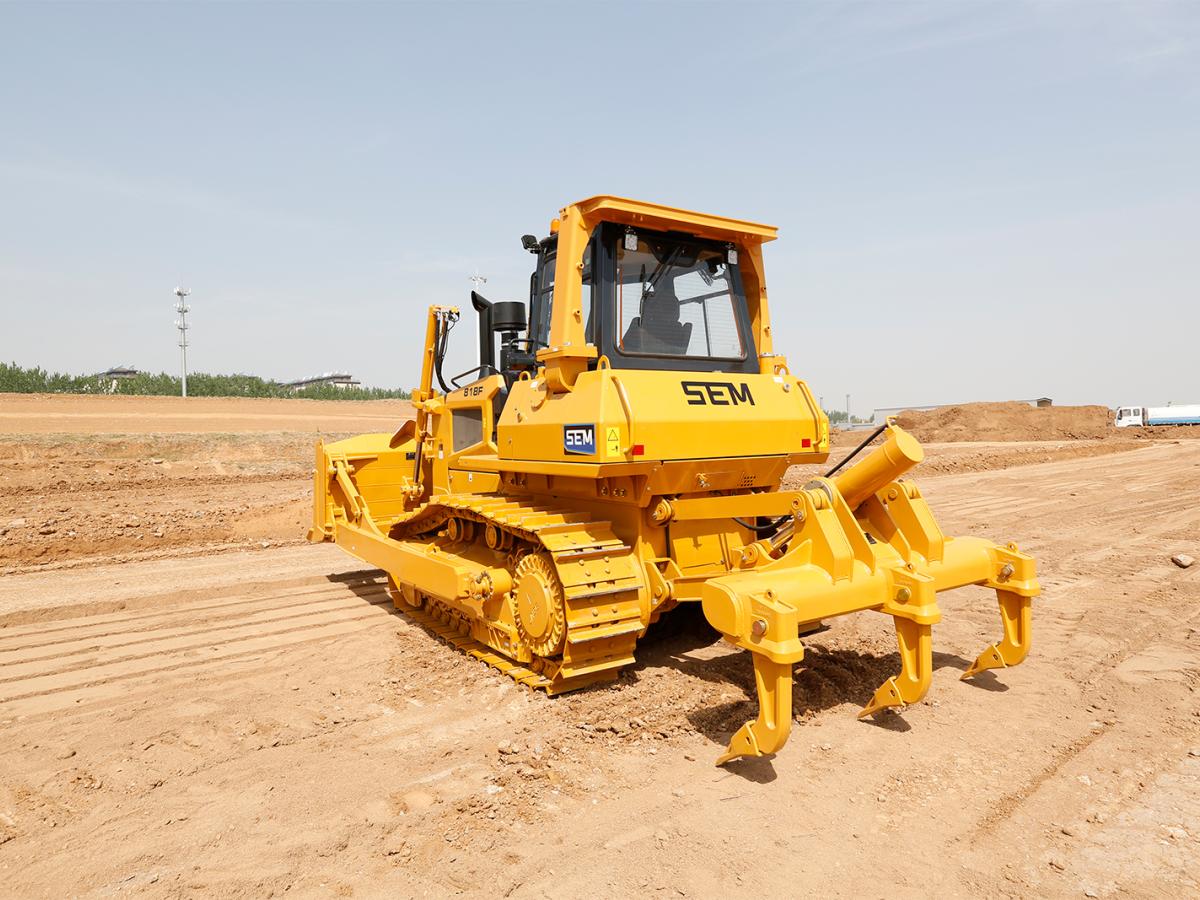

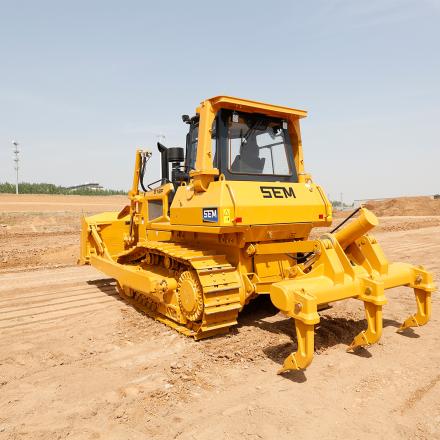

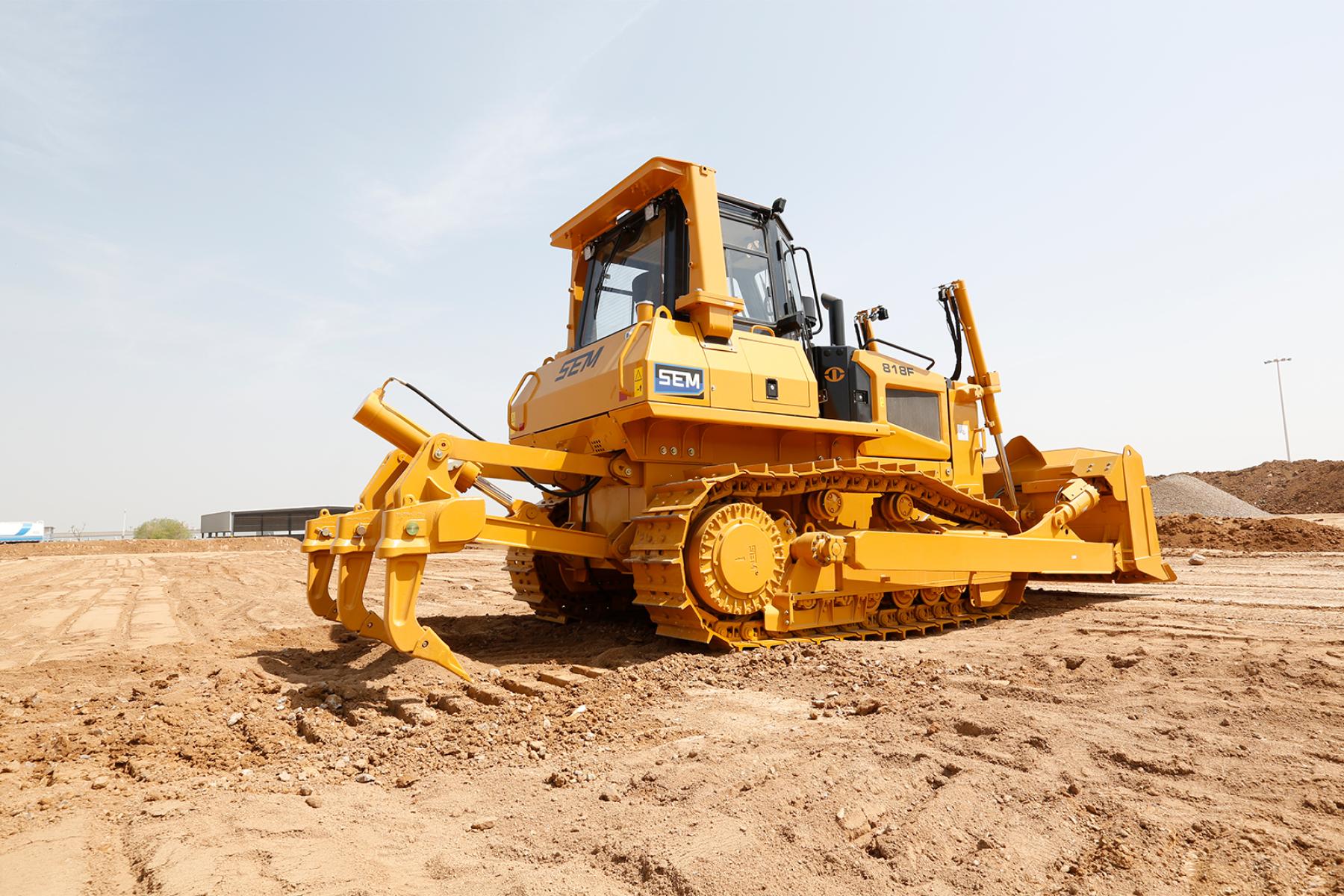

Multi Shank Ripper
- TypeParallelogram, no pitch adjustment
- Maximum Penetration (Top Hole)590 mm
- Maximum Clearance Under Tip (Bottom Hole)590 mm
- Weight1,434 kg
